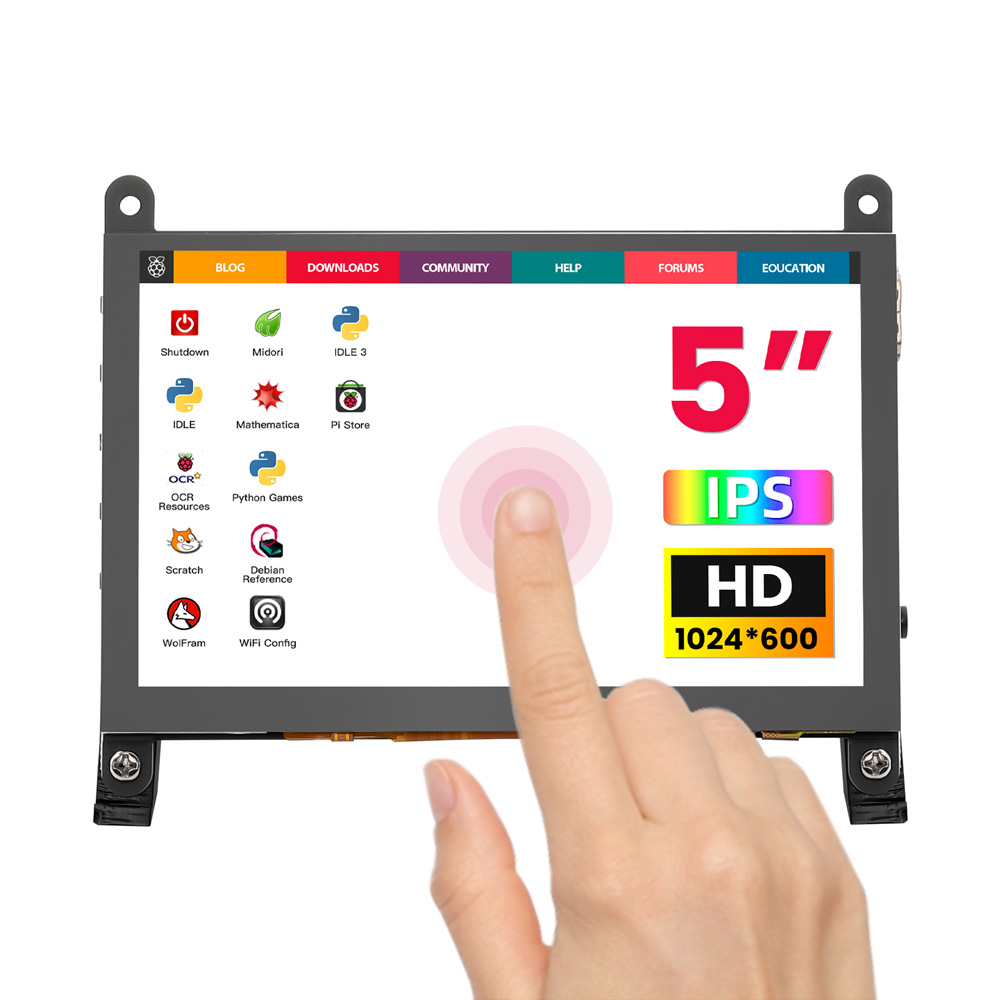

5inch IPS HD Display-C 10240*600 Touch Screen Compatible with Raspberry Pi/BB Black, etc
$32.90
Availability:
In stock
SKU
DLH04950B
Weight
300g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought
[High-Definition IPS] 5-inch 1024×600 full-view IPS screen, delivering true-to-life and delicate colors.

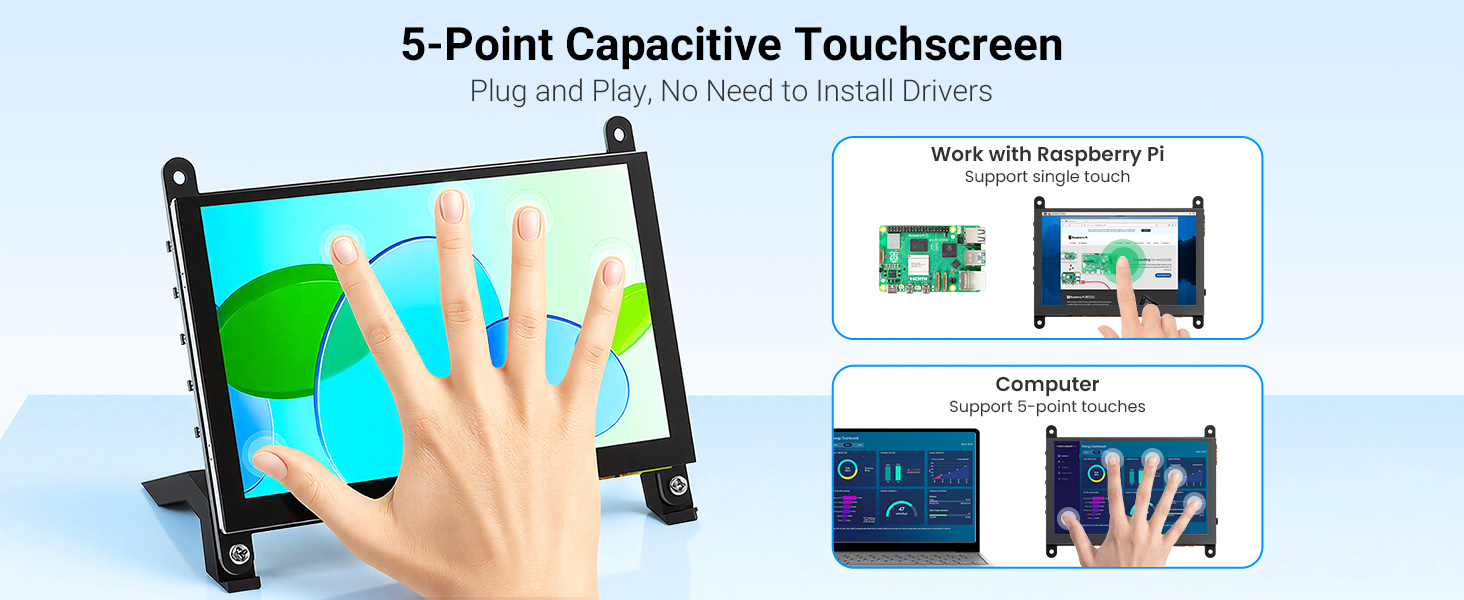

[5-Point Touch] Capacitive touch, driverless USB, sensitive and convenient operation.
[Raspberry Pi Screen, Plug and play, driver-free] It can be used as a Raspberry Pi screen, compatible with mainstream mini PCs such as Raspberry Pi 5, 4, 3 B+, BB Black, Banana Pi, and Jetson Nano, and it is plug and play.
[Wide Compatibility] Compatible with Raspberry Pi, Windows 7/8/10/11 systems, and game consoles such as PS4 and Xbox, offering multiple uses in one screen.
[Professional Features] It features a headphone jack, an OSD menu for adjusting brightness and contrast, USB software dimming, and FPC expansion to meet professional needs.
[Superior Quality] CE and RoHS certifications ensure quality and safety.
Send B2B inquiries to info@elecrow.com
Frequently Bought Together

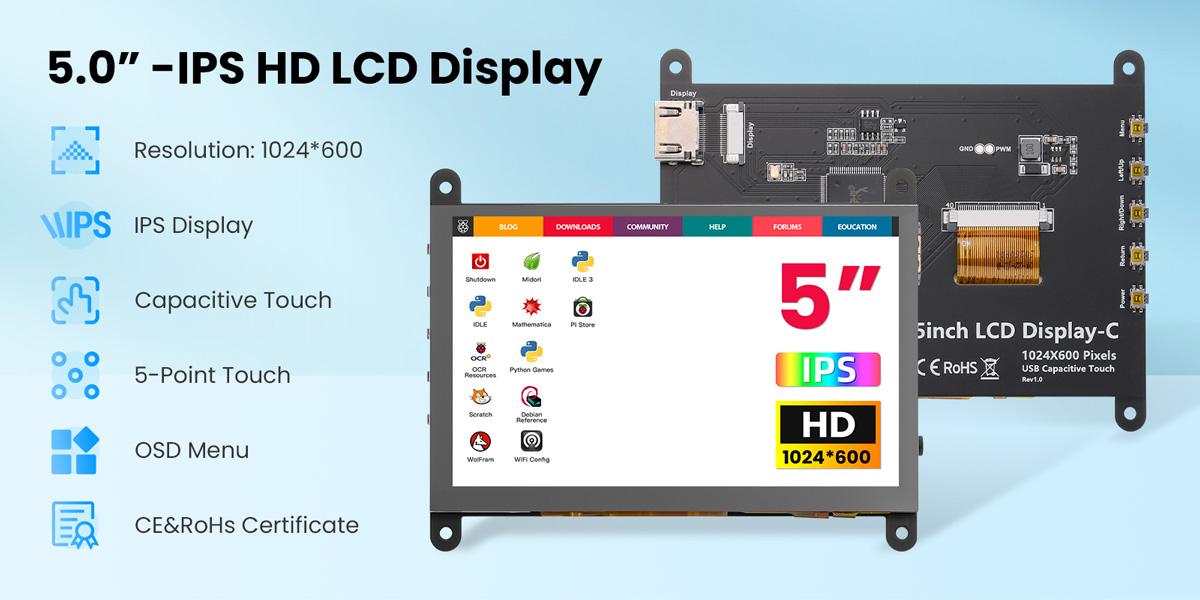

5.0inch IPS HD Display
This 5-inch display features a high-quality IPS panel, offering a physical resolution of 1024×600 and supporting 1080P signal input via intelligent scaling for a crisp and realistic display. It integrates a 5-point capacitive touchscreen, enabling driverless touch control via USB, providing a smooth and responsive operating experience on Windows and various development platforms. It also supports USB dimming, FPC flexible cable expansion, and external headphone jacks, offering flexible signal connection solutions for various scenarios.
The 5-inch screen is equipped with a professional OSD menu, allowing easy adjustment of parameters such as brightness and contrast. Its excellent compatibility covers development boards such as Raspberry Pi and Banana Pi (supporting Raspbian/Ubuntu/Win10 IoT, multi-touch, driverless), perfectly adapts to Windows 7 to 11 systems (5-point touch, USB driverless), and is compatible with mainstream game consoles such as PS4 and Xbox. The product has passed CE and RoHS certifications, providing professional and reliable product assurance for development debugging, industrial control, and interactive entertainment.
OEM customization requests can be discussed for projects.
Hardware Overview
|
|
 |
Feature
- Superior Display: Utilizes a 5-inch IPS full-view panel with a physical resolution of 1024×600, supporting up to 1080P signal input for a crisp and lifelike picture.
- Precise Touch: Integrates a 5-point capacitive touchscreen with USB communication, offering plug-and-play functionality without drivers, ensuring smooth and responsive operation.
- Professional Functions: Features a headphone jack, a built-in OSD menu for adjusting brightness and contrast; supports USB dimming and FPC flexible cable expansion for easy integration.
- Wide Compatibility: Fully compatible with Raspberry Pi (supports Raspbian/Ubuntu), Windows 7/8/10/11 systems, and game consoles such as PS4 and Xbox.
- Reliable Certifications: The product is CE and RoHS certified, ensuring quality and environmental safety.
Specification
|
Display size |
5.0inch |
|
Display type |
IPS |
|
Field of view |
178° |
|
Touch |
Capacitive 5-point Touch |
|
Resolution |
1024×600 |
|
Backlight Brightness |
410cd/m2 |
|
Refresh Rate |
60Hz |
|
Power Voltage |
5V (USB Type-C) |
|
Power Consumption |
0.30A×5V |
|
Video Input Interface |
HD/FPC Display Port |
|
Touch Interface |
USB |
|
Headphone Jack |
3.5mm |
|
Active Area |
108.00*64.80 mm |
|

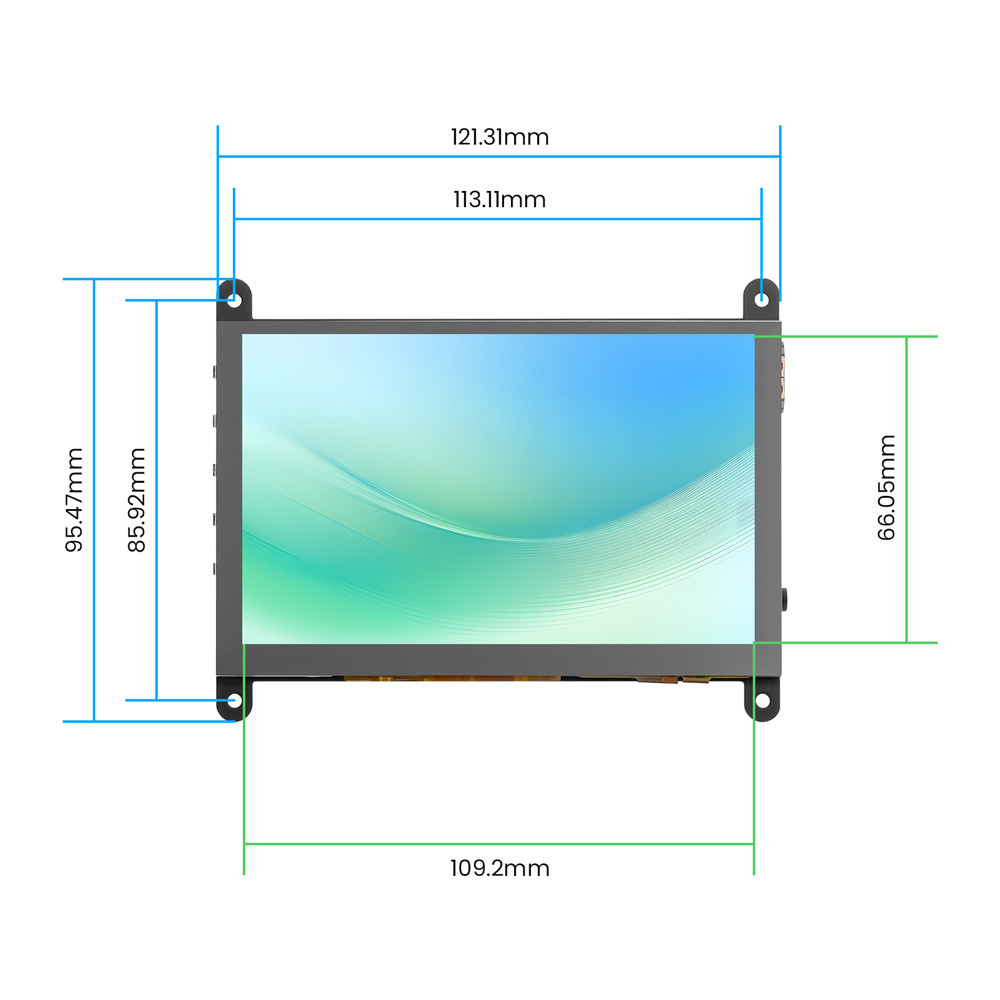

Dimensions |
121.11×95.24 mm |
|
Net Weight |
112g |

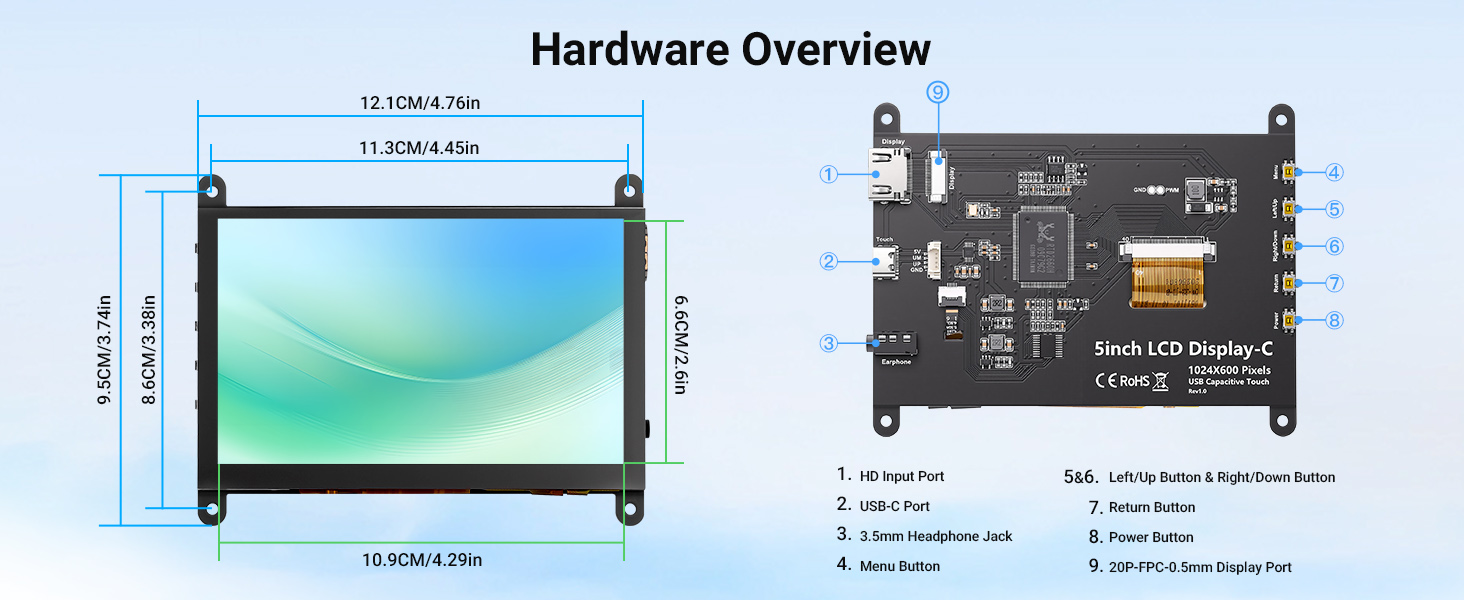

Hardware Description
|
Name |
Description |
|
HD Interface |
Connects the motherboard for HDMI signal transmission |
|
USB Touch/Power |
Provides power and touch output (use either port) |
|
Earphone Jack |
3.5mm audio output |
|
Menu Button |
Access OSD settings/selection |
|
Left/Up |
Navigation keys (backlight shortcut) |
|
Right/Down |
Navigation keys (backlight shortcut) |
|
Return Button |
Back to previous menu |
|
Power Button |
Turn the display on/off to save power |
20Pin-0.5mm-FPC HD Expansion Interface Description
|
Number |
Name |
Description |
Number |
Name |
Description |
|
1 |
NC |
No connection |
11 |
RXC_P |
Differential clock+ |
|
2 |
RX0_N |
Differential data 0- |
12 |
GND |
Ground |
|
3 |
GND |
Ground |
13 |
RXC_N |
Differential clock- |
|
4 |
RX0_P |
Differential data 0+ |
14 |
NC |
No connection |
|
5 |
RX1_N |
Differential data 1- |
15 |
NC |
No connection |
|
6 |
GND |
Ground |
16 |
HDMI SCL |
I2C clock |
|
7 |
RX1_P |
Differential data 1+ |
17 |
HDMI SDA |
I2C data |
|
8 |
RX2_N |
Differential data 2- |
18 |
GND |
Ground |
|
9 |
GND |
Ground |
19 |
HDMI 5V |
5V power supply |
|
10 |
RX2_P |
Differential data 2+ |
20 |
HDMI HPD0 |
Hotplug detection |
4Pin-1.25mm Touch Expansion Interface Definition
|
Pin |
Label |
Function |
|
1 |
5V |
Power supply |
|
2 |
D+ |
USB data+ |
|
3 |
D- |
USB data- |
|
4 |
GND |
Ground |

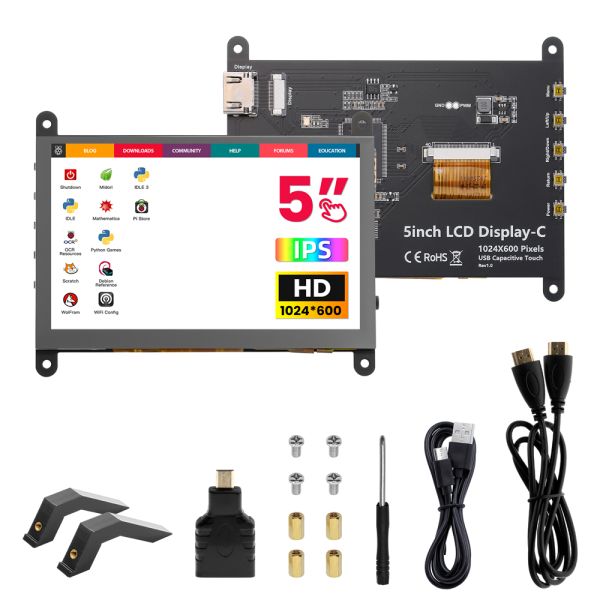

Package List
- 1x 5inch Touch Screen
- 1x HD Cable(1m)
- 1x USB-A to USB-C Cable(1m)
- 1x Micro-HD Adapter(For RPI 4B&5)
- 4X Hexagonal Copper Standoff Kit (M2.5)
