CrowPanel 2.13" ESP32-S3 E-Paper HMI Display, 122×250 Resolution, SPI Interface
$11.90
Availability:
In stock
SKU
DIE01021S
Brand
elecrow
Weight
110g
Related Products:
[2.13-inch E-Paper display] 122*250 resolution, excellent performance, using ESP32-S3 as the main control.
[Pure reflection mode] By reflecting ambient light rather than a backlight to display content, it is readable in direct sunlight.
[Retain data during power outages] The data will not be lost even when there is no power.
[Outstanding readability] Wide viewing angle, high contrast, and high reflectivity, not affected by light, providing a better reading experience
[SPI and BAT interfaces] SPI interface for communication with other motherboards; onboard BAT interface, compatible with 2.2V~3.7V
[❤️What you get] 24H Friendly Customer Service and 1 Year warranty.1x CrowPanel 2.13" E-paper display, 1x Charging Cable, 6x Tutorials and using demo.
Frequently Bought Together
CrowPanel 2.13" E-Paper HMI Display – 122×250 Resolution

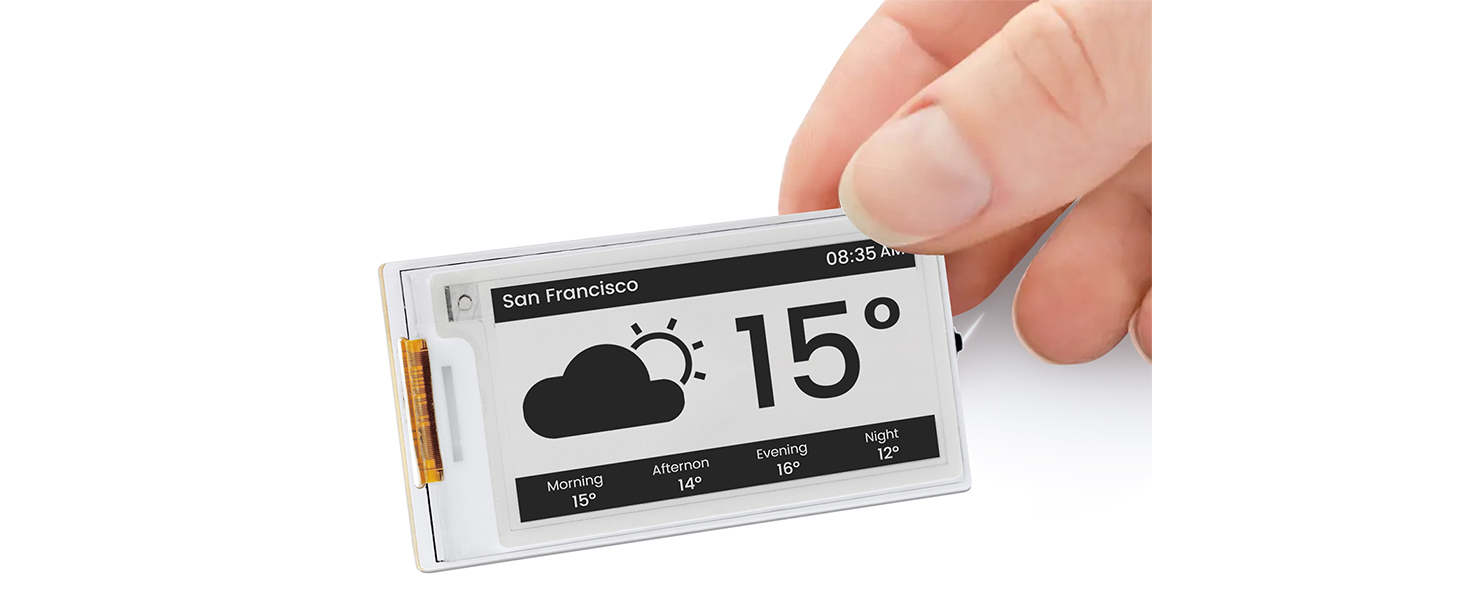

This CrowPanel ESP32 2.13” electronic paper HMI Display (E-Paper) is an advanced display technology. It is equipped with an active matrix electrophoretic display and a hard-coated anti-glare display surface to keep the content visible even in sunlight, perfectly mimicking the appearance and reading experience of traditional paper.

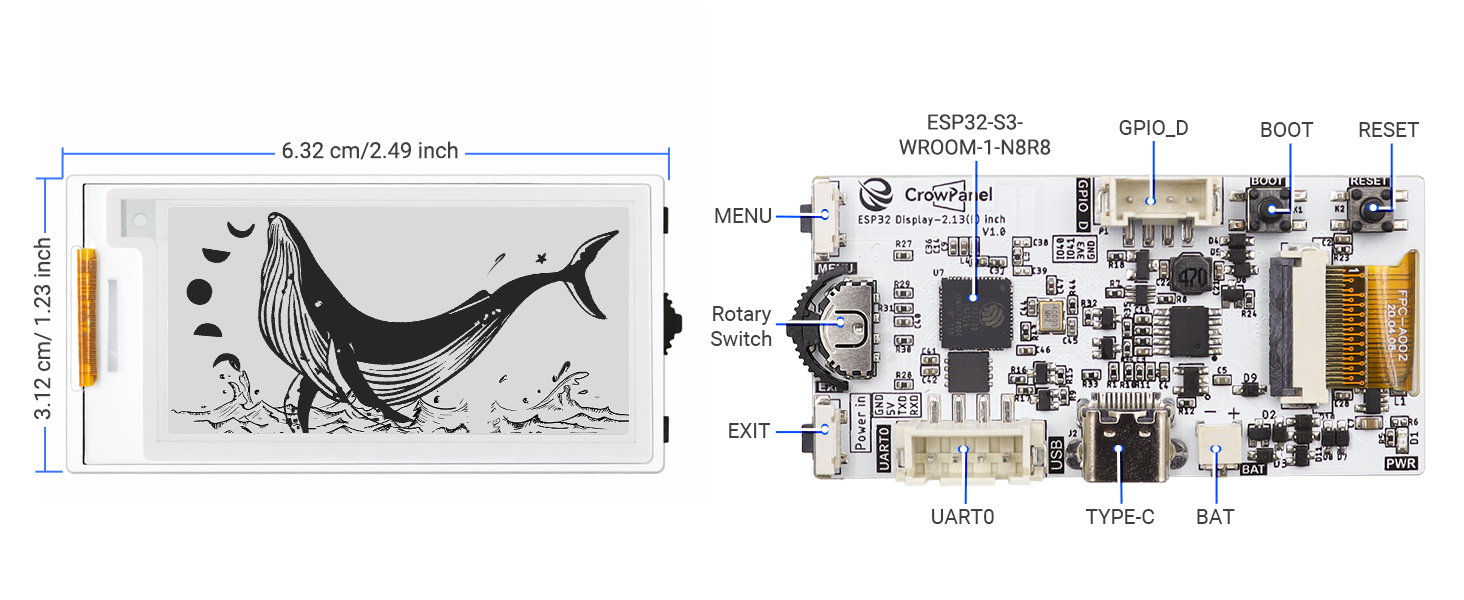

It boasts a high resolution of 122*250, providing a vivid display effect, and uses classic black and white display, suitable for various application scenarios. Equipped with the ESP32-S3 chip as the main controller, it ensures robust performance and provides fast, stable data transmission through the SPI interface. The design includes multiple interfaces and buttons, such as the BAT interface, UART0 interface, 2x10 pin GPIO interface, back button, menu button, and rotary switch, facilitating user development and operation. The white acrylic shell is not only beautiful but also protects the screen.
Based on the ESP32 chip, another standout feature is its broad compatibility. It is compatible with the Arduino IDE development environment, simplifying the secondary development process. Also, its ultra-wide viewing angle design allows you to enjoy the same brilliant image from any angle. The ultra-low power consumption feature consumes only a small amount of power when refreshing, ensuring long-lasting battery life. Pure reflection mode means no backlight is required, and information remains clearly visible after power failure, without worrying about information loss.
This electronic ink screen is not only an ideal choice for application scenarios such as shelf labels, price tags, badges, smart labels, and smart home devices, but also an excellent addition to electronic readers, smart wearable devices, and other portable devices.
Jump to: #Feature, #Specification, #Different Size Comparison, #Documents, #Review.
Designed and manufactured by Elecrow, customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com.
Advantages of E-paper
Electronic paper displays can clearly display images/text under lighting or natural light, without backlight, with lower power consumption and longer life due to partial refresh. Because its effect is similar to that of paper, it is often used as an e-reader.
Applications

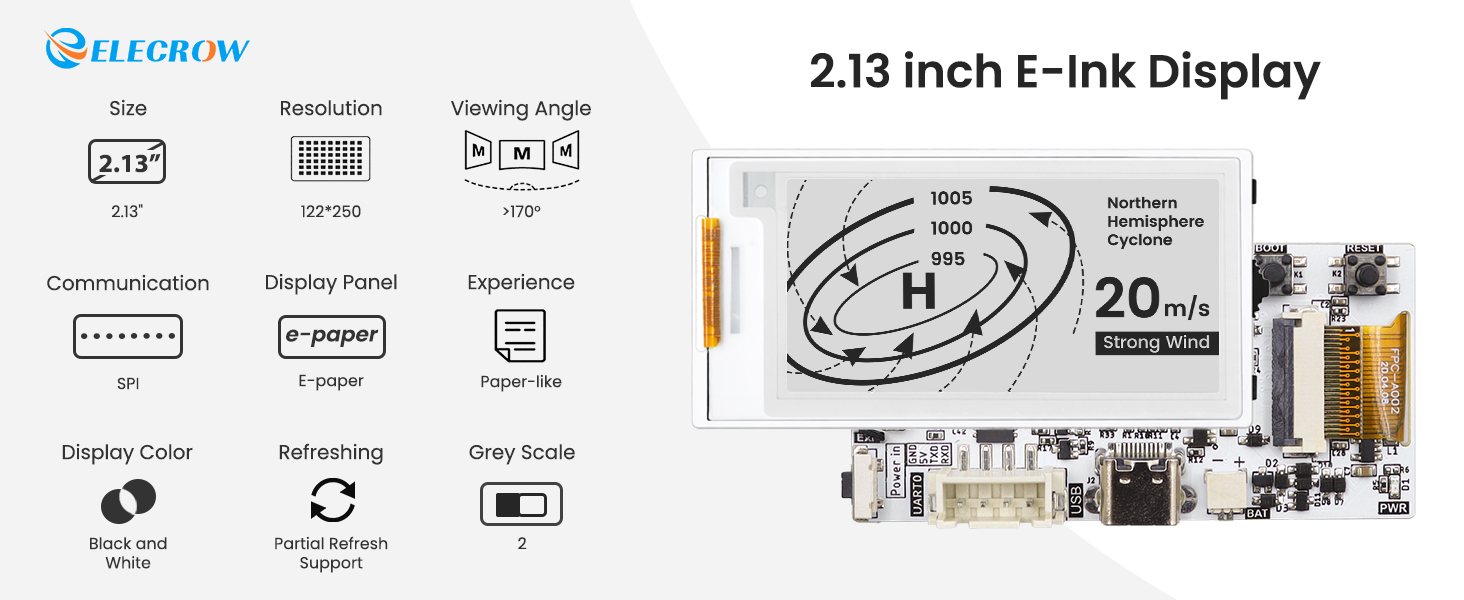

Feature
- 2.13-inch E-Paper display, 122*250 resolution, black and white, using SPI interface communication;
- ESP32-S3 as the main chip, frequency up to 240MHz;
- Support full viewing angle, clearly visible from any angle;
- High contrast and high reflectivity, can provide better visual performance;
- Pure reflection mode, no backlight required, completely relying on light reflection to display content, and the displayed content will not be lost even if the power is off;
- Hard-coated anti-glare display surface, it can keep the content clearly visible even under direct sunlight;
- Support the Arduino IDE development environment to get a smooth development experience;
- Ultra-low power consumption and partial refresh function, significantly saving energy;
- Rich buttons and interfaces (such as GPIO interface, UART interface, home button, etc.) for easy development and operation.

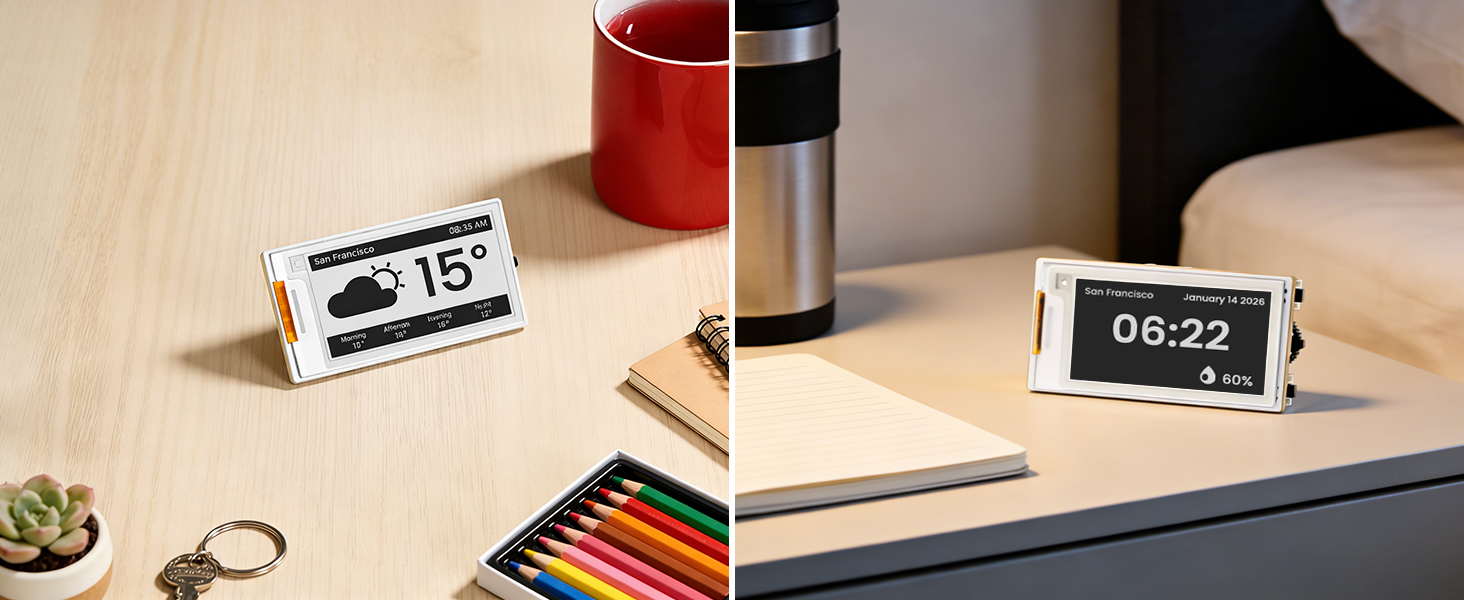

Where to use

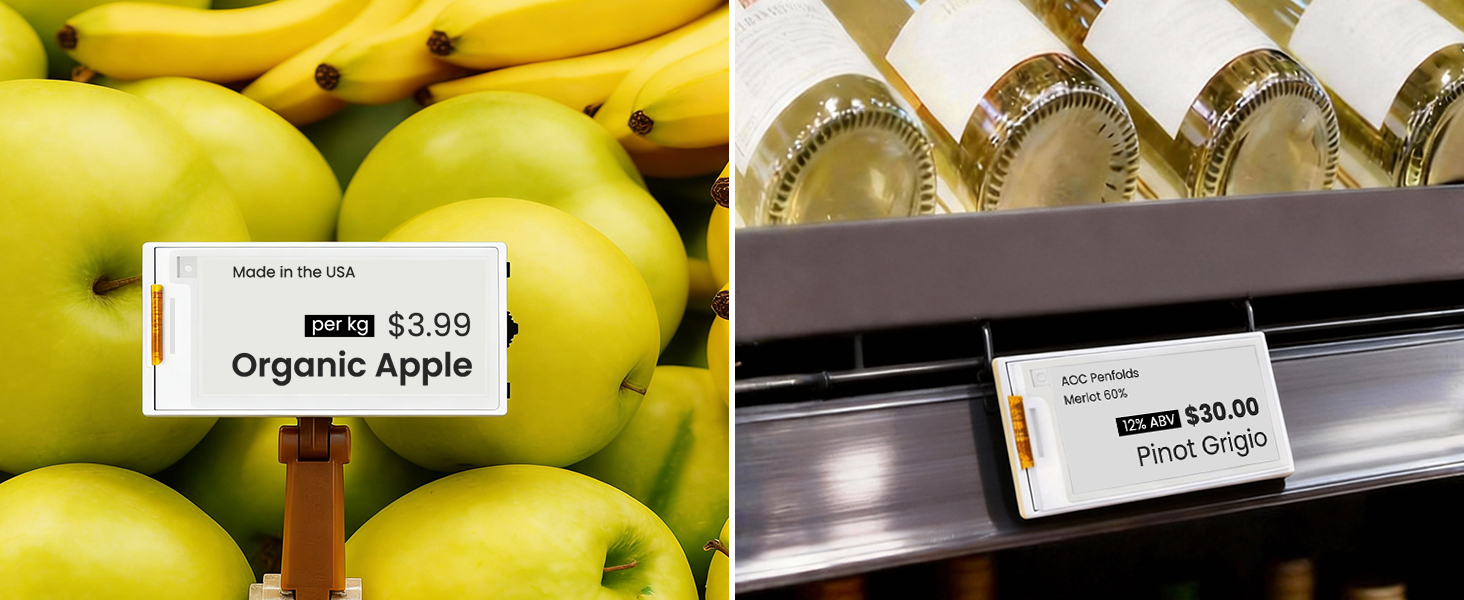

- Electronic label: supermarket or shelf product information and price;
- E-book reader;
- Electronic business card: display the corresponding participant information;

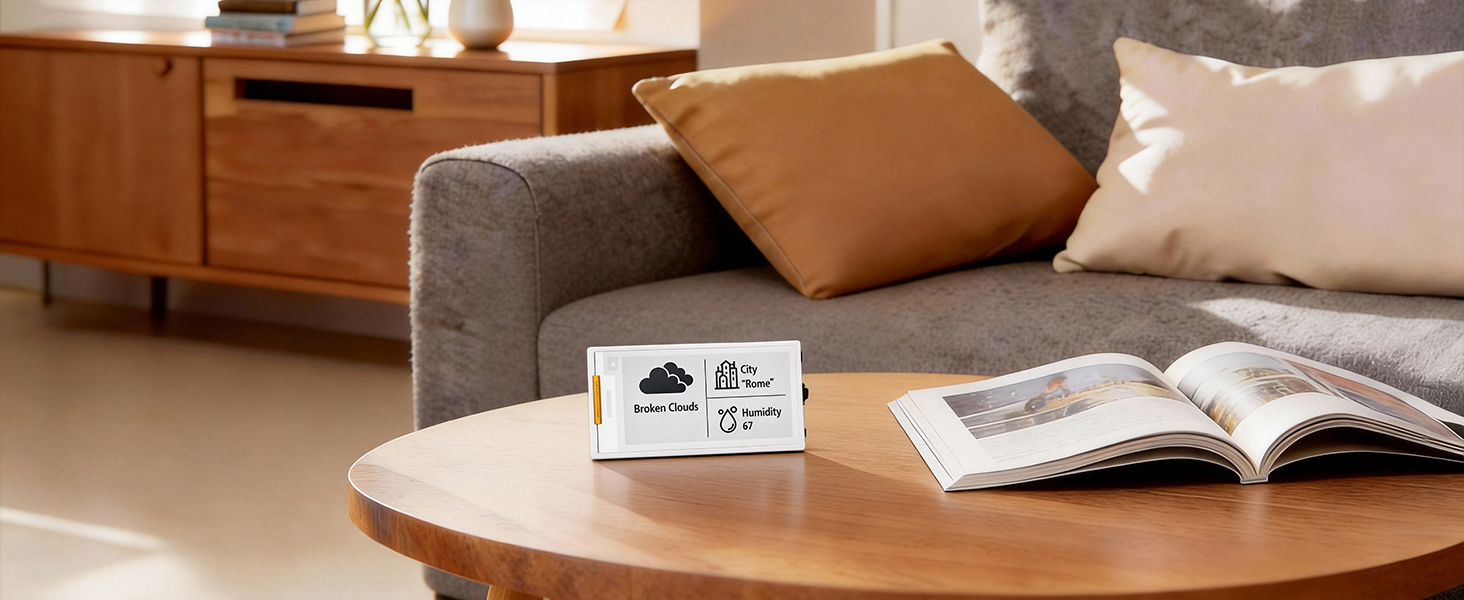

- Smart home and other applications.
Specification
|
Size |
2.13 inch |
|
MCU |
ESP32-S3, up to 240 MHz |
|
Flash |
8 MB |
|
PSRAM |
8 MB |
|
WiFi |
Support |
|
Material |
Active Matrix Electrophoretic Display (AM EPD) |
|
Driver Chip |
SSD1680Z, JD79661 |
|
Resolution |
122(H)*250(V) Pixel |
|
Pixel pitch |
0.227*0.226 |
|
Viewing Angle |
Full Viewing Angle |
|
Communication interface |
3-/4-wire SPI |
|
Interface |
UART0x1, BATx1(SH1.0-2P), GPIOx1 |
|
Button |
Rotary Switch x1, Menu Button x1, Back Button x1, Reset Button x1, BOOT Button x1 |
|
Development Environment |
Arduino IDE |
|
Display Color |
Black and white |
|
Refresh Mode |
Partial refresh (saves more power) |
|
Battery Input Voltage |
2.2~3.7V |
|
Operating Temperature |
0~50℃ |
|
Storage Temperature |
-25~70℃ |
|
Active Area |
31.2(H)*63.19(L)(H*L) |
Different Size Comparison
| Size | 2.13inch | 2.9inch | 3.7inch | 4.2inch | 5.79inch |
|---|---|---|---|---|---|
| Color | black, white | black, white | black, white | black, white | black, white |
| Chip | ESP32-S3 | ESP32-S3-WROOM-1-N8R8 | ESP32-S3-WROOM-1-N8R8 | ESP32-S3-WROOM-1-N8R8 | ESP32-S3-WROOM-1-N8R8 |
| Flash | 8MB | 8MB | 8MB | 8MB | 8MB |
| PSRAM | 8MB | 8MB | 8MB | 8MB | 8MB |
| Driver Chip | SSD1680Z | SSD1680Z | UC8253 | SSD1683 | SSD1683 |
| Resolution | 122*250 | 128×296 | 240*416 | 400*300 | 272*792 |
| Partial Refresh | Yes | Yes | Yes | Yes | Yes |
| Communication Interface | SPI | SPI | SPI | SPI | SPI |
| Interface | UART0x1, BATx1, GPIOx1 | UART0x1, BATx1, GPIOx1, TF Card x1 | UART0x1, BATx1, GPIOx1, TF Card x1 | UART0x1, BATx1, GPIOx1, TF Card Slot x1 | UART0x1, BATx1, GPIOx1, TF Card Slot x1 |
| Button | Rotary Switchx1, Menu Buttonx1, Back Buttonx1, Reset Buttonx1, BOOT Buttonx1 | Rotary Switchx1, Menu Buttonx1, Back Buttonx1, Reset Buttonx1, BOOT Buttonx1 | Rotary Switchx1, Menu Buttonx1, Back Buttonx1, Reset Buttonx1, BOOT Buttonx1 | Rotary Switchx1, Menu Buttonx1, Back Buttonx1, Reset Buttonx1, BOOT Buttonx1 | Rotary Switchx1, Menu Buttonx1, Back Buttonx1, Reset Buttonx1, BOOT Buttonx1 |
| Active Area | 31.2(H)*63.19(L)(H*L) | 29.056(H)*66.896(L)(H*L) | 47.04(H)*81.54(L)(H*L) | 84.8(H)*63.6(L)(H*L) | 47.74(H)*139.00(L)(H*L) |
Package List
- 1x 2.13 inch E-Paper Display
- 1x USB Cable
Wiki & External links
- Wiki of 2.13inch E-Paper Display
- User Manual of 2.13inch E-Paper Display
- 3D File of 2.13inch E-Paper Display
- SSD1680Z Datasheet
- JD79661 Datasheet
- ESP32-S3 Datasheet
- Schematic
- Github
