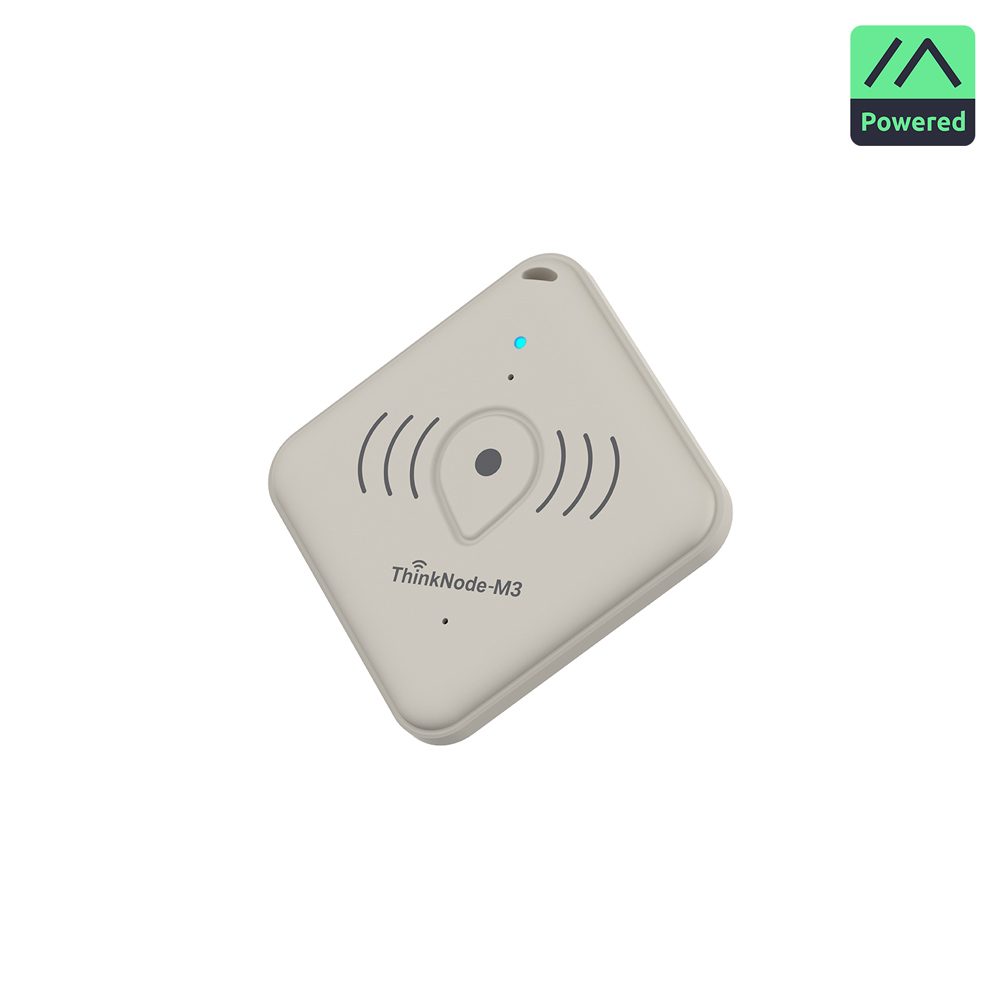

ThinkNode M4 Power Bank - LoRa Device with Meshtastic Function Powered By nRF52840

ThinkNode M3 Tracker Card - Meshtastic Tracker With GPS/WiFi/BLE function For Indoor and Outdoor Positioning

$39.90
Availability: Out of stock
SKU
ILO13903D
Brand
elecrow
Weight
110g
×
ok  Add to cart successfully!
Customers Who View This Item Also Bought
left right

Send B2B inquiries to info@elecrow.com for bulk order.

[Meshtastic Tracker] Based on the Meshtastic protocol, it can be paired with the Meshtastic APP on mobile phones to achieve communication and positioning.
[GPS Positioning] Built-in high-sensitivity GPS module, supports GPS/GLONASS/GALILEO/BDS positioning systems, with one-click search function.
[Magnetic Charging Design] The message is sent once every minute and can work for up to 18 hours.
[Mini Size] Small size, easy to carry, suitable for a variety of usage scenarios.

Note: If you want to buy the ThinkNode M3 LoRaWAN Version, please click the link.

ThinkNode-M3 Meshtastic Tracker - High-precision Positioning Device

The ThinkNode-M3 Meshtastic tracker is a high-performance device designed specifically for Meshtastic users. Integrating the LR1110, nRF52840, and GPS modules, it provides a high-precision, low-power positioning and communication solution. Its lightweight design makes it easy to carry and install, ensuring accurate location tracking whether worn on the body, mounted on a vehicle, or discreetly placed anywhere.

The Meshtastic Tracker can be linked to the Meshtastic app on your phone, enabling communication and positioning even in environments without cell phone signals or network coverage. It's perfect for outdoor activities like hiking, camping, or emergency rescue.

The ThinkNode-M3 LoRaWAN Tracker uses a magnetic charging design, sends a message once a minute, and can work for up to 18 hours. It also monitors ambient temperature, humidity, and movement. A one-touch alert function allows for quick distress signals in emeThe message is sent once every minute and can work for up to 18 hours.  rgencies. The IP66 rating ensures durability and reliability in a variety of harsh environments, making it an ideal choice for outdoor adventures and emergencies.

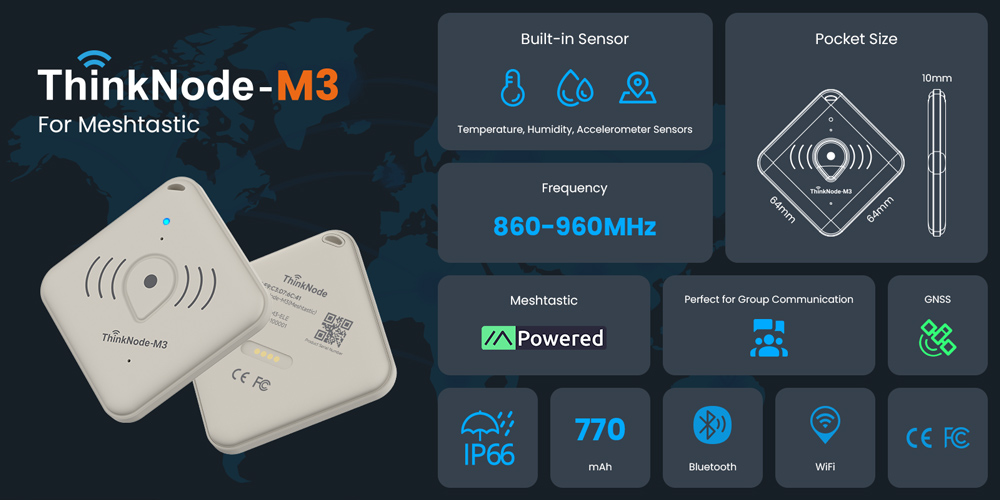

features of ThinkNode M3 Tracker for Meshtastic

Feature

  • Tracker for Meshtastic: Integrates LR1110, nRF52840, and GPS modules to create a high-precision, low-power positioning and communication solution for Meshtastic users.
  • Powerful client interface: Provides an intuitive and easy-to-use operation experience, convenient for users to manage and monitor devices.
  • Three working modes: Including standby mode, normal mode, and trigger mode;
  • GPS positioning: built-in high-sensitivity GPS module, supports GPS/GLONASS/GALILEO/BDS positioning systems
  • Battery power reporting: The battery power reporting function can be set to ensure that users are aware of the power status of the device at any time.
  • One-click search function: If the tracker is lost, a one-click search function is provided to help quickly locate the device.
  • Real-time location: Ensure real-time updates and high accuracy of location information.
  • Built-in sensors: Including temperature, humidity, and accelerometer sensors, providing environmental monitoring functions.
  • Customized sensor thresholds: You can set sensor thresholds as needed, and the device will automatically alarm when out of range.
  • Reporting time setting: You can set the time interval for data reporting as needed.
  • Offline data caching function: When there is no network connection, the device can cache data and upload it after the network is restored.

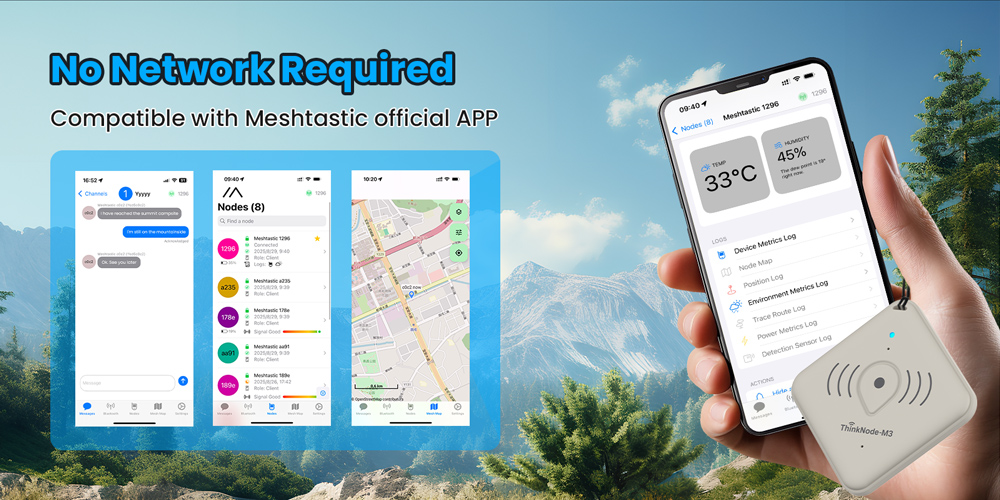

Compatible With Meshtastic App Thinknode M3 is compatible with Meshtastic App

Location function: Support GPS, GLONASS, GALILEO, and BDS

ThinkNode M3 leverages BLE and Wi-Fi for precise indoor positioning, and GNSS technology (including GPS, BDS, GALILEO, and GLONASS) for accurate outdoor tracking.

Thinknode M3 Meshtastic Tracker with location function

Beyond Positioning

Integrated temperature, humidity and vibration sensors to capture cargo status in real time Thinknode M3 Meshtastic Tracker beyond positioning

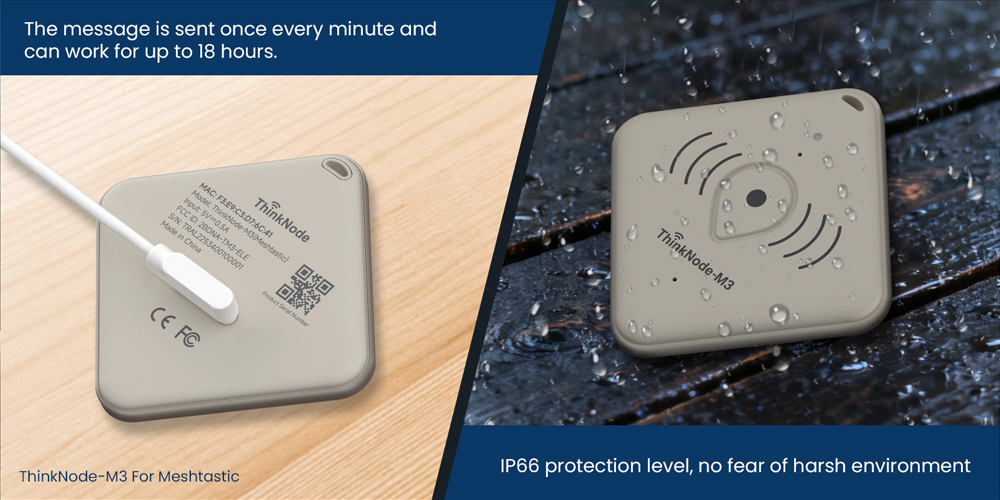

Magnetic Charging Design & IP66 Rating

The message is sent once every minute and can work for up to 18 hours. ThinkNode M3 support Magnetic Charging Design & IP66 Rating

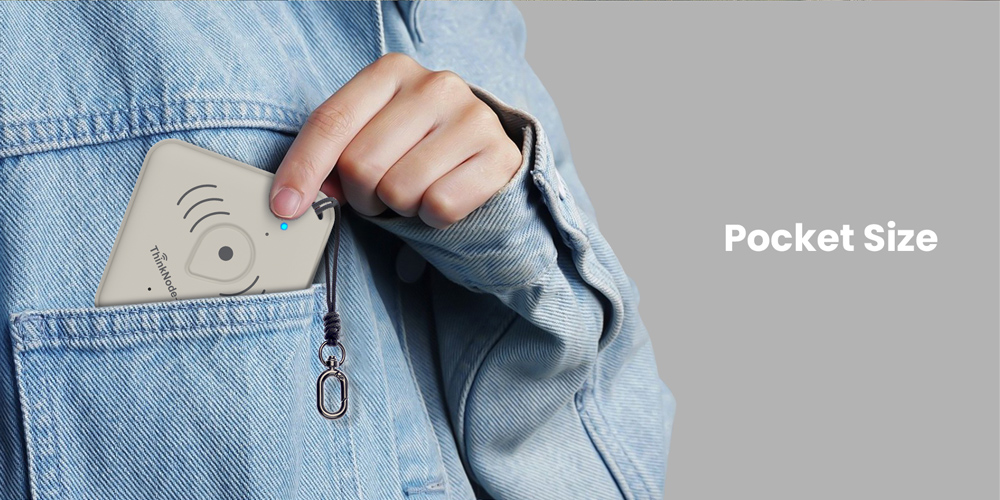

mini pocket size of ThinkNode M3

Multiple Applications multiple applications of Thinknode M3 Meshtastic Tracker

ThinkNode M3 for vehicle tracking

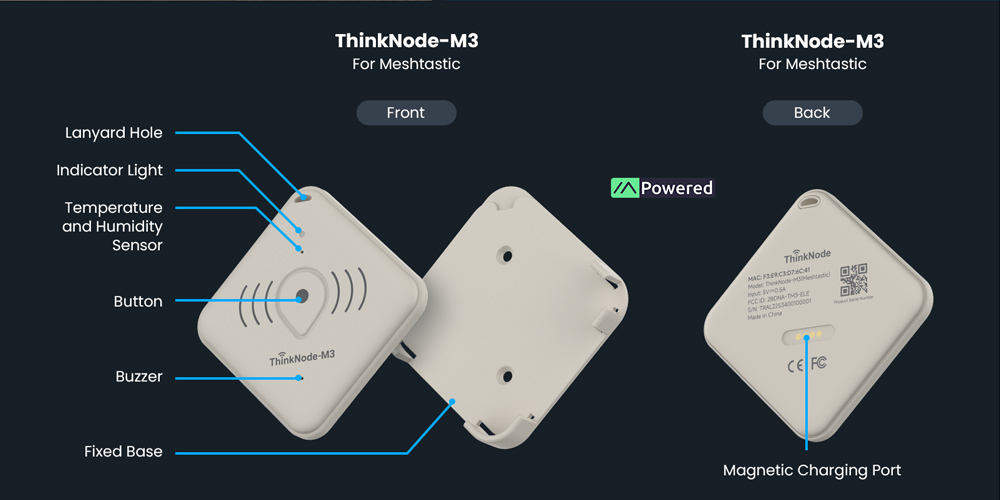

Hardware Overview hardware overview of Thinknode M3 Meshtastic Tracker

Specification

Main control IC

nRF52840

LoRa Chip

LR1110

LoRa Frequency

EU868/US915

Sensitivity requirement

-140 dBm or above

Maximum transmission power

+20 dBm

Transmission rate range

1.76~62.5Kbps

LoRa frequency range

860MHz-960MHz

Communication distance

5~6 kilometers

Bluetooth

Bluetooth 5.0

GNSS Location

Support GPS/GLONASS/Galileo/Beidou

GNSS Sensitivity

-148dbm (cold start) -156dbm (hot start)

-160dbm (recapture) -162dbm (tracking)

GNSS Positioning accuracy

<1.5m (CEP50)

Sensors

Temperature Sensor, humidity Sensor, accelerometer

Indicator

One Red/Green/Blue three-color indicator light

Button

Power On/Off/SOS Trigger

Battery Capacity

760mAh, lithium battery

IP Rating

IP66

Operating temperature

-20℃-+60

Charging method

Magnetic charging

Antenna

Internal onboard antenna (GNSS/LORA/WIFI/BLE)

Power Supply

5V DC

Size

L/W/H: 64*64*10 (mm)

Fixed Base: 68*68*10.2 (mm)

Material

PC+ABS

Certificate

CE / FCC

Net Weight

40g



Why Choose us?

As an industry-leading equipment manufacturer, we rely on our independently developed core technology and the production strength of our own factory to ensure that every product has precise quality control from design to manufacturing, and is both reliable and innovative. We provide online customer service support to answer your questions at any time, making the whole process worry-free. At the same time, we provide customized solutions to accurately meet your personalized needs. Choosing Elecrow means choosing safety, efficiency and professionalism.

Package List

  • 1x ThinkNode M3
  • 1x Charging Cable
  • 1x Fixed Base and Sticker
  • 2x Expansion screws
  • 1x Lanyard
  • 1x User Manual
