Nano USB Mouse

Overview

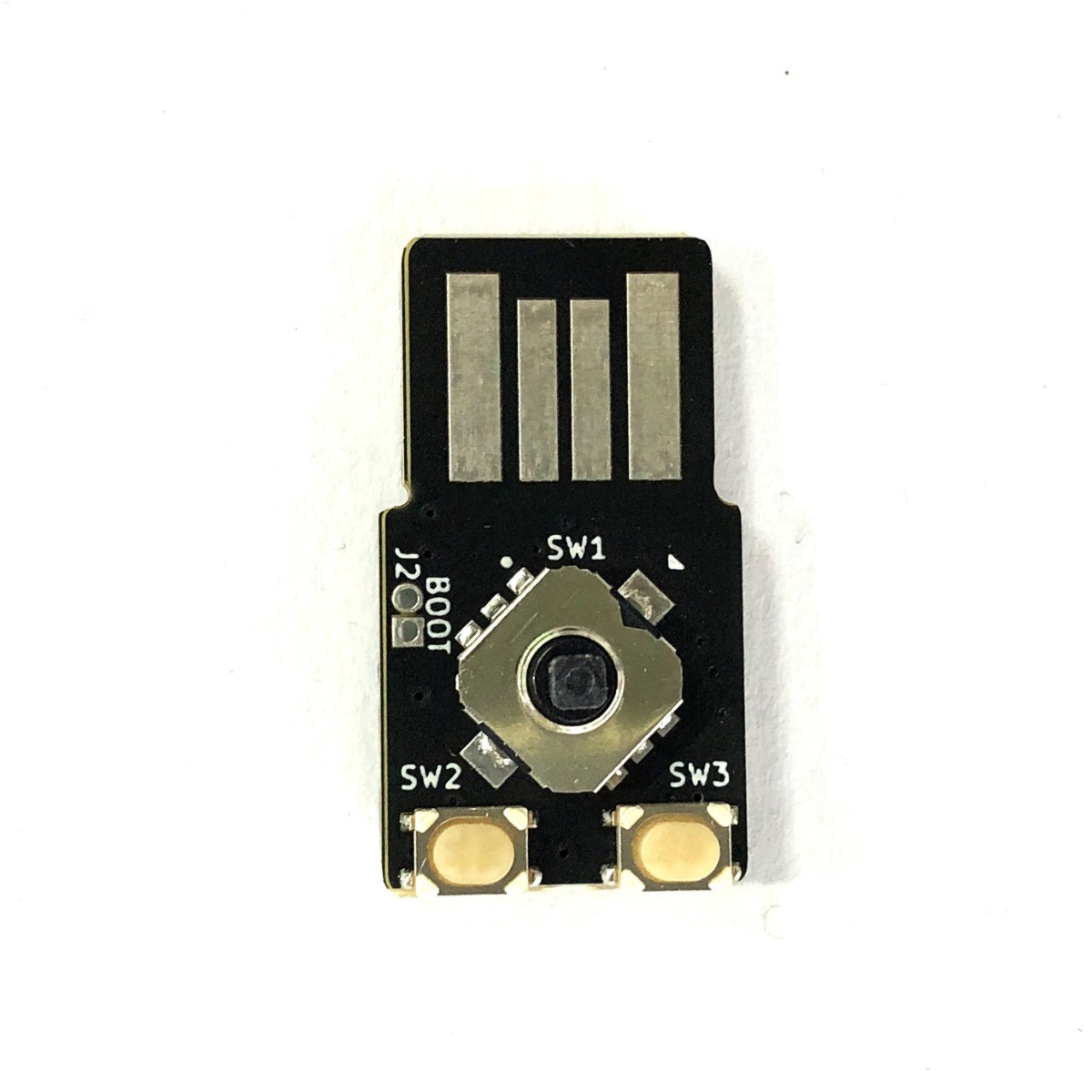

• This is a compact mouse equipped with 5 directional pad, size 14mm x 25mm.
• It features up, down, left, right, center buttons, and left/right click buttons.
• The center button functions the same as the left mouse button.
• If you continue to tilt the knob, the speed changes in two stages.
• Suitable for small PCs and SBCs(Single Board Computers, like Raspberry Pi).
• It operates using standard drivers, without the need for a dedicated driver.
• You can change the mouse orientation according to the direction of the USB port.

Direction Setting

• To configure the mouse orientation, insert the USB connector while holding the knob tilted in the desired "up" direction.
• The settings will be applied immediately.
• If the settings are not applied, please perform the procedure again.
• The configuration data is automatically saved to flash memory.
• The orientation does not need to be set again for subsequent uses.
• The configuration data supports up to approximately 10,000 rewrite cycles.
• If you do not wish to change the orientation, connect this device to the USB port without pressing any buttons.

Target User

• It is ideal for users who primarily use a keyboard and don't need a mouse, but still want to use one occasionally.
• It is ideal as a stopgap measure until the drivers for the mouse pad or touch panel are installed.
• It is convenient to use in combination with a Nano USB Scroller.

Note

• Due to the use of up, down, left, and right buttons, diagonal movement is not possible.
• Please take care not to short-circuit or damage components on the back of the board.
• Please operate the knob gently. Operating it with excessive force may cause damage.
• PCB color, LED color, and other specifications are subject to change without notice.
