7inch 1024×600 HDMI LCD with Touchscreen

This 7-inch LCD (C) HDMI-compatible small display with capacitive touch screen supports various systems like Raspberry Pi, Banana Pi, Banana Pro, and BB Black to provide Lubuntu, Raspbian, and Angstrom images with a high resolution of 1024×600. Besides, it upgrades to an IPS screen with a larger visible angle and a clearer display effect. Broadly, you can apply it to Raspberry Pi, HDMI-compatible display screens, and other mini PCs or even computer displays.

If you are going to use it on Raspberry Pi Zero and BB Black, you need to buy an HD video connection wire for use. For the Raspberry Pi Zero, you also need to buy a USB type A micro cable. When matched with Raspberry Pi, it supports Raspbian and Ubuntu for a single touch without a touch driver. As a PC display, it supports Windows 11/10 / 8.1 / 8 / 7 for five-point touch without a driver.

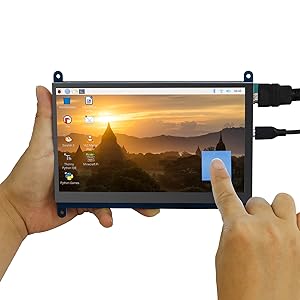

For Windows 11/10/8.1/8 OS, the touch screen supports multi-touch up to 10 points. For some Windows 7 OS, the touch screen supports single touch only. When working with Raspberry Pi, you should set the resolution of the LCD yourself; otherwise, the LCD screen will not work. When working with BeagleBone, this LCD module is used for display only, so you can program the latest Angstrom image file to the board directly without any changes. The BeagleBone will read the display parameters of the 7-inch HDMI-compatible displayer and automatically set the resolution to 800*480.

OEM customization requests can be discussed for projects.

Wide Compatibility

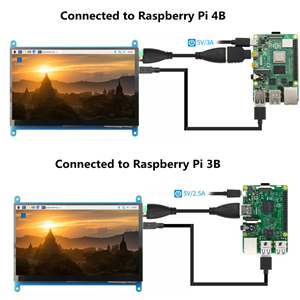

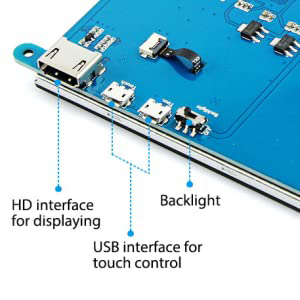

Hardware Description HD interface: For connecting motherboard and LCD monitor for displaying. Touch interface: For power supply and touch output, 2 same ports designed to prevent insufficient power supply when needs extra power. Backlight switch: Controls the backlight turned on and off to save power.	Connected to RPI 4 Please connect to HDMI-0 port when intended for Raspberry Pi 4. * When connecting to RPi 4, please power the screen with an external power supply, and then disconnect the external power after booting up the Pi to ensure that the touch function works properly.	Touch Function To achieve display and touch at the same time, please use a USB data cable to connect the screen and the USB port of the main control device. *The touch function can be used normally only if the screen is powered directly through the usb of the device. If the monitor is connected to an external power supply at the same time, the touch function is not available.

Note :

• It's recommended to use 5V3A or above power supply to ensure enough power.
• When working with Raspberry Pi 4, for the system image of Raspberry Pi after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-KMS-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.
• Drivers can be added to your current system to support LCD display and touch control.
• Images CAN NOT be used with your current system. They're stand-alone systems that support LCD display and touch control already.
• If the LCD is intended to play videos, please choose the one with HDMI-compatible display interface.
• All the driver and related image files have been included in the DVD.

Specification

• Appearance Size: 164*124*14.4mm
• Screen Size: 155*88.5mm

Package List

• Medel: RC070
• 7inch HDMI-compatible LCD (C) Display× 1
• HDMI-compatible cable x 1
• Micro USB cable x 1
• Copper pillar kit x 1
• DVD x 1

Wiki & External links

• User manual(wiki link) of RC070 7inch Display
• User manual (specifications) of RC070 7inch Display
• 3D Design File of RC070 7inch Display
• Post your tech questions in the forum
