IOL HAT On, Complexity Off - Industrial IoT Made Simple!

The IOL HAT bridges the gap between maker-friendly Raspberry Pi and industrial-grade automation. Connect over 20,000 types of IO-Link sensors, actuators, and devices without the cost and complexity of traditional PLCs—making Raspberry Pi based Industrial IoT applications accessible, affordable, and easy to implement.

IOL HAT On, Complexity Off - Industrial IoT Made Simple!

  • thumbnail-img


Story

Product Overview

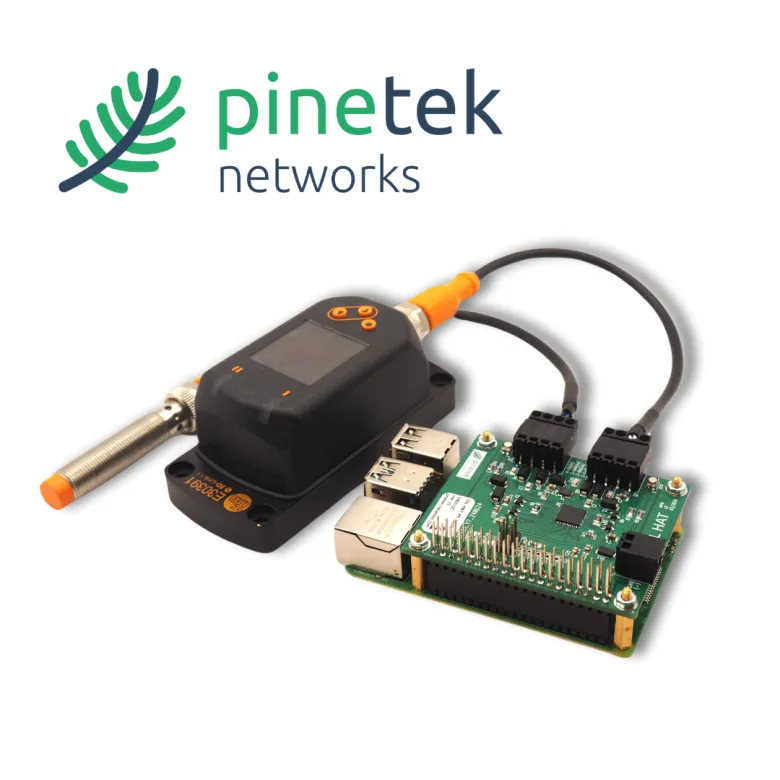

The IOL HAT is an industrial-grade Hardware Attached on Top (HAT) module that transforms a standard Raspberry Pi into a  IO-Link master controller. It enables seamless integration of industrial sensors, actuators, and other devices  compliant with IEC 61131-9 (IO-Link, also known as SDCI) into embedded applications and Industrial IoT systems.

Hardware Architecture

Core

  • Dimensions: 65.5 × 66 mm footprint, 18 mm height with stack-through capability
  • Mounting: 4×2.5 mm screwholes compatible with standard Raspberry Pi mounting points (standoffs included)
  • Primary Supply: 24V DC (±20% tolerance) via 3.5mm screw-plug connector

SDCI (IO-Link) Port Configuration

  • Ports: 2 independent SDCI ports per HAT module
  • Connector Type: 3.5mm 2-pin screw-plug terminals
  • Compliance: Class A IO-Link specification (≤500mA per port)
  • Communication Speeds: Auto-detection supporting COM1, COM2, COM3 modes
  • Operating Mode: IOL1 standard with dedicated status LEDs (red/green per port)

Raspberry Pi Interface

  • Primary Connection: 40-pin GPIO stack-through connector

Software Architecture

Master Application Stack

The IOL HAT utilizes an open source software (available on IOL HAT - GitHub) built on the industry-proven I-Link stack from RT-Labs, providing:

  • IO-Link Master Stack: Full IEC 61131-9 compliant master implementation
  • User application interface: TCP socket-based binary protocol, commands:
    • Port power control (on/off)
    • Process data read/write operations
    • Parameter data access (read/write)
    • Port information retrieval
    • LED status control

Programming Language Support

The TCP socket interface enables development in multiple programming languages:

  • Python (examples provided)
  • C/C++  (examples provided)
  • Node-RED (via IOL Connect Manager software, additional functions)
  • Any language supporting TCP socket communication

Advanced Features

IOL Connect Manager Add-on (additional license required)

Professional-grade software enhancement providing:

  • IODD File Handling: Automatic device description processing
  • Node-RED Integration: Visual programming interface for rapid prototyping
  • JSON API: RESTful interface for web-based applications
  • Web Interface: Browser-based configuration, testing, and parametrization
  • Database Integration: SQLite database for data logging and management
  • Smart Gateway Capabilities: Complete IoT gateway solution

Scalability Architecture

  • Single HAT: Up to 2 SDCI devices
  • Stacked Configuration: Up to 2 IOL HATs per Raspberry Pi (40-pin GPIO stacking)
  • Maximum Capacity: 4 SDCI devices per Raspberry Pi system

Compatibility Matrix

Raspberry Pi Models

Model RAM OS Tested Speed Status
Raspberry Pi 3B 1GB Raspberry OS 12 (Bookworm) COM2 Verified
Raspberry Pi 4B 1GB+ Raspberry OS 12 (Bookworm) COM3 Verified
Raspberry Pi 5 4GB+ Raspberry OS 12 (Bookworm) COM3 Verified

Device Compatibility

  • Standard Compliance: SDCI devices according to IEC 61131-9 (IO-Link)
  • Device Universe: Over 20,000 different sensor and actuator types
  • Manufacturer Independence: Any IO-Link compatible device regardless of vendor
  • Power Classification: Class A devices (≤500mA power consumption)
  • Standard M12 interface: Adapter cables available

Integration Efficiency

  • Setup Time: Rapid deployment with pre-compiled master application and
  • User examples: user application examples for Python and C/C++ available
  • Add-on software: IOL Connect Manager with web-interface, Node-RED integration and JSON-API
