Smart Home with ESP 32

This project presents a complete smart home system based on the ESP32 microcontroller, designed for both functionality and educational use. The system integrates several components: - A keypad-controlled servo door lock system - Remote control of home elements via the Blynk IoT application - A curtain controlled by a DC motor (push-button logic via mobile) - An ultrasonic-based automatic garage door system - A DHT11 sensor for real-time temperature monitoring - LED and buzzer indicators for visual/audio feedback All components are connected and managed using ESP32, allowing wireless control and automation through WiFi.

Smart Home with ESP 32

  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • Arduino IDE

    Arduino IDE

    Arduino

Story

🏠 Smart Home Automation Project using ESP32.

It all started with an assignment:
You have a project, build a Smart Home.

So, I did the first thing I actually knew how to do:

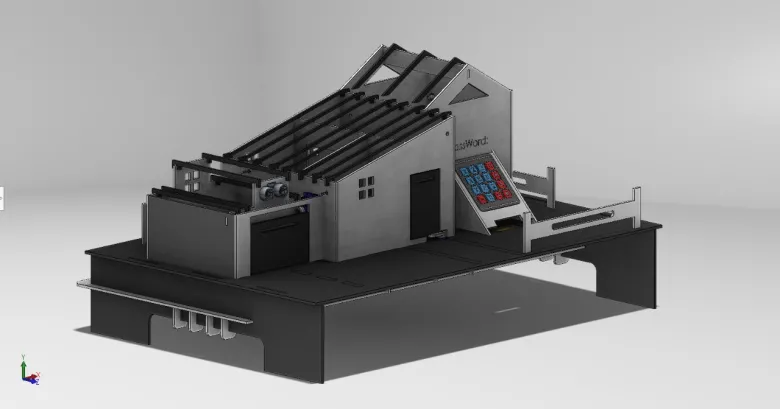

I opened SolidWorks and designed the house.
Looked great.
Except... nothing actually worked. I had the home, and the components… but how do I make them smart?

That’s when Kaream Abdelnaser stepped in.
We sat down, broke things down one by one, and he told me exactly what I’d need to bring the components to life then helped me wire them up (and rewire… and re-rewire). He honestly suffered with me through every tangled cable and burned finger.


- Key Features:

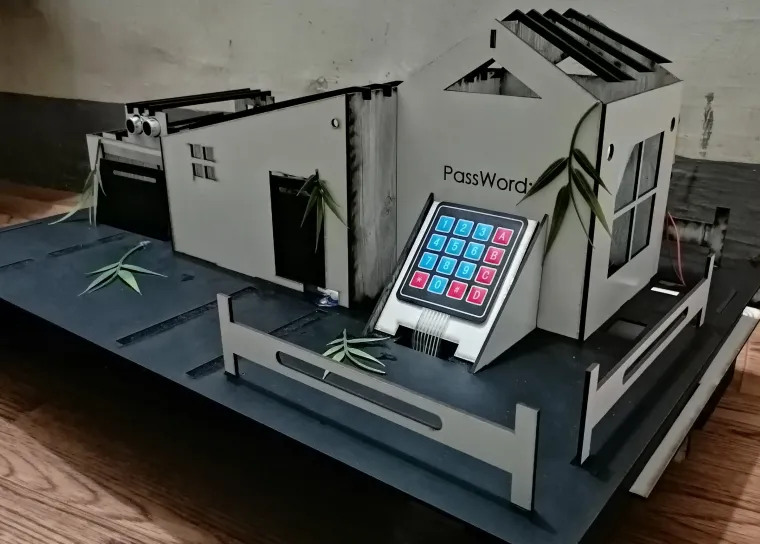

🔢 Password-protected main door using a 4x4 keypad
📱 Remote control of bathroom door and LED lighting via the Blynk app
🪟 Smart curtain movement powered by a directional DC motor
📡 Ultrasonic sensor that automatically opens the garage door
🌡️ Real-time temperature monitoring with a DHT11 sensor
🔊 Buzzer alerts for password feedback and system interaction

- Project Resources:
📎 GrabCAD (3D Home Design): grabcad.com/ali.abozied-2
💻 GitHub Repo (Code + Pin Map + Docs): https://lnkd.in/dPbcJJHz

🧠 Special thanks:
Hazem Hashim – for coding help and explaining what half the errors meant.
Ziad Mohamed – for solving what felt like an unsolvable issue.

🙏 And finally, thanks to the entire team for being part of this journey, it wouldn't have been the same without the good company.

hashtag

Code
  • Smart_Home_Project_Code

    https://github.com/AliAbouZied22/SmartHome
    View
Schematic and Layout
  • LinkedIn post

    https://www.linkedin.com/feed/update/urn:li:activity:7336066717040701440/
    View
CAD-Custom parts and enclosures
