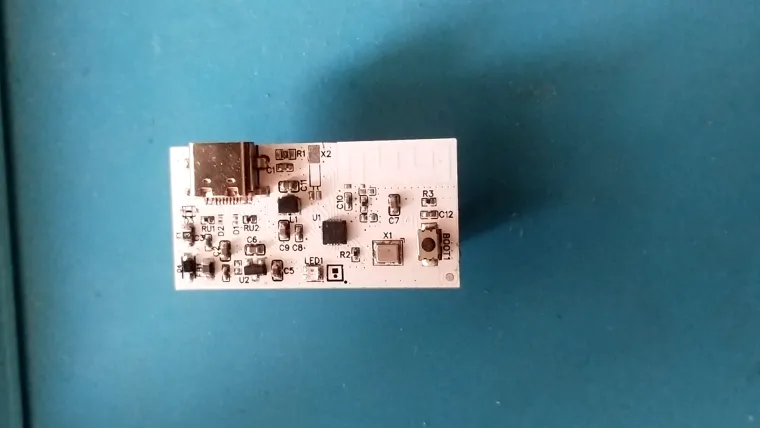

CH591D BLE USBC module

CH591D pcb for IMK8K macro keyboard

CH591D BLE USBC module

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story









Device Overview

The CH591D module-Bluetooth Low Energy (BLE) and USB-C connectivity, making it ideal for low-power wireless applications that also require USB communication .








Technical Specifications

Parameter Value / Description
Microcontroller CH591D
Flash 192+24+32 KB
RAM 24+2 KB
Bluetooth BLE 5.4
USB USB 2.0 Full Speed (via USB-C connector)
Power Supply 3.3 V (via USB-C )
USB Connector USB Type-C
Interfaces UART, , SPI, ADC, GPIO
ADC 4+1
GPIO 12
Programming Support ICP, ISP and IAP, support OTA wireless upgrade
Antenna PCB
Board Size 40*20mm

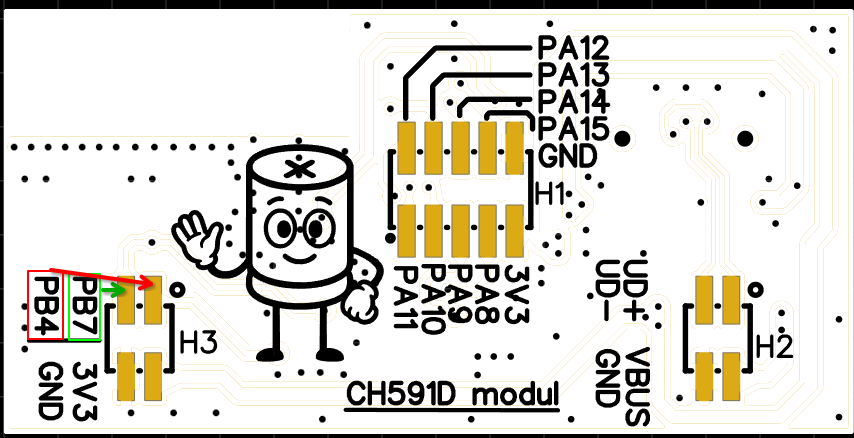

Connection & Pins

Pin Function
USB-C Power and USB communication
VCC USB VBUS
GND Ground
RX / TX UART communication
PB7 BOOT
GPIOx Multi-function (ADC, SPI)

Use Cases

  • Wireless controllers or macro keypads( IMK8K )

  • Portable BLE-enabled gadgets

  • USB-HID device development

  • IoT modules with BLE notifications

  • Development and testing of BLE applications


Software Support

Programming Steps:

1. Preparation

  • Download and install MounRiver Studio from: https://www.wch.cn

  • Create a new project for CH591D:

    • File → New → Project → CH591

    • Select target chip: CH591D

2. Write Code

  • Write your C code (e.g., LED blink).

  • Make sure you have a main() function.

  • Save your .c file in the src directory.

    or

  • Download example
  • Unzip
  • Moun River Studio > Open existing project
  • Edit ...
  • Generating HEX File

    • Right-click your project in MounRiver → Build Project

    • The generated .hex file will be located at:
      ProjectFolder/output/ch591.hex

3. USB DFU Boot Setup

  • CH591D can be programmed over USB if PB7 is pulled to GND during power-up.Steps:

    1. Press and hold the button BOOT1 (PB7 = GND)

    2. Plug in the USB cable

    3. Release the button

  • The device will show up as WCHISP (depends on OS)

4. Uploading to Chip



  • In MounRiver go to: Tools → WCHISPTool
    Or use standalone WCHISPTool

  • Load the HEX file and click Download

  • The firmware will be flashed over USB

  • wchisp - WCH ISP Tool in Rust

  • wchisp -tested on Kubuntu:

    Quick Guide to Program CH591D with wchisp

    1. Install dependencies

    bash
    sudo apt install libusb-1.0-0-dev

    2. Install wchisp tool

    bash

    cargo install wchisp --git https://github.com/ch32-rs/wchisp

    3. Add udev rule (if not done yet)



    Create /etc/udev/rules.d/50-wchisp.rules with:



    sudo nano /etc/udev/rules.d/50-wchisp.rules

    SUBSYSTEM=="usb", ATTRS{idVendor}=="4348", ATTRS{idProduct}=="55e0", MODE="0666"

    (Ctrl+OEnterCtrl+X)

    Reload rules:

    bash
    sudo udevadm control --reload-rules sudo udevadm trigger

    4. Connect CH591D via USB and check detection

    bash
    lsusb | grep 4348

    or

    bash
    dmesg | tail

    5. Check MCU info (verify access)

    bash
    wchisp info

    6. Flash hex/bin file

    Use absolute or relative path without leading ./:

    bash
    wchisp flash /path to/firmware.hex


Prototype Notice



NOTICE: This CH591D module is a development prototype. It may contain limitations, experimental firmware, or test components. Intended for development, debugging, and testing only.
