CAR-SUSPENSİON-SYSTEM

A basic suspension system was designed for a simple land vehicle, focusing only on essential functionality and minimal comfort. This is an experimental project. As someone who has previously worked on designs such as self check-in kiosks, this project represents one of my first simple attempts related to vehicle systems. Note: The part files could not be uploaded to the system, but you can access them via the following link: ???? https://grabcad.com/library/car-suspension-system01-1 Video: The step-by-step assembly of the suspension system can be followed in the video provided. You can assemble the parts in the same order shown in the video.

CAR-SUSPENSİON-SYSTEM

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

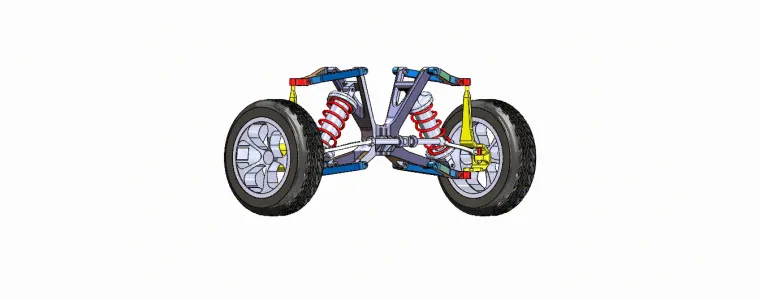

A basic suspension system was designed for a simple land vehicle, focusing only on essential functionality and minimal comfort. This is an experimental project. As someone who has previously worked on designs such as self check-in kiosks, this project represents one of my first simple attempts related to vehicle systems.

Note: The part files could not be uploaded to the system, but you can access them via the following link:
🔗 https://grabcad.com/library/car-suspension-system01-1

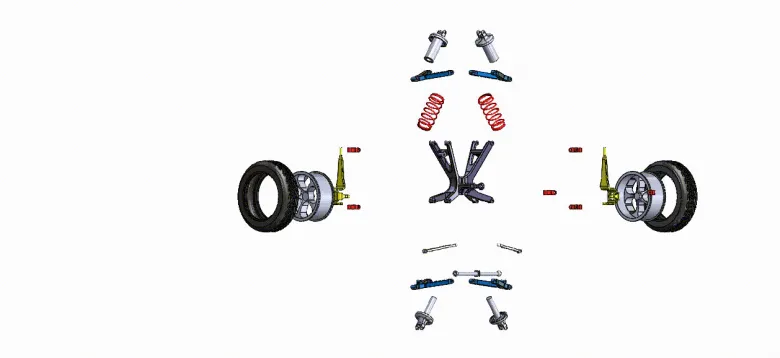

Video: The step-by-step assembly of the suspension system can be followed in the video provided. You can assemble the parts in the same order shown in the video.
