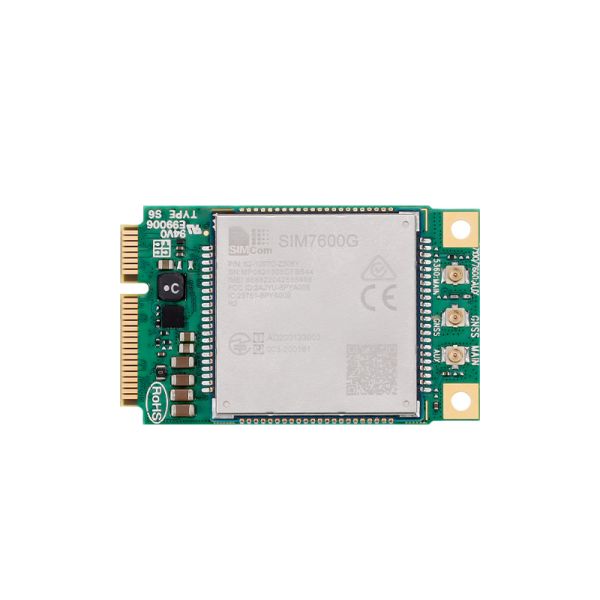

SIM7600G-PCIE 4G global frequency band module wireless GSM/GPRS/EDGE module IoT Module

Description

The SIM7600G is Multi-Band LTE-FDD/LTE-TDD/HSPA+ and GSM/GPRS/EDGE module solution in an SMT type that supports LTE CAT1 up to 10Mbps data transfer.

SIM7600G integrates multiple satellite high-precision positioning GNSS systems, built-in multiple network protocols, and supports mainstream operating system drivers (Windows, Linux, Android, etc. USB drivers) and software functions. AT commands are compatible with SIM750OISIM7600-H series modules.

The module provides much flexibility and ease of integration for customers' applications.

SIM7600G integrates the main industry-standard interfaces and has strong scalability, including rich UART, USB, l2C, GPIO, and other interfaces, suitable for major IoT applications such as telematics, monitoring equipment, CPE, industrial routers, and remote diagnosis.

Feature

• Mini-PCIE interface with strong compatibility
• Suitable for LTE, UMTS, and GSM networks with global coverage
• Abundant software functions: FOTA, TLS, VoLTE
• AT commands of the SIM7600G are compatible with the SIM7500/SIM7600-H series modules

Specification

• Supply voltage range: 3.4V ~ 4.2V, Typ: 3.8V
• Control Via AT Commands
• Operation temperature: -40℃ to +85℃
• LTE-FDD/LTE-TDD/UMTS/HSDPA/HSUPA/HSPA+/GSM/GPRS/EDGE
• 0 with High speed up to 480Mbps
• UART,(U)SIM card (1.8V /3.0V),MMC/SD,SDIO,ADC,I2C,GPIO
• Digital Audio through PCM
• Antenna: Support Primary/Rx-diversity/GNSS

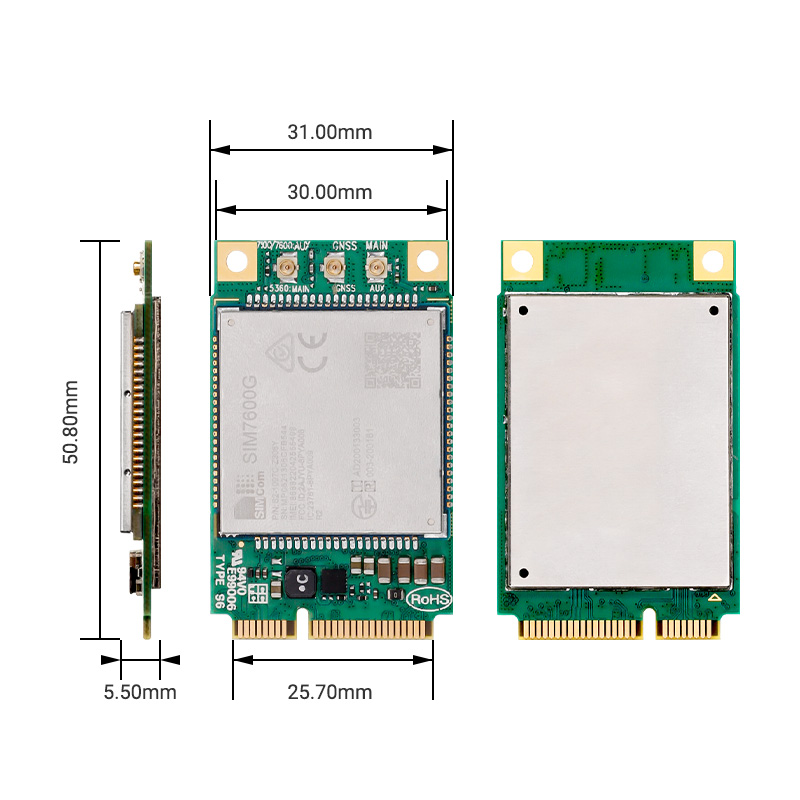

• Dimensions: 50.8*31.0*5.5mm
• Net Weight: 12.5g

Package List

• 1X SIM7600G-PCIE

Wiki & External links

• Datasheet
• Hardware Design
