TC Logger: Your Versatile USB Thermocouple Reader

TC Logger: Your Versatile USB Thermocouple Reader

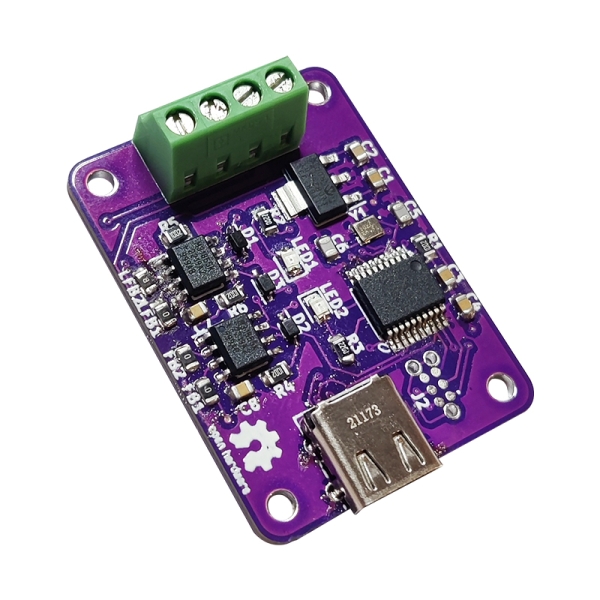

Need to measure temperature in your processes? The TC Logger is your solution. This easy-to-use device connects to your computer via USB and provides accurate thermocouple readings using a simple Python-based software.

Key Features:

• Dual-Channel Capability: Monitor two thermocouples type K [from -200 to 1260°C] simultaneously.
• High-Speed Data Transfer: Receive 5 samples per second for real-time data.
• Open-Source Flexibility: Customize and automate processes with your own libraries.
• Platform Compatibility: Works seamlessly on Linux, Windows, and Mac.
• Versatile Applications: Ideal for reflow ovens, chemical reactions, heating processes, and temperature monitoring in freezers or cooling units.

How it Works:

1. Connect your K-type thermocouples (not included) to the TC Logger.
2. Plug the device into your computer's USB port.

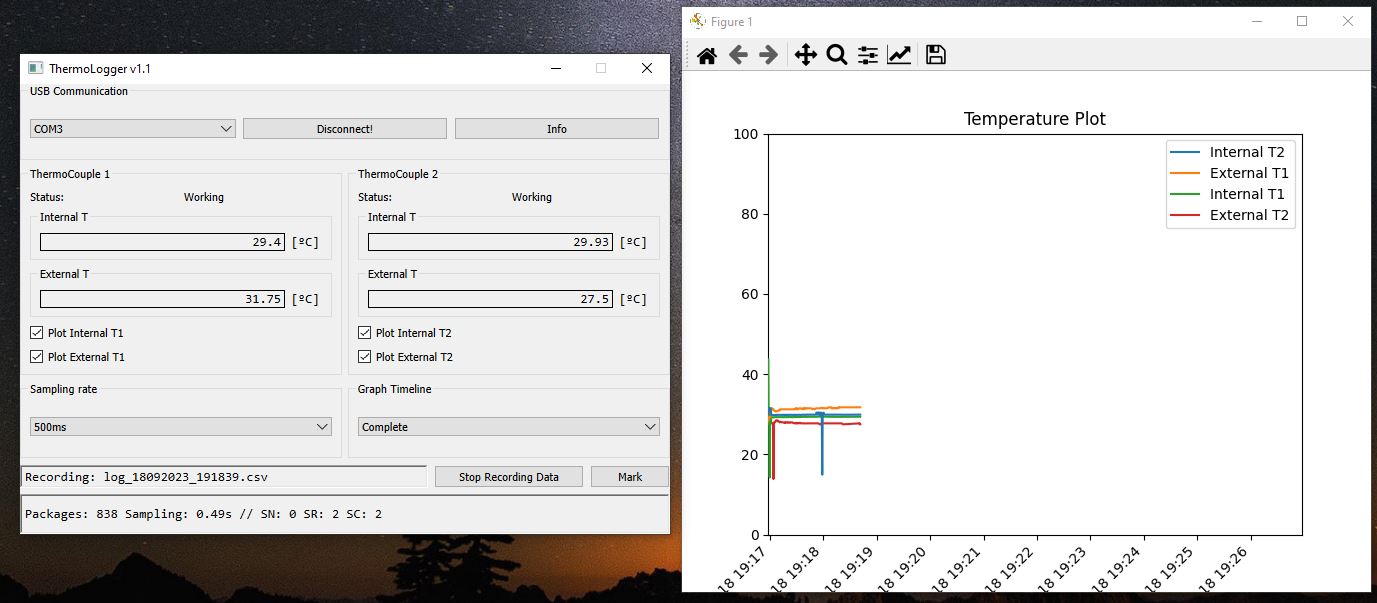

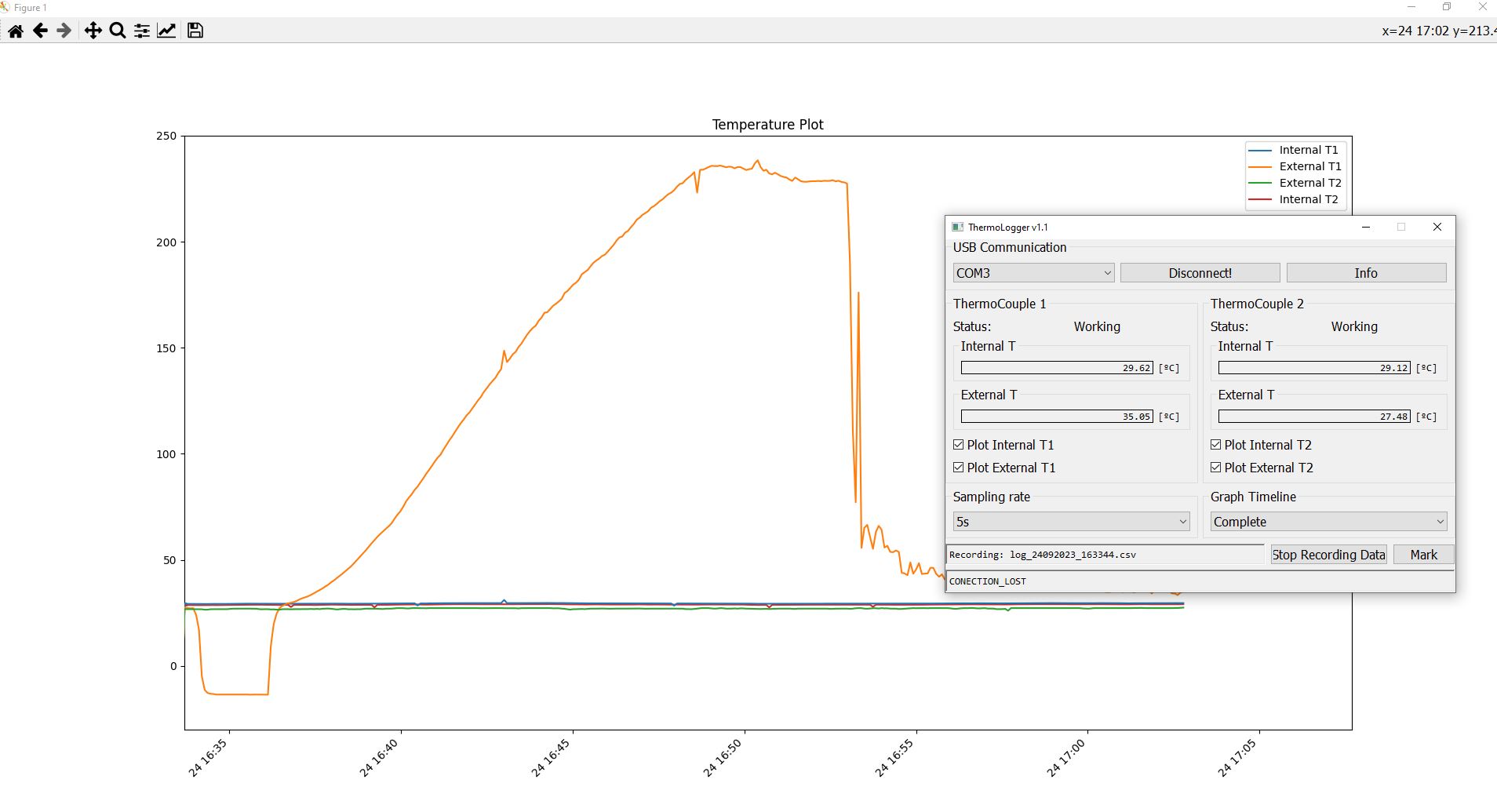

3. Use our user-friendly software or write your own applications using SCPI command

Manual (English): https://github.com/makingdevices/TC-Logger-Device/blob/main/Output_PDF/Manual_ThermoLoggerv1_0.pdf

Github Repository: https://github.com/makingdevices/TC-Logger-Device

Compiled software for Windows:  https://github.com/makingdevices/TC-Logger-Device/tree/main/PC%20Software/Windows%20Compiled
