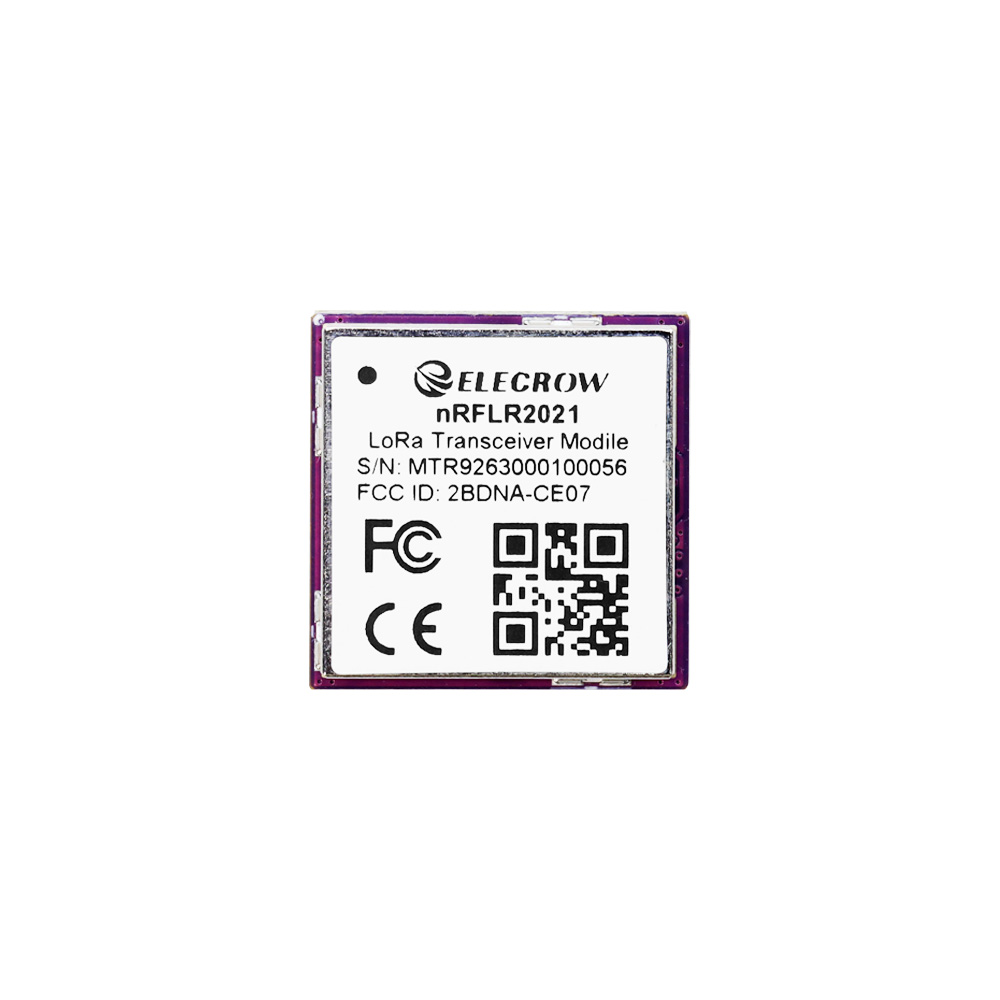

Elecrow nRFLR2021 Wireless Module-with nRF52840 & LR2021 Multi-Band & Multi-Protocol
$14.90
Availability:
In stock
SKU
LMM16221D
Brand
Elecrow
Weight
20g
Related Products:
[LoRa Gen 4] Semtech LR2021 with next-generation LoRa technology and FLRC up to 2.6 Mbps
[Multi-Band] Supports Sub-GHz, 2.4 GHz ISM, and licensed S-band for global IoT connectivity
[Multi-Protocol] Supports LoRaWAN 1.0.4 A/B/C, Amazon Sidewalk, Sigfox, Wi-SUN FSK, W-MBUS, and Z-Wave[nRF52840] Bluetooth LE, BLE Mesh, NFC, Thread, and Zigbee for short-range connectivity
[Easy Integration] AT commands, SDK support, UART interface, and low-power operation
[FCC ID, CE certification]
Frequently Bought Together
nRFLR2021 LoRa Module–nRF52840 & LR2021 for Multi-Band IoT Connectivity
The nRFLR2021 is a high-performance multi-protocol LoRa module that combines the Nordic nRF52840 MCU with Semtech’s fourth-generation LR2021 LoRa transceiver. It supports Sub-GHz, 2.4 GHz ISM, and licensed S-band connectivity for flexible terrestrial and satellite IoT applications. The module supports LoRaWAN 1.0.4 Class A, B, and C, as well as Amazon Sidewalk, Sigfox, Wi-SUN FSK, W-MBUS, and Z-Wave, while the nRF52840 adds Bluetooth LE, BLE Mesh, NFC, Thread, and Zigbee connectivity. With FLRC speeds up to 2.6 Mbps, built-in AT commands, SDK support, UART connectivity, and low-power operation, the nRFLR2021 is ideal for global IoT, remote sensing, asset tracking, industrial applications, and emergency communication.
Feature
- LoRa Transceiver: Semtech fourth-generation LR2021 with Sub-GHz, 2.4 GHz ISM, and licensed S-band support
- Multi-Protocol Support: LoRaWAN 1.0.4 Class A/B/C, Amazon Sidewalk, Sigfox, Wi-SUN FSK, W-MBUS, and Z-Wave
- Wireless Connectivity: nRF52840 with Bluetooth LE, BLE Mesh, NFC, Thread, and Zigbee
- High-Speed Communication: FLRC modulation with data rates up to 2.6 Mbps
- LoRa Modulation: Supports LoRa, (G)FSK, LR-FHSS, and FLRC modulation
- Frequency Range: Sub-GHz 150–960 MHz, 2.4 GHz ISM, and licensed S-band 1900–2200 MHz
- Long-Range Connectivity: Typical communication range of 5–8 km, with over 12 km possible under line-of-sight conditions
- Low Power: Chip-level sleep current as low as 470 nA and Sub-GHz receive current of 5.7 mA
- Easy Development: Built-in AT command firmware, SDK support, and UART interface for quick integration
- Industrial Grade: Operating temperature from -40°C to +85°C
- Certifications: FCC ID and CE (RED)
Specification
|
Processor |
nRF52840 processor, dual-core 32-bit, 64MHz main frequency, |
|
RF chip |
Semtech LR2021 Chip |
|
LoRa Specification |
|
|
Transmit Power TX |
22 dBm@Max(SUB-GHz), 12dBm(2.4 GHz) |
|
Receiving Sensitivity |
-141.5dBm @SF12/BW=125kHz |
|
Link Budget |
|
|
Demodulator |
Support LoRa/(G)FSK signal modulation，SF5~SF12; Support 150MHz-960MHz configuration; |
|
Data Transfer Rate |
LoRa 0.0458–125 kbps; FLRC 260 kbps–2.6 Mbps |
|
Other |
|
|
Frequency |
Sub-GHz 850–930 MHz, 2.4 GHz ISM, and S-band 1900–2200 MHz |
|
Communication Interface |
SPI(0~10Mbps) |
|
Lead Pin |
Such as SPI signal, VCC, multiple GND pins, NRST, ANT (Sub-GHz), ANT (2.4 GHz), multiple DIO pins, TX control, RX control, BUSY state, etc. |
|
Antenna |
SMT pins, impedance @50 Ω (Sub-GHz antenna pin + 2.4 GHz antenna pin) |
|
Reference Power Consumption |
Sleep power consumption: 1.4 µA Standby power consumption: 1.16mA Receive power consumption (including MCU)
Transmit power consumption (including MCU)
|
|
Communication Distance |
6~8km, maximum over 15km |
|
LoRaWAN Protocol |
Class A/B/C (compliant with LoRaWAN 1.0.4 specification) |
|
Operating Voltage |
1.8~3.7V |
|
Operating Temperature |
-40℃~+85℃, Industrial standard design |
|
Package Size |

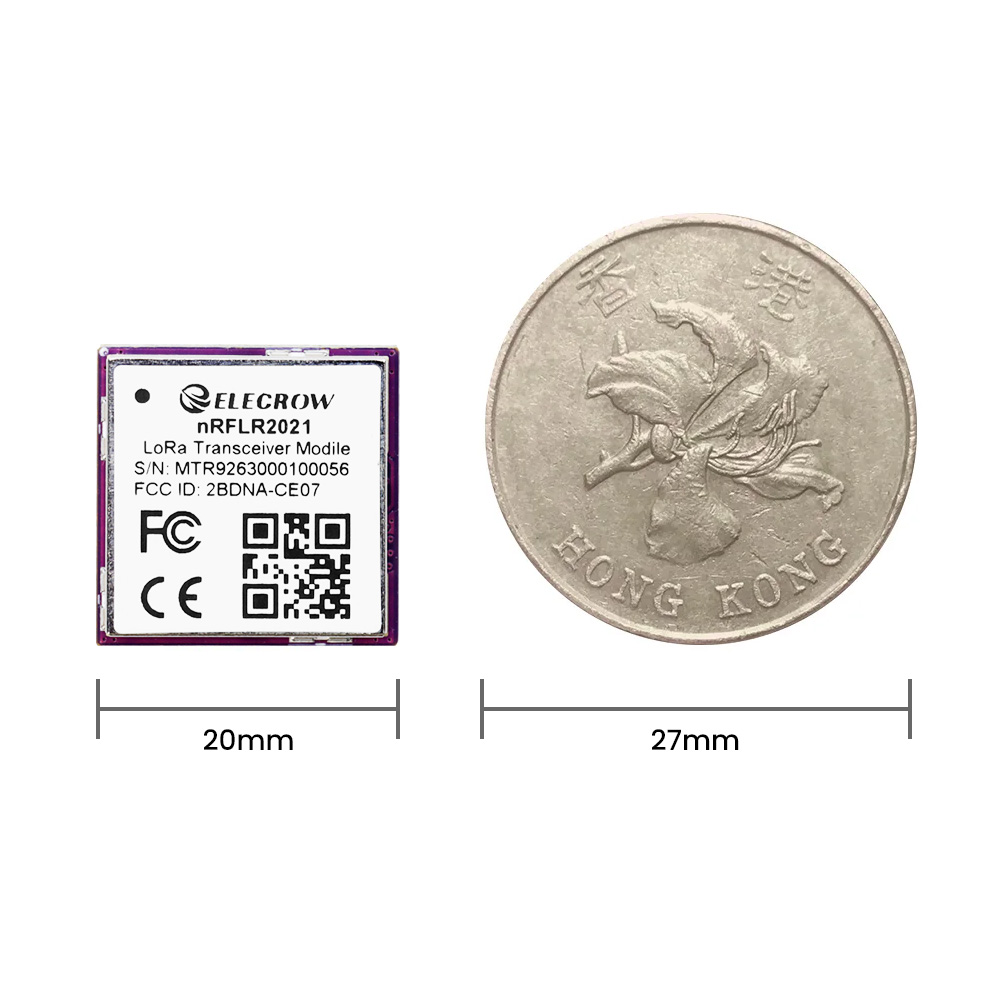

20*20*3.5mm, 80-Pin, SMT surface mount, LGA package, 1mm board thickness |
|
Weight |
3g |
Application scenarios
- Wireless video and image transmission
- Smart cities
- Smart agriculture
- Industrial automation
- Environmental monitoring
- Logistics management
- Meter reading
- Satellite IoT
- Marine monitoring
- Cross-border tracking
- Mesh networks
- Internet of Things (IoT)
Pin Definition
Package List
- 1x nRFLR2021 Wireless Transceiver Module
Wiki & External links
- Wiki
