10.1inch Smart Home Control Panel for Home Assistant,Ready-to-Use, Wall-Mounted Touchscreen
As low as
$129.00
Availability:
In stock
Only %1 left
SKU
DHE01101C
Weight
960g
Related Products:

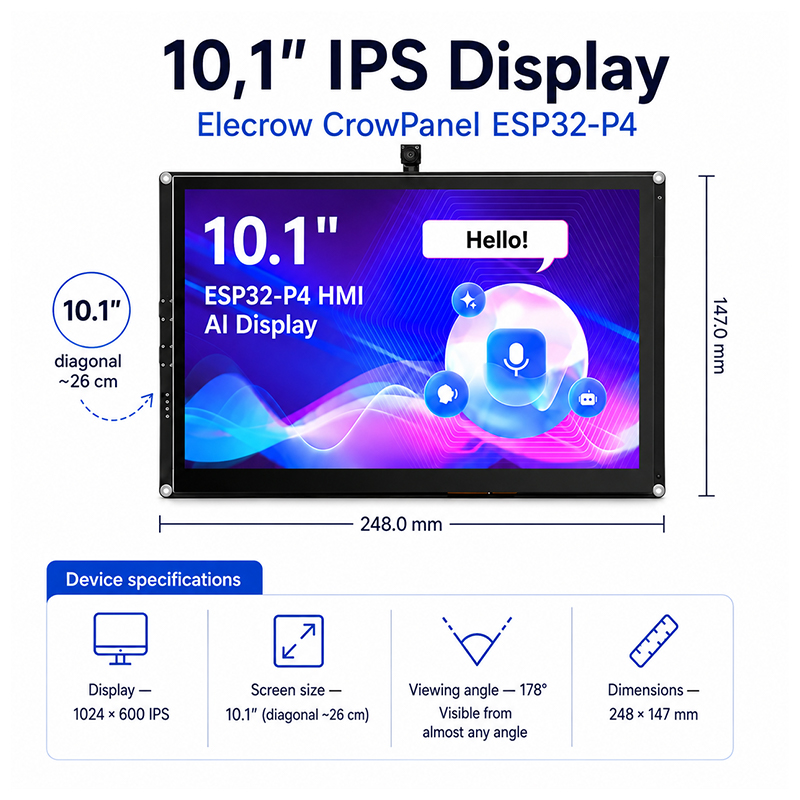

A ready-to-use 10.1" Home Assistant control panel based on the Elecrow CrowPanel ESP32-P4. Connect it to Wi-Fi, link it to your Home Assistant server, and access the same dashboard, devices, scenes, and automations you already use. Designed as a dedicated wall-mounted interface, it keeps your smart home controls always available without relying on a phone or laptop.
Note: This 10.1-inch screen does not include the housing.
Frequently Bought Together
CrowVi VF133 HD 1920x1080 Ultra Thin Display 13.3inch IPS Portable Monitor (non touchscreen)
was
$114.90
Special Price
$99.90

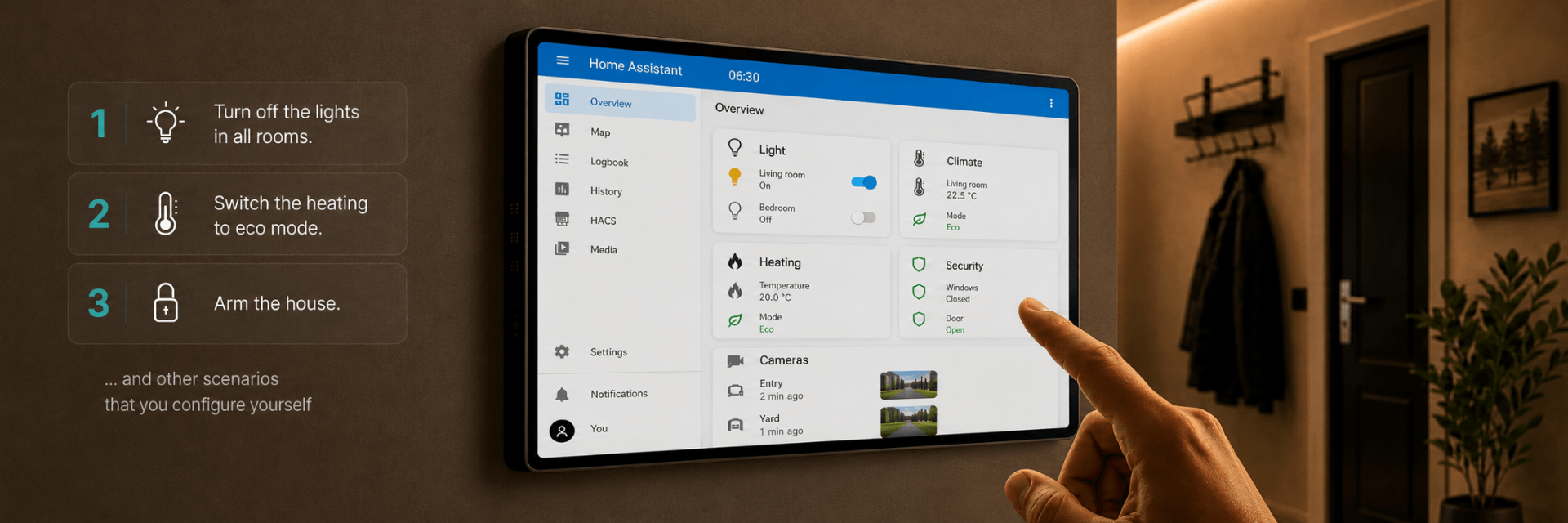

Your Home Assistant Dashboard, Always Within Reach
Turn your Home Assistant setup into a dedicated wall-mounted smart home control center.

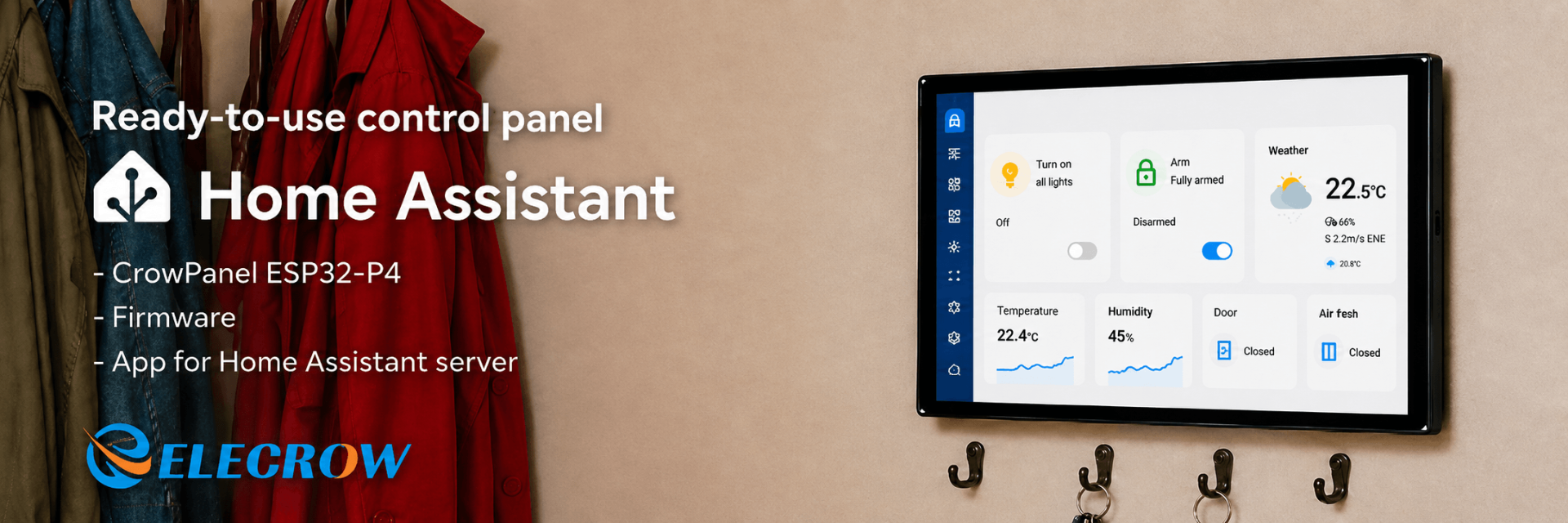

Powered by the CrowPanel Advanced 10.1-inch ESP32-P4 HMI platform, this Home Assistant control panel comes with the Home Assistant firmware pre-installed, so you don't need to develop your own ESP32 firmware or build a touchscreen interface from scratch.
Simply connect the panel to your Wi-Fi network, link it to your existing Home Assistant server, and access your dashboards, devices, scenes, and automations directly from the 10.1-inch touchscreen.
No coding. No custom HMI development. Just connect, configure, and control.
Key Feature
- ✅ Home Assistant Ready: Pre-installed firmware for a quick, hassle-free smart home setup
- ✅ Ready Out of the Box: No ESP32 programming or HMI development required
- ✅ 10.1" IPS Touchscreen: 1024 × 600 resolution with responsive capacitive touch
- ✅ Wi-Fi Connected: Connect directly to your existing Home Assistant server.
- ✅ No Custom HMI Development: Use your existing dashboards, cards, scenes, and controls.
- ✅ Powerful ESP32-P4: Dual-core RISC-V processor for smooth and responsive HMI performance
- ✅ Wi-Fi 6 & Bluetooth: Fast and reliable wireless connectivity for smart home applications
- ✅ Built-in Audio: Dual speakers and microphone for interactive control and future voice applications
- ✅ Rich Expansion: GPIO, UART, I²C, USB-C, SD card, and optional wireless module support

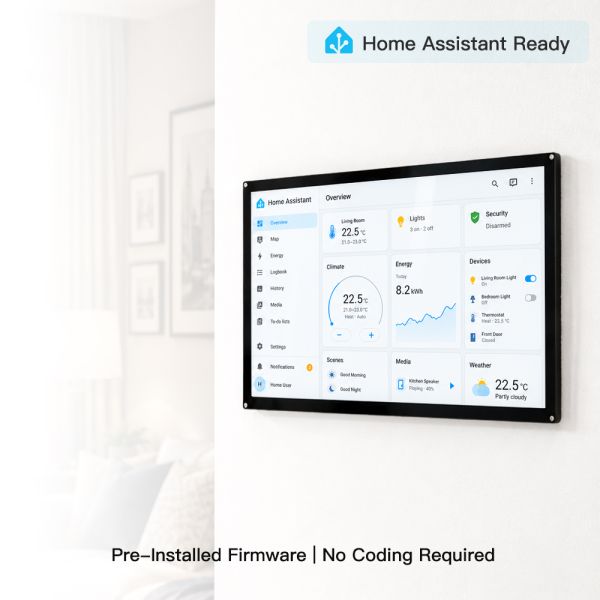

Designed for a Permanent Control Point
A dedicated panel removes the need to use a phone or tablet for frequently used Home Assistant controls.
It connects to your existing Home Assistant system over Wi-Fi and displays the interface you already use.
Dashboards, cards, entities, scenes and controls remain configured in Home Assistant, so changes to your dashboard are reflected on the panel without maintaining a separate interface.
Who Is It For?
For Home Assistant users who want a dedicated touchscreen without developing their own ESP32 firmware or maintaining a separate HMI application.
Perfect for
- Smart Home Wall Panels
- Lighting & Scene Control
- Temperature & Climate Monitoring
- Energy Monitoring
- EV Charging Control
- Solar Energy Dashboards
- Security & Sensor Dashboards
- Home & Building Automation
Setup
Initial setup requires only:
Connect the panel to your Wi-Fi network.
Enter your Home Assistant connection details on the panel.
Install the supplied companion application on the Home Assistant server.
No firmware development or LVGL interface development is required.
Requirements
Existing Home Assistant server
Wi-Fi access
Home Assistant access credentials
The panel does not replace the Home Assistant server and is not a standalone smart-home hub.

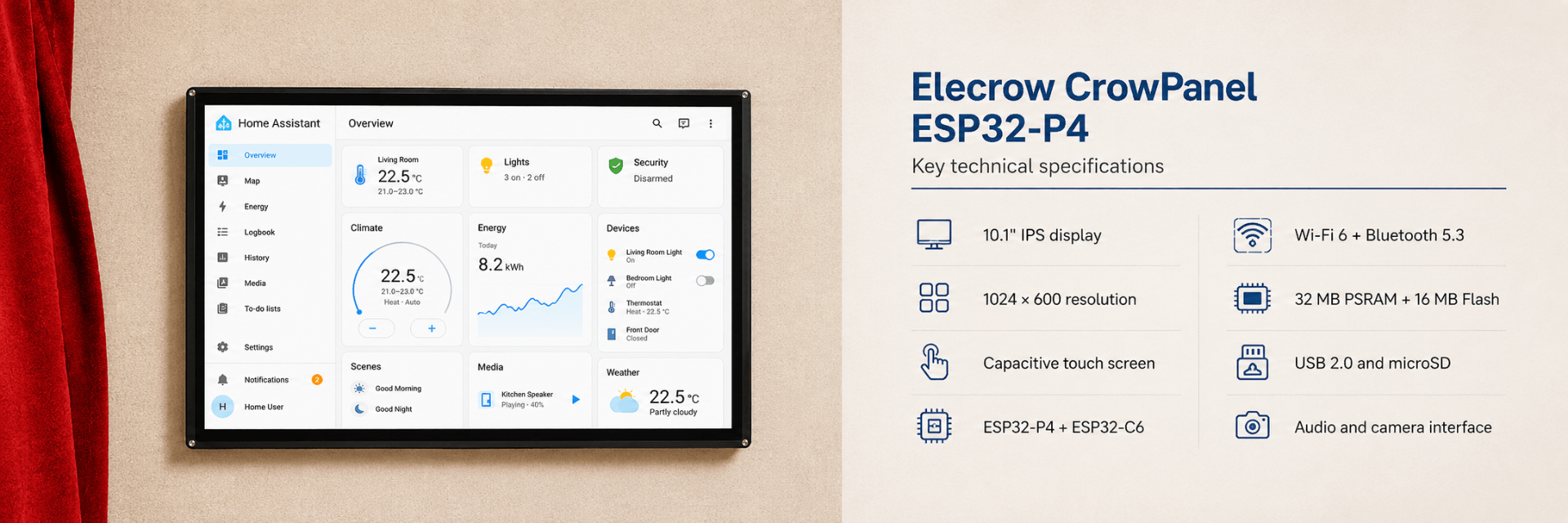

Specification
|
Main Chip-ESP32-P4NRW32 |
|
|
CPU/SoC |
ESP32-P4 RISC-V 32-bit dual-core processor for HP systems, running at up to 400 MHz; RISC-V 32-bit single-core processor for LP systems, running at up to 40 MHz |
|
System Memory |
|
|
Memory |
|
|
Development Environment |
ESP-IDF, Arduino IDE |
|
Firmware |
Pre-installed Home Assistant Firmware (Ready-to-use) |
|
Screen |
|
|
Size |
10.1 inch |
|
Resolution |
1024*600 |
|
Display Panel |
IPS Panel |
|
Touch Panel |
Capacitive Touch, Single/5-point Touch |
|
Viewing Angle |
178° |
|
Brightness |
400 cd/m²(Typ.) |
|
Color Depth |
16.7M (8-bit) |
|
Wireless Communication - Onboard Antenna |
|
|
WiFi |
Support 2.4GHz(Wi-Fi6), 802.11 b/g/n |
|
Bluetooth |
Supports Bluetooth 5.3 and BLE |
|
Other |
Zigbee、LoRa、nRF2401、Matter、Thread and Wi-Fi Halow (Optional) |
|
Interface/Function |
|
|
Interface |
USB2.0, UART, I2C, GPIO female headers, SD card holder, battery socket, speaker jack, camera header, module female headers, etc. |
|
Function |
Audio amplifier, battery charge management, USB to UART, microphones, dual speakers, etc. |
|
Speaker Connector |
|
|
Model |
BX-PH 2.0-2PWT |
|
Number of Pins |
1x2P |
|
Pin Pitch |
2mm |
|
Dimensions(L*W*H) |
8*8.5*5.6mm |
|
Mounting Type |
SMT Right Angle |
|
Button/LED Indicator |
|
|
Reset Button |
Yes, press to reset the device |
|
Boot Button |
Yes, press and hold the power button to burn the program |
|
Power Button |
Switch On/Off |
|
PWR |
Device power on/off indication |
|
CHG |
Lithium battery charging status, Low battery state |
|
Other |
|
|
Installation method |
All around mounting holes(M3 3.2mm) |
|
Operating temperature |
-20~70 °C |
|
Storage temperature |
-30~80 °C |
|
Power Input |
5V/2A, USB or UART terminal |
|
Dimensions |
248*147mm |
What You Will Get
- 1x ESP32-P4 10.1inch display for Home Assistant (Without Case)
