5inch 800*480 Resolution Mini Display for Raspberry Pi Compatible with Jetson Nano, Beaglebone
$30.90
Availability:
In stock
SKU
DIS05490T
Brand
elecrow
Weight
240g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought
Send B2B inquiries to info@elecrow.com
[5 Inch LCD Display] Featuring an 800×480 resolution LCD panel with a 60Hz refresh rate, this display provides 5-point capacitive touch;
[Driver-free, Plug and Play] Use HD communication, no need to install drivers, easy to use;
[Wide Compatibility] The touch screen supports the entire Raspberry Pi lineup, Banana Pi, Jetson Nano, and standard HD devices. It also can be used as a secondary screen for a TV box, a Switch gaming display, or an extra Windows monitor
[Audio Support & Easy Controls] Equipped with a 3.5mm headphone jack and a 4P speaker interface for external audio.[Support Multiple SBCs] Support various SBCs like Raspberry Pi, beagleBone, Jetson Nano. It also supports five-point touch on Windows 11/10/8/7, When paired with Raspberry Pi running Raspbian or Ubuntu.
[Connect with Raspberry Pi] Four nut seats on the back, can easily install the Raspberry Pi.
Frequently Bought Together
Description
This is a 5-inch HDMI-Compatible capacitive touch monitor with 800*480 resolution.
It has a headphone port and speaker interface, users can choose the appropriate audio output method according to their own needs; it uses a capacitive USB touch screen, and the touch function can be realized by simply powering on the USB touch port. There is no need to install a driver, just plug and play. Very convenient to use.
The four corner holes on the back allow you to mount the monitor to other devices. The back of the monitor is equipped with 4 nut seats for mounting and fixing the Raspberry Pi. Using the HD port to transmit signals, it is compatible with a variety of systems such as Raspbian, Ubantu, Windows, Android, etc.
If you have screen customization needs, please contact us at service@elecrow.com.
Quick Click to where you are interested: #Feature, #Specification, #Documents.

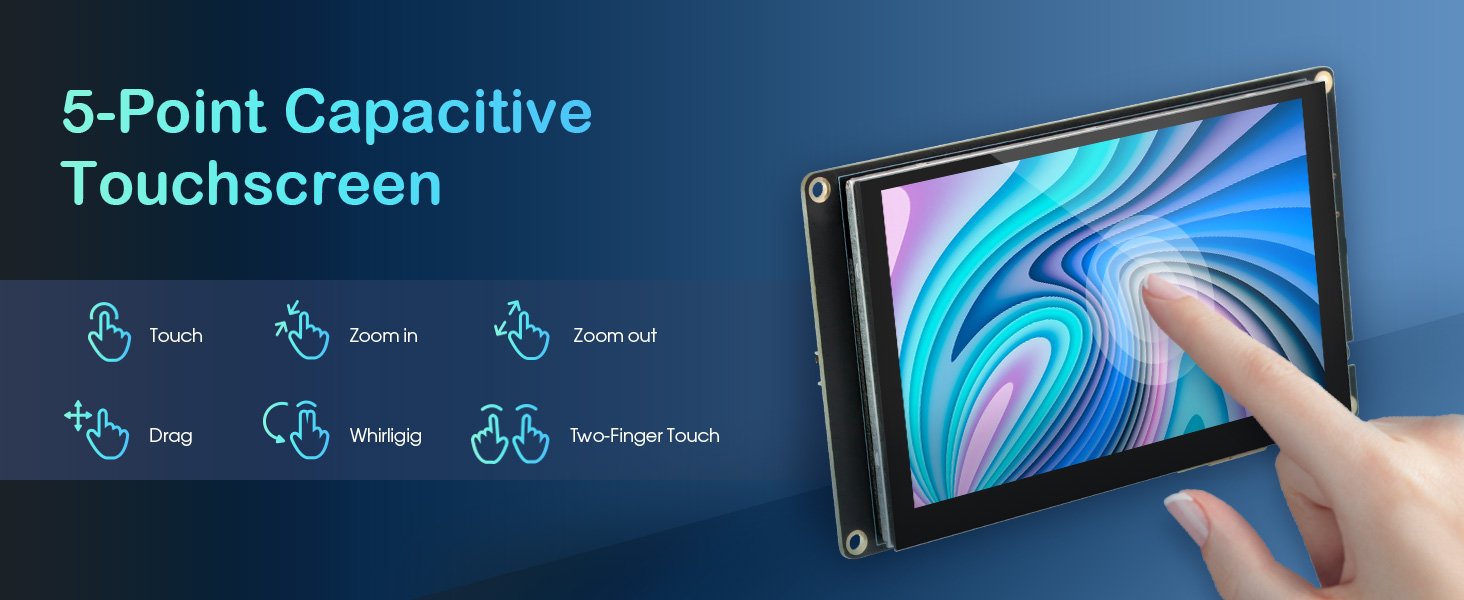

5-Point Capacitive Touch Screen, Smooth and Accurate.
Support Multiple Systems, Plug and Play

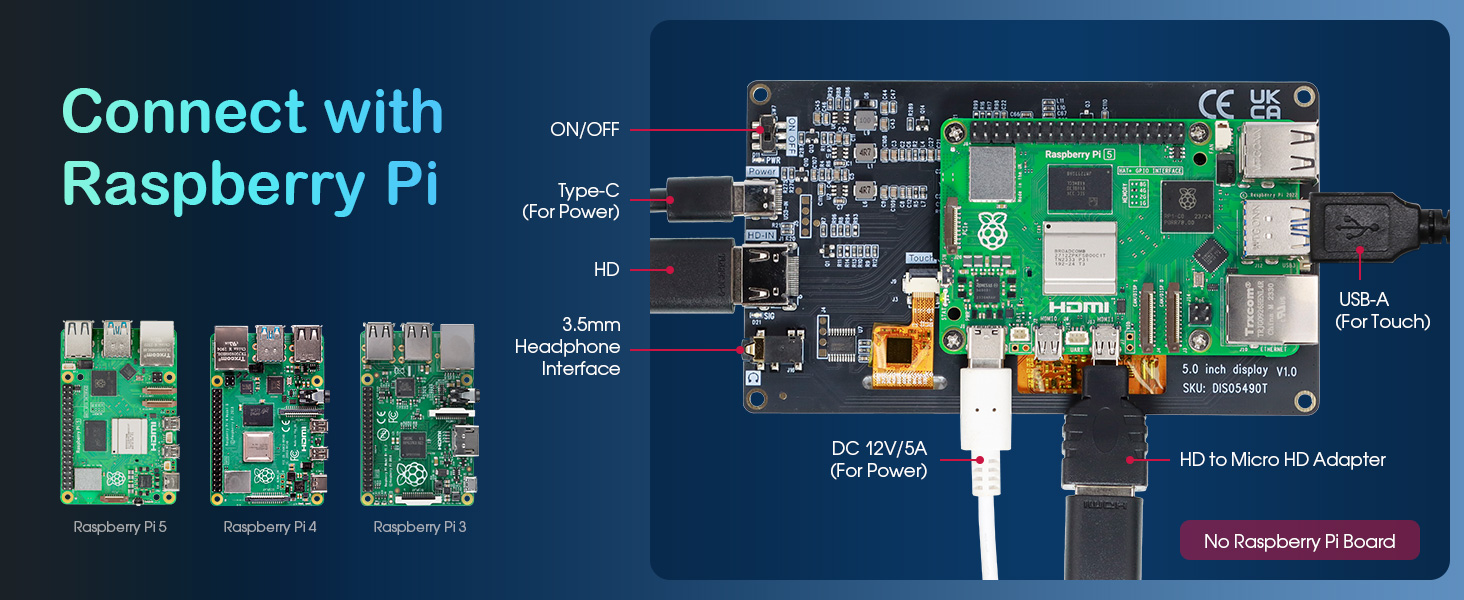

Connect With Raspberry Pi
Multiple Display Modes
Interface Details
Package Details

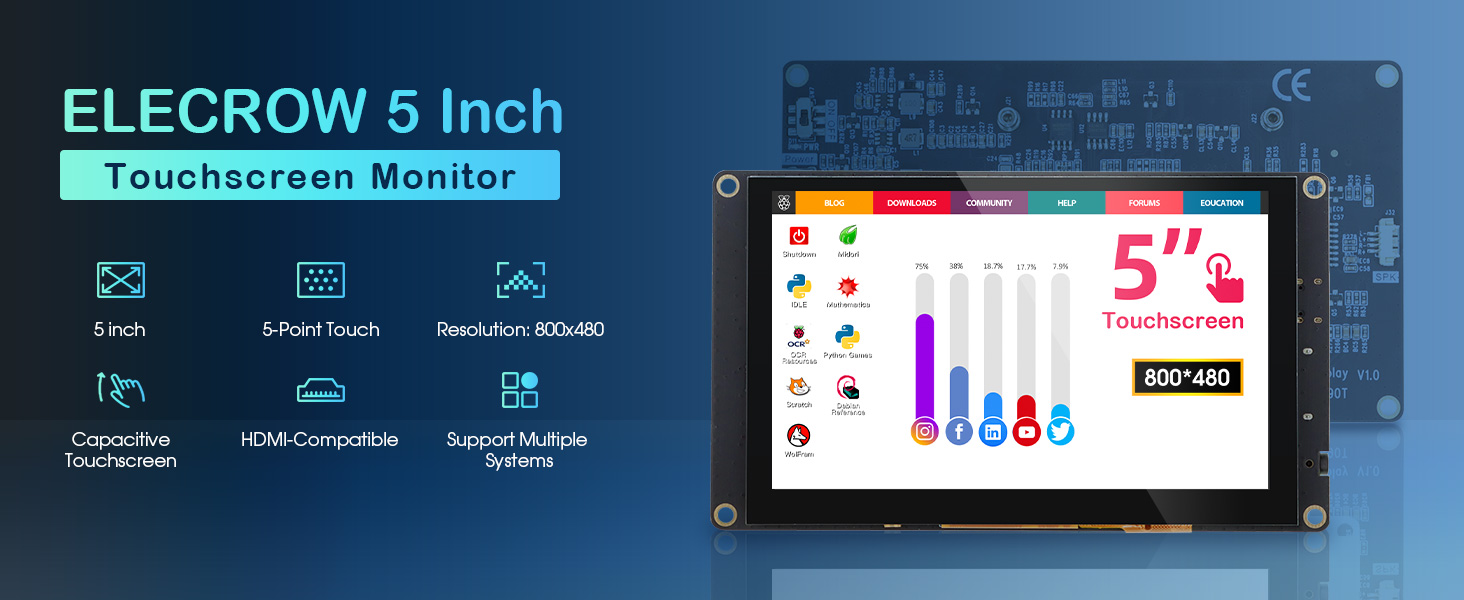

Feature
- 5.0 Inch LCD Display with 800*480 resolution and 5 point capacitive touch;
- Built-in speaker and headphone jack;
- Compatible with multiple systems(Raspbian、Ubuntu、Windows、Android、MAC OS andChrome OS);
- Compatible with Raspberry Pi 5/4/4B/3/3B;
- Plug and play, no need to install drivers;
- Four nut seats on the back for easy installation of the Raspberry Pi.
Specification
|
Screen Size |
5.0 Inch |
|
Screen Type |
TN Panel |
|
Display |
TFT-LCD |
|
Resolution |
800 x 480 |
|
Brightness |
300cd/m² |
|
Touch Screen Type |
5point Capacitive Touch |
|
Driver IC |
ILI6122 & ILI5960 |
|
External Power Supply |
DC5V-2A |
|
Backlight Switch |
Toggle up/down |
|
Interface |
Power input & USB touch interface; 4P speaker interface ; 3.5MM headphone interface |
|
Active Area (W x H) |
108*65mm |
|
Module Size (L x W x H) |
137*80*14 (mm) |
|
Net Weight |
140g |

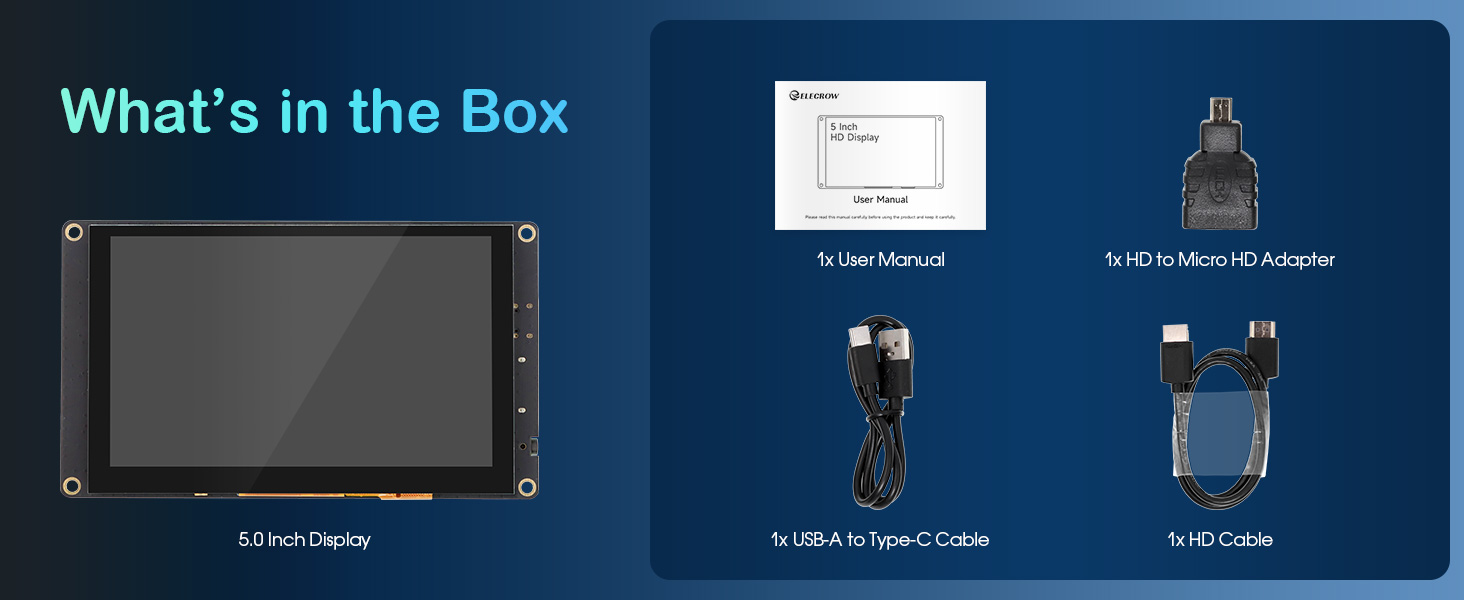

Package List
- 1x 5 Inch Display
- 1x HD Cable
- 1x USB-A to Type-C Cable
- 1x HD to Mini HD Adapter
- 1x User Manual
Wiki & External links
