ADE9000 Breakout

ADE9000 Polyphase Energy Monitor Breakout

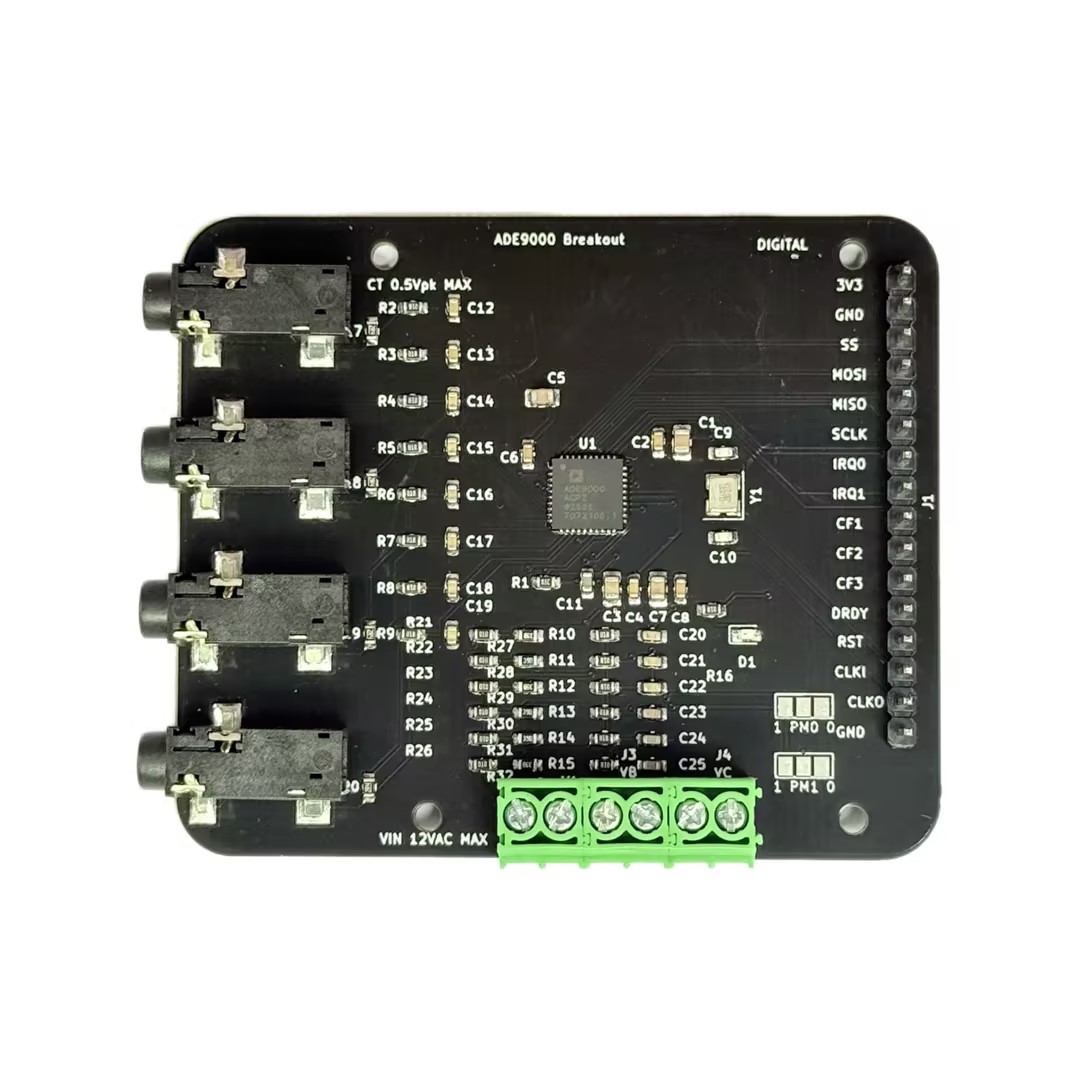

This assembled development board provides convenient access to the Analog Devices ADE9000 polyphase energy-metering and power-quality IC for firmware development, calibration experiments, and low-voltage bench testing.

Key features

• Three differential voltage channels and four differential current channels for phases A, B, C, and neutral.
• Four 3.5 mm stereo current-transformer inputs with 2.4 ohm burden support for current-output YHDC clamps.
• Three pluggable screw-terminal voltage inputs for isolated low-voltage AC sources.
• 1 kohm / 22 nF anti-alias filtering on all seven analog input pairs.
• 24.576 MHz crystal, reference and supply decoupling, reset network, and activity LED.
• 3.3 V SPI interface with interrupt, calibration-frequency, data-ready, clock, reset, and power-mode signals.
• Open-hardware KiCad design files, purchasing BOM, 3D models, and example integration resources.
• Maintained Arduino Library contributing to open-source : Add ESP32-S3 and Arduino-ESP32 3.x support by whatnick · Pull Request #1 · voelkerb/ADE9000

Applications

Use the board to evaluate polyphase energy measurement, RMS voltage and current, active and reactive power, waveform sampling, zero-crossing detection, calibration outputs, and power-quality monitoring.

Package contents

• One fully assembled ADE9000 breakout board.
• Current-transformer jacks, voltage terminals, filtering and burden networks, crystal, and support circuitry.
• Pin headers supplied unsoldered where applicable.

Safety: This is a development board, not a certified energy meter. Use correctly rated external isolation and protection. Never connect the board or a breadboard directly to hazardous mains voltage. Current transformers, isolated voltage sources, and host controller are not included.
