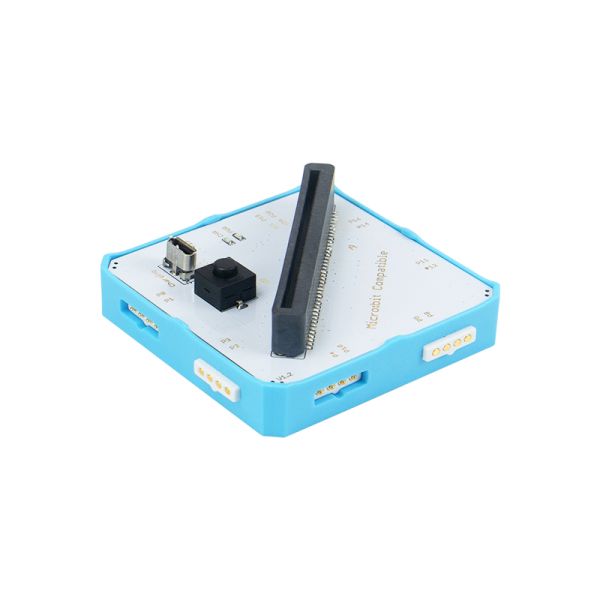

Crowbits-Microbit Compatible

What is the Crowbits-Microbit Compatible?

The Crowbits-Microbit Compatible can input and output various data, various digital quantities, and module quantities.

How does it work?

Through the 40Pin micro: bit slot, the function pins of Crowbits-Microbit are led out, which is convenient for docking with other functional modules and becomes a communication bridge between each module and the main control board, thereby achieving data reception and send between each module and the main control board,  and realize data feedback and control of each module.

How to use it?

The micro: bit motherboard needs to be inserted into the main control board to be used. The pins can be connected to other input and output magnetic modules, which can be controlled by programming the micro: bit.

Specification

• OutputVoltage: 3.3V DC
• Charging method: DC 5V Micro USB
• Battery capacity: 650mAh
• Dimensions: 56(L)*56(W)*13(H)mm
