DC-DC LDO 3.3

What is it?

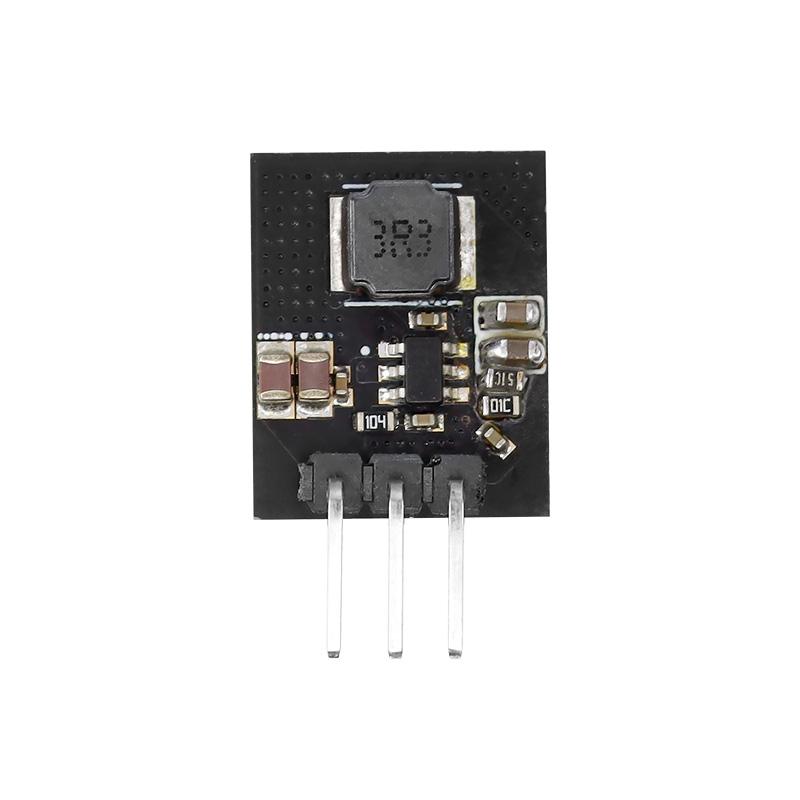

DC-DC LDO is a DC-DC Module with a TO-220 form factor. This is designed to replace existing Linear regulators in use, like LM7805, etc, and is pin-to-pin compatible. The main advantage of using this DC-DC is to reduce the heat generated in the Linear Regulator (LDO) and reduce the size of the design as now you will not need to put a separate heatsink on your board.

Pinout

enter image description here

Specifications

Uses Texas Instruments DC-DC Converter IC
Compact size: 16mm x 13mm
Input Voltage: up to 15V DC
Output Voltage: 3.3V
Peak Efficiency: >91%
Continuous Current: 1.8A for 3.3V
Peak Current: 3A
DC-DC operates at ~600Khz
Protections: O/P short circuit(hiccup)/Thermal
