Official Raspberry Pi 500+, powerful desktop computer

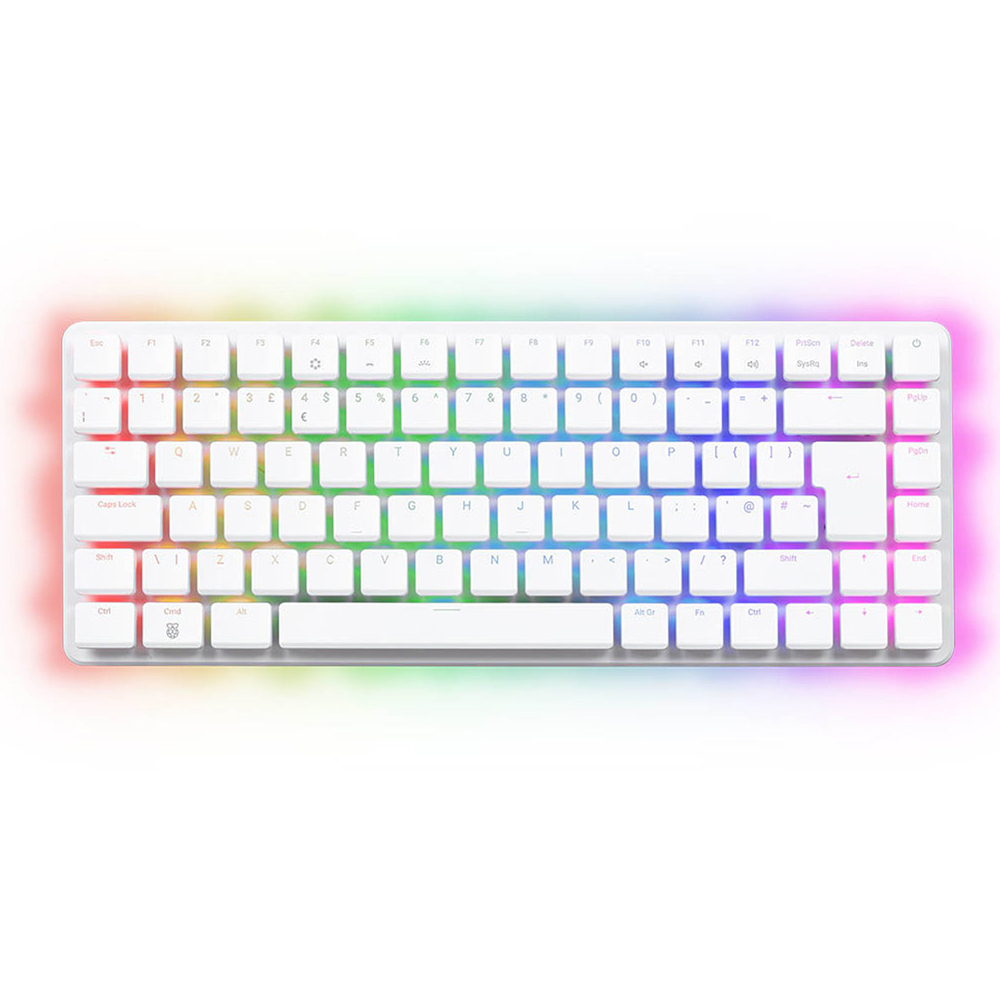

All-in-One Design & High-Quality Keyboard: Raspbery Pi 500+

The Raspberry Pi 500+ is an all-in-one personal computer built into a compact keyboard, now updated with a high-quality mechanical keyboard featuring individually addressable RGB backlighting and replaceable key switches. Compared to the original Raspberry Pi 500, this version doubles the memory capacity to 16GB of LPDDR4X-4267 SDRAM. It includes a pre-loaded 256GB SSD, providing faster system responsiveness and expanded storage for applications, development, and desktop workloads.

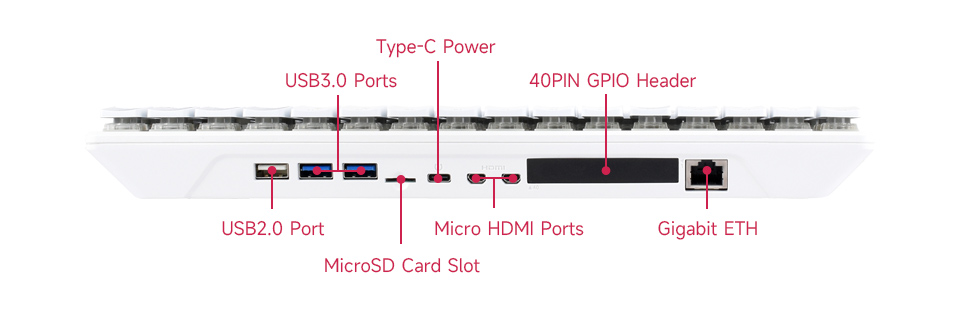

Powered by a 2.4GHz quad-core 64-bit Arm Cortex-A76 processor with VideoCore VII graphics, the Raspberry Pi 500+ supports dual micro-HDMI outputs, Gigabit Ethernet, 802.11ac Wi-Fi, and Bluetooth 5.0. I/O includes two USB 3.0 ports, one USB 2.0 port, a 40-pin GPIO header for hardware expansion, and a microSD slot with SDR104 and command-queuing support. The system is designed for 5V/5A operation via a USB-C power supply, and includes a power button integrated into the keyboard chassis. The mechanical keyboard combines desktop usability with the flexibility of the Raspberry Pi ecosystem.

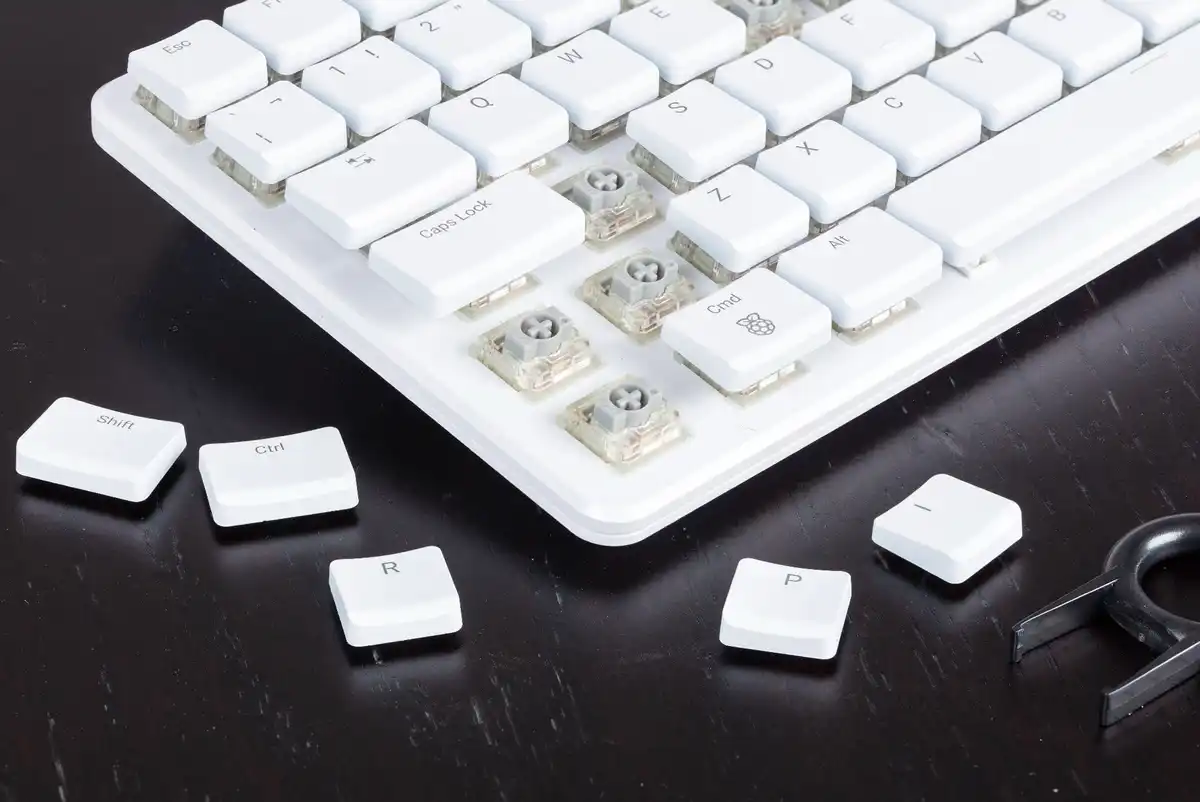

Get clicky with it

Raspberry Pi 500+ comes equipped with Gateron KS-33 Blue low-profile switches, which have long travel times and quick actuation for a comfortable and smooth typing experience. Want a more custom look? A keycap puller is included so that you can change the default keys.

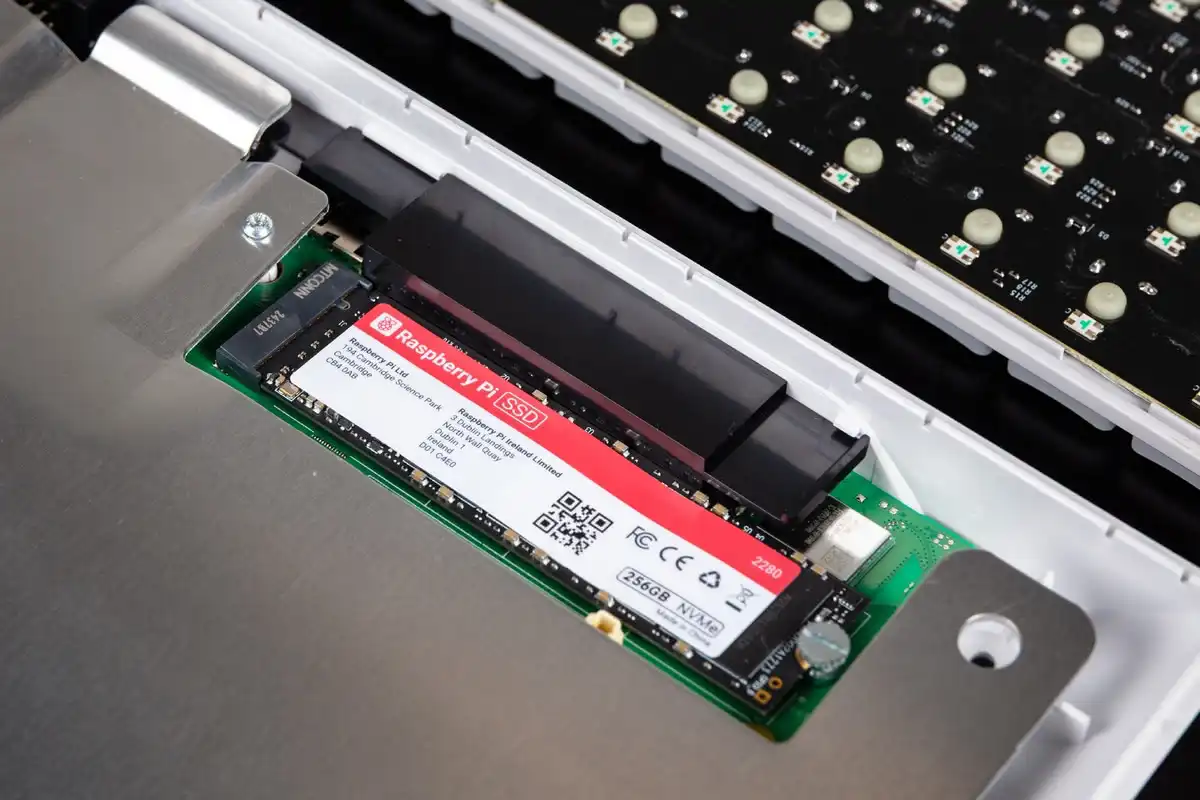

Enjoy the drive

Raspberry Pi 500+ is fitted with a 256GB Raspberry Pi SSD for super-fast boot times and quick, reliable data transfer. Using the included tool to open the case, you can swap the SSD to increase storage capacity.

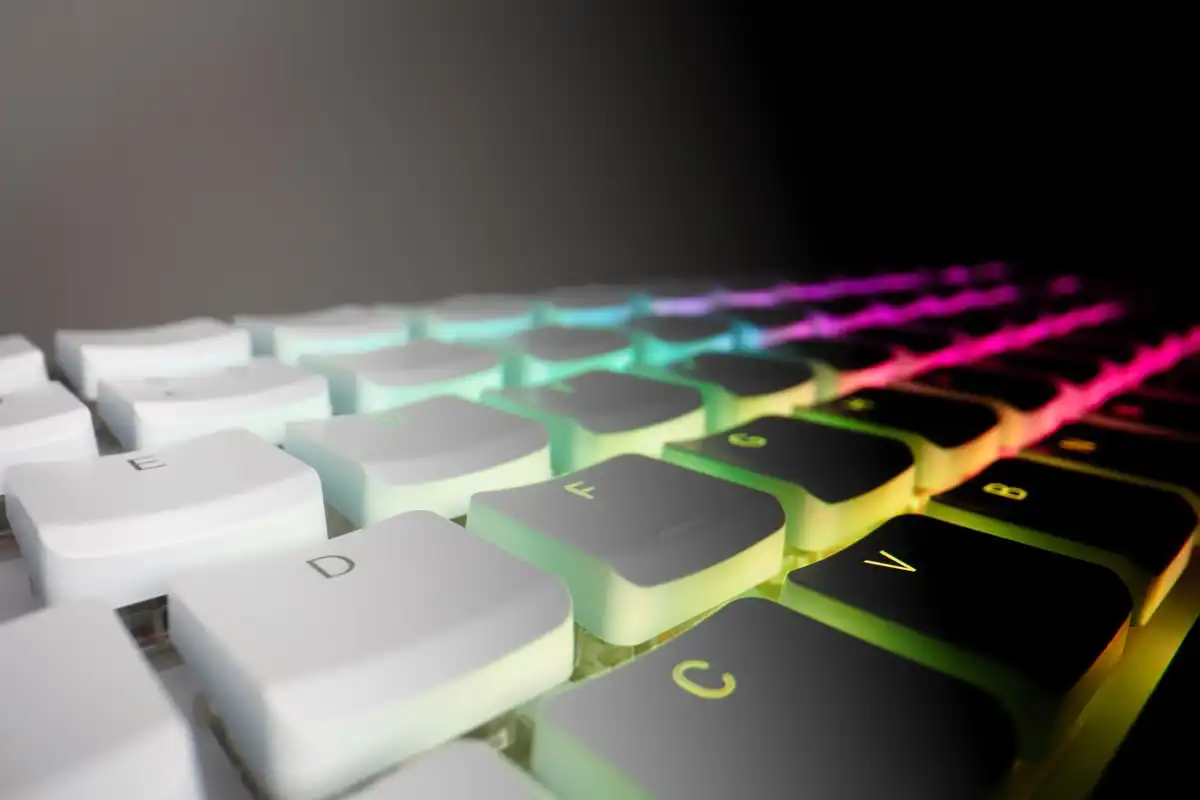

The light’s fantastic

Raspberry Pi 500+ features bright, crisp LEDs set beneath the mechanical switches. Cycle through the preset patterns or individually program the LEDs for a truly custom look.

Feature

• All-in-One Design & High-Quality Keyboard

The Raspberry Pi 500+ packs a complete personal computer into a compact keyboard enclosure. It features a high-quality mechanical keyboard with individually addressable RGB backlighting and replaceable mechanical switches.

• Significant Performance Boost

The memory capacity has doubled compared to the Raspberry Pi 500, reaching 16GB LPDDR4X memory, and is pre-installed with a 256GB SSD solid-state drive, which significantly improves system response speed, multi-tasking capabilities and storage space.

• Powerful Core Processing

Equipped with a 2.4GHz quad-core 64-bit Arm Cortex-A76 processor and VideoCore VII graphics card, it provides powerful desktop computing and graphics performance and supports dual micro HDMI output.

• Comprehensive Connectivity & Expansion

It provides Gigabit Ethernet, 802.11ac Wi-Fi, Bluetooth 5.0, multiple USB ports and a standard 40-pin GPIO interface, ensuring excellent peripheral device connectivity and hardware expandability.

• Convenient Desktop Experience

Designed to be powered via USB-C, with a power button integrated into the keyboard body, providing the same convenient power-up experience as a traditional desktop PC

Specification

Package List

• 1x Raspberry Pi 500+ only

Wiki & External links

• Product Brief
