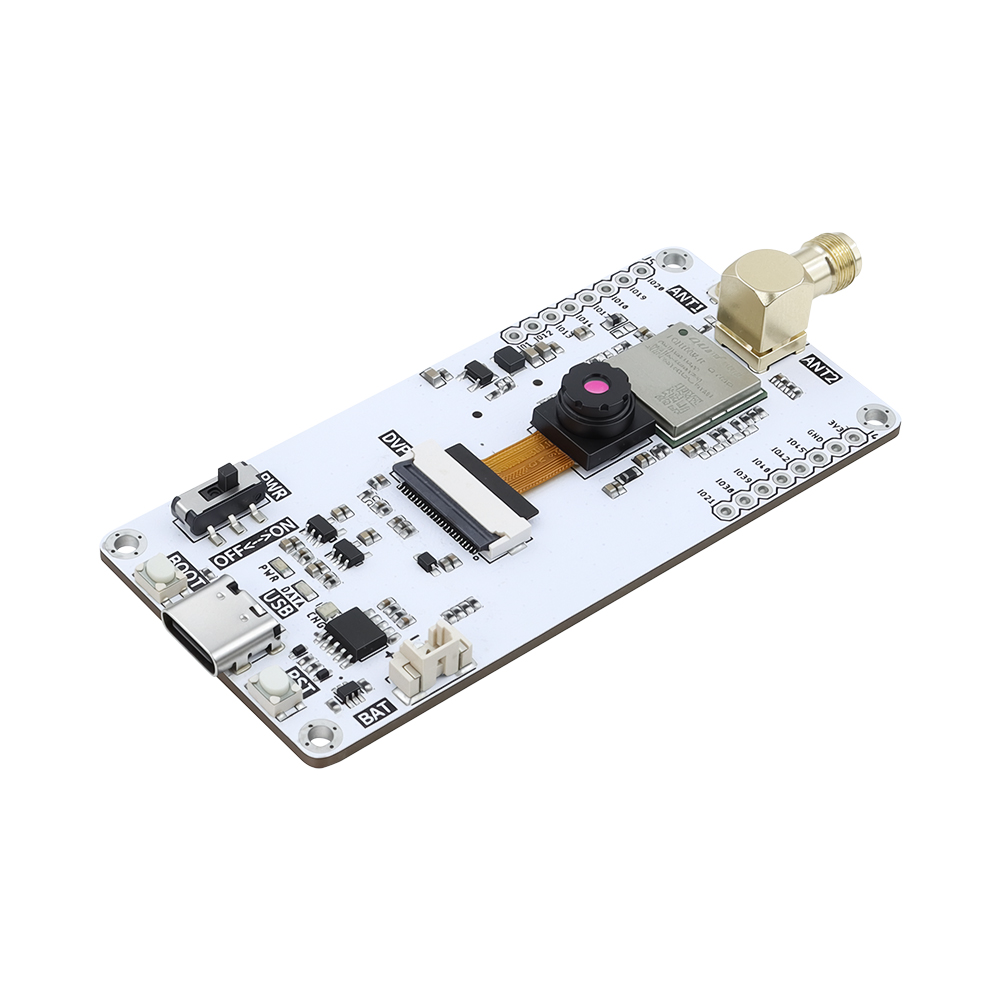

ESP32 Wi-Fi HaLow Module with 2MP Camera | 32Mbps High Speed | Long-distance transmission-915MHz
$42.00
Availability:
In stock
SKU
LMM15303D2
Brand
Elecrow
Weight
100g
Related Products:
[Long-Distance High-Speed Transmission] Wi-Fi HaLow technology, theoretical distance 1-2km, speed up to 32Mbps
[Strong Penetration, Low Power Consumption] Sub-1GHz band, strong wall penetration, low power consumption design, suitable for outdoor deployment
[Integrated HD Camera] 2MP camera, supports image scaling and compression, real-time long-distance video transmission
[Triple Wireless Interconnection] 2.4G Wi-Fi + Bluetooth + Wi-Fi HaLow, adaptable to various networking scenarios
[Rich Interface Expansion] SD card slot + Type-C interface, multiple protections including voltage regulation, ESD, short circuit, and RF shielding
[Quick Development and Start-up] Compatible with Arduino environment, complete examples, and technical documentation
Frequently Bought Together
ESP32 Wi-Fi HaLow Camera Module
What Is Wi-Fi HaLow?
Wi-Fi HaLow (based on the IEEE 802.11ah) is a low-power, long-range wireless communication technology designed by the Wi-Fi Alliance specifically for IoT scenarios. Compared to traditional Wi-Fi technology, it operates in the Sub-1 GHz unlicensed frequency band (mainly the 900MHz band). This frequency offers stronger diffraction and penetration, enabling it to effectively pass through buildings, vegetation, and other obstacles, thereby overcoming the inherent limitations of traditional Wi-Fi in coverage and environmental penetration.
The ESP32 Wi-Fi HaLow Camera Module is designed to overcome the range limitations of traditional Wi-Fi while providing sufficient bandwidth for long-distance video transmission. Based on the ESP32-S3 and IEEE 802.11ah (Wi-Fi HaLow) technology, it is designed specifically for long-range, high-speed IoT applications. It addresses the limited range and wall penetration of traditional Wi-Fi while offering much higher bandwidth than low-data-rate technologies such as LoRa. Theoretically, it supports a transmission distance of over 1 kilometer and speeds up to 32 Mbps, making it ideal for IoT applications requiring reliable, high-performance connectivity.
The module integrates a 2-megapixel camera (supporting automatic exposure/gain, image scaling and compression, etc.), an SD card slot, a Type-C interface, and triple wireless connectivity (Wi-Fi + Bluetooth + Wi-Fi HaLow). It features a low-power design and strong signal penetration. Supporting the Arduino development environment, an ideal development platform for makers, IoT engineers, and long-range wireless applications.
Jump to: #Feature, #Specification, #Package List, #Documents.
Designed and manufactured by Elecrow, customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com
Hardware Overview
Feature
- Long-distance, high-speed transmission: Built on IEEE 802.11ah technology, it operates in the Sub-1 GHz band and supports up to 32 Mbps data rates for long-distance wireless communication.
- 1+ km Wireless Transmission: Designed for long-range applications such as remote monitoring, outdoor IoT, and wireless video transmission. Actual range depends on the deployment environment and antenna configuration.
- Strong penetration and low power consumption: Low-frequency radio waves have excellent penetration capabilities, effectively passing through obstacles such as walls and trees; its low-power design makes it suitable for outdoor deployment.
- Integrated HD Camera: Features an onboard 2MP camera with automatic exposure control, automatic gain control, image scaling, and compression. It can capture and transmit video images in real-time over long distances, suitable for security monitoring, remote inspection, and other scenarios.
- Triple Wireless Connectivity: Combines 2.4 GHz Wi-Fi, Bluetooth 5.0 LE, and Wi-Fi HaLow for local connectivity, device control, debugging, and long-range communication.

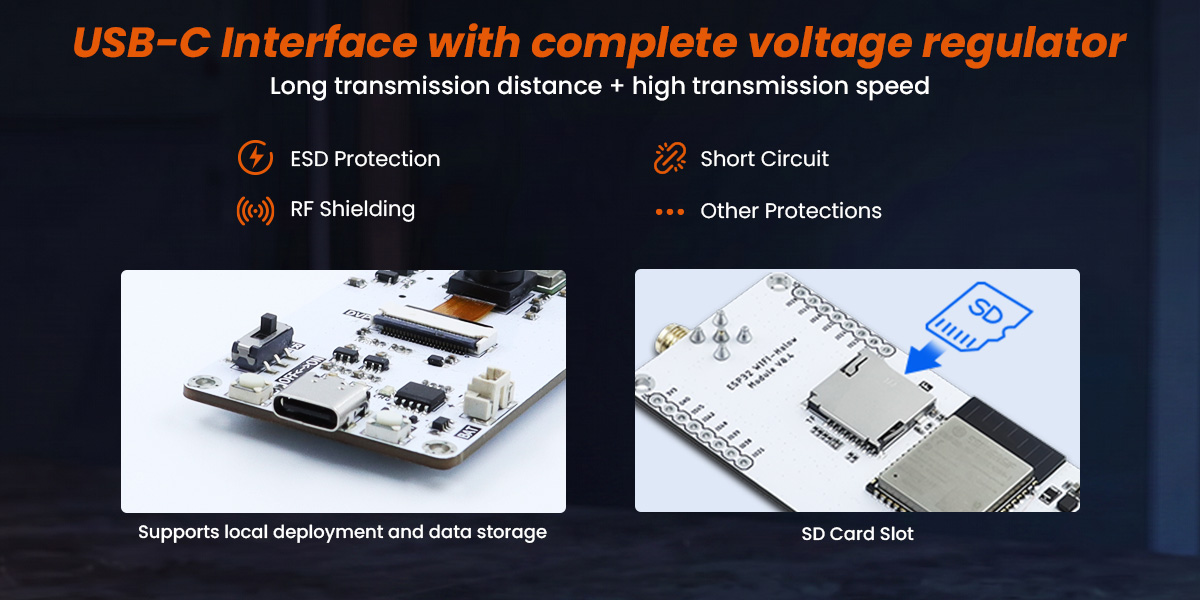

- Abundant Storage and Interfaces: Onboard SD card slot supports local data storage and offline deployment; utilizes a Type-C USB interface, integrating a voltage regulator, ESD protection, short-circuit protection, and RF shielding to ensure stable operation in complex environments.
Scenarios
- HaLow (Wi-Fi) communication terminal applications;
- Wi-Fi HaLow device development;
- Long-distance video data transmission;
- Smart home and smart city;
- Industrial automation control;
- Wi-Fi HaLow gateways and proximity sensors;
- Wi-Fi/Ethernet/Wi-Fi HaLow extension and bridging;
- Suburban internet access and LAN construction;
- Remote camera monitoring and network blind spot coverage.
Specification
|
Main Chip |
|
|
CPU/SoC |
ESP32-S3-WROOM-1-N16R8 |
|
System memory |
8 MB Octal SPI PSRAM |
|
Storage |
16 MB Quad SPI Flash |
|
Development Environment |
Arduino |
|
Wi-Fi HaLow Communication |
|
|
Chip |
FGH100M |
|
Wi-Fi Protocol |
IEEE 802.11ah |
|
Wi-Fi Band |
850~950 MHz |
|
Wi-Fi Modulation Method |
Wi-Fi HaLow Modulation | OFDM, BPSK, QPSK, 16-QAM, 64-QAM |
|
Encryption mode |
|
|
Work mode |
AP/ STA |
|
Physical layer maximum rate |
802.11ah: 32.5 Mbps |
|
Other Communication |
|
|
WiFi |
Supports 802.11 b/g/n protocols (2.4 GHz band), with a maximum speed of 150 Mbps. |
|
Bluetooth |
Bluetooth 5.0 + LE (Low Power), supports Mesh networking and long-range mode (Coded PHY) |
|
RF performance |
|
|
Hardware |
|
|
Camera |
2MP Camera, DVP interface |
|
Interface |
Type-C Interface, Camera Interface, Wi-Fi HaLow Antenna Interface, Micro SD Card Slot, I/O connector pins, BAT Interface (3.7V, PH2.0) |
|
Toggle Switch |
Power on/off |
|
Reset Button |
Restart program/Reset after system crash |
|
BOOT Button |
Use when burning firmware |
|
LED Indicator |
|
|
Power Indicator Light |
Red. Indicates normal power-on status |
|
HaLow Indicator Light |
Blue When in HaLow data transmission mode, the blue light flashes at 1-second intervals. |
|
Charging Indicator |
Red/Green Red indicates charging; green indicates fully charged |
|
Other |
|
|
Power supply voltage |
Typical 5.0 V |
|
I/O port power supply voltage |
Typical 3.3 V |
|
Installation Method |
Screw hole fixing(M2 Screw), handheld |
|
Operating Temperature |
-30°C to +65°C |
|
Storage Temperature |
-30°C to +65°C |
|
Size |
36 × 84 mm (excluding antenna) |
|
Net Weight |
25g |

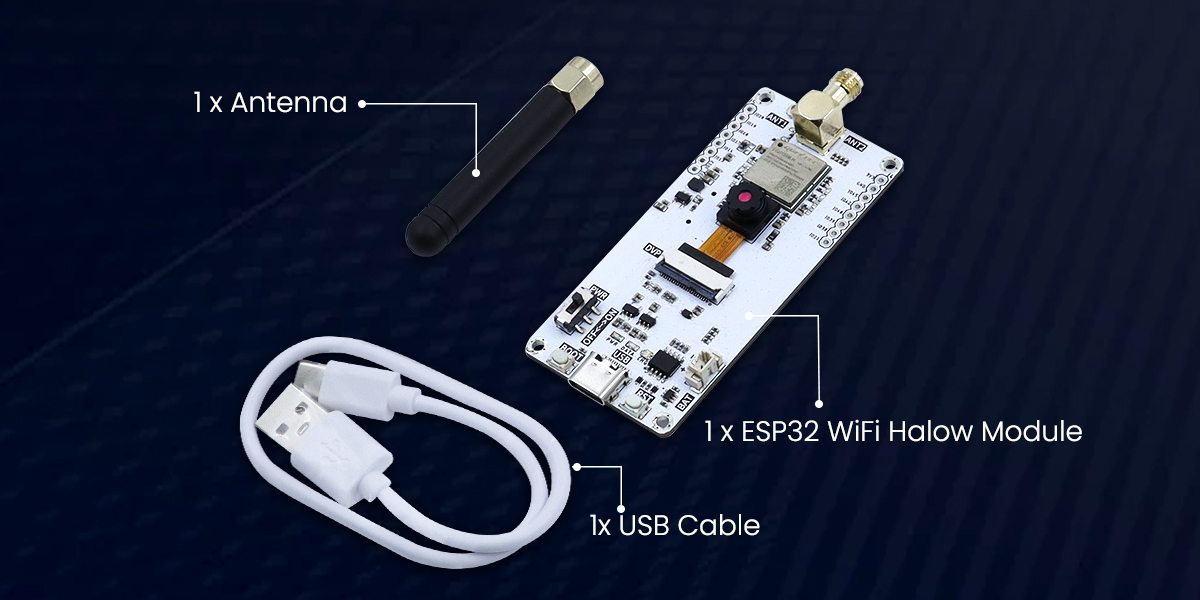

Package List
- 1x ESP32 Wi-Fi Halow Module
- 1x Antenna
- 1x USB Cable
