LCR-TC1 TFT Backlight Transistor Tester

SKU
ACC11012T
In stock
$19.90
Weight
180
-
+
With this product, you earn 20 loyalty points.
Overview

It can be widely used to detect NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs and batteries, etc.

Description:

It can be widely used to detect NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs and batteries, etc.

It can also be used to detect infrared waveforms and Zener diodes. In addition, it has a self-calibration function.

After detection, aim the infrared remote control at the "IR" light, and then press the button on the remote control. If the detector successfully decodes, it will display the data code and infrared waveform.

It is worth mentioning that it has the function of one-click operation, automatically detects and shuts down. You can also press the Multi-function button to turn off the detector.

Place the pin of the component in the corresponding area, and then toggle the small handle, the detector will automatically test it, and the final result will be clearly displayed on the backlight TFT screen







Feature:

Measurement results display in TFT graphic (160x128)

One-button operation

Auto power off (timeout setting)

Built-in high-capacity rechargeable lithium-ion battery

Lithium-ion battery voltage detection

Support Chinese and English

Warning: Built-in lithium-ion battery, it is strictly forbidden to immerse the tester in water or near heat source!

Warning: For your personal safety, please strictly observe the specifications and precautions for using lithium-ion batteries!









Specification:

Size: 70*90*26m/ 2.71x3.58x1.10 inch

Display: TFT Screen, Color Screen

Diode Range: less than 4.5V

Zener Diode:Transistor Detect Area: 0.01-4.5V

Zener Diode Detect Area: 0.01-30V

Triac Range: IGT less than 6mA

Capacitance: 25pF-100mF

Resistor: 0.01-50MΩ

Inductance: 0.01mH-20H

Power Voltage: 3.7V

Battery: 0.1-4.5V

Power: Built-in Rechargeable Lithium Battery

Item Size: 8.8 x 7 x 2.8cm

Item Weight: 111.5g / 3.94oz

Package Size: 14.5 x 12 x 2.7cm / 5.71 x 4.73 x 1.06in

Package Weight: 114g / 4.02oz

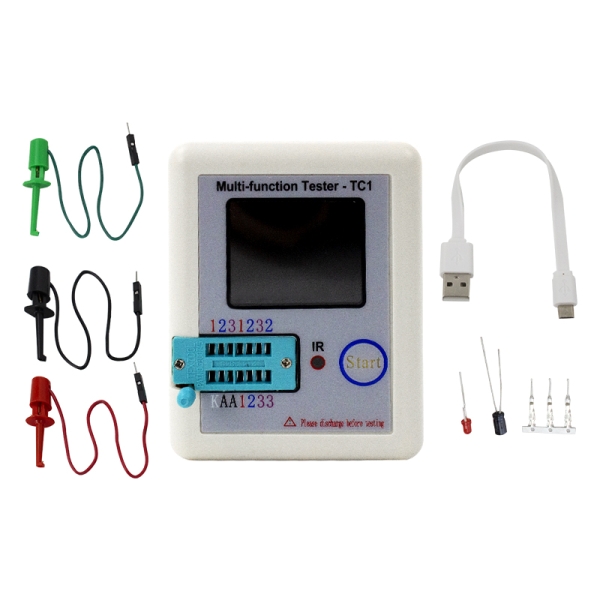

Package List:

1 x TFT transistor tester
1 x Electronic component set (randomly sent)
3 x Test hooks
1 x Cable
