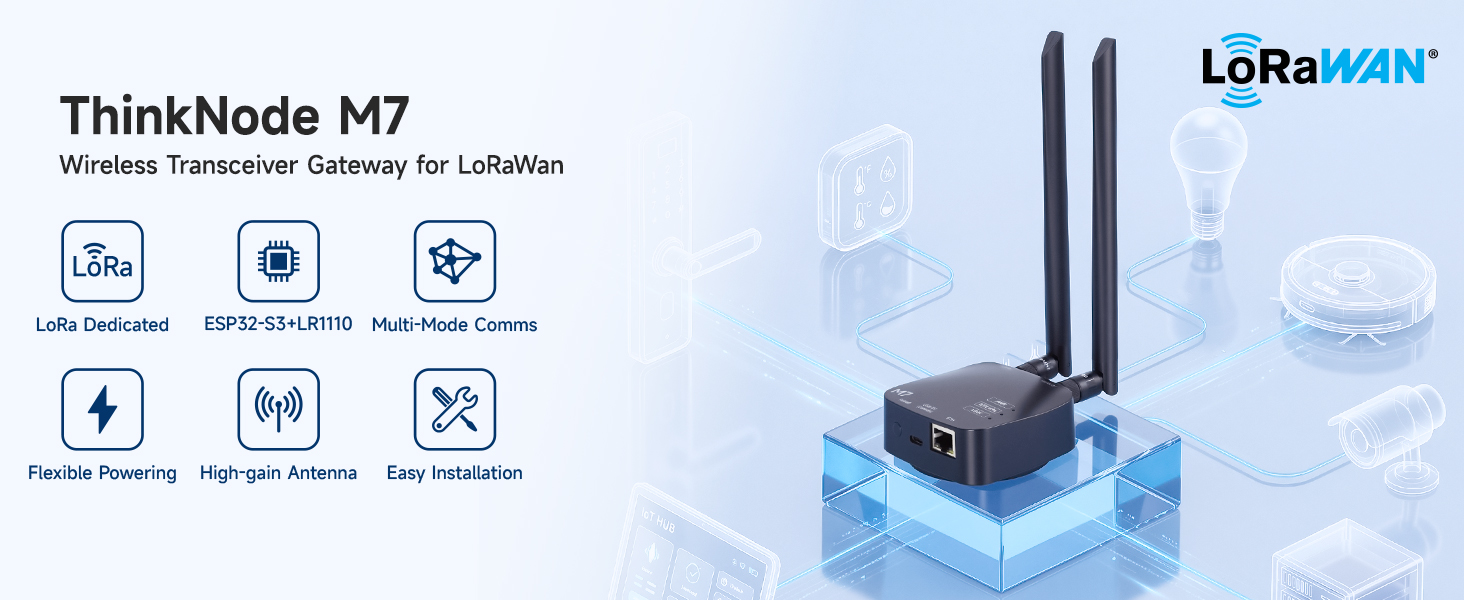

ThinkNode M7 Wireless Communication Gateway for LoRaWAN, Support PoE Powered By ESP32-S3 and LR1110

Description

This ThinkNode M7 is a high-performance gateway based on the ESP32-S3 module and LR1110 LoRa chip, deeply adapted for the LoRa protocol. The device features an Xtensa 32-bit LX7 dual-core processor with a clock speed of up to 240MHz, providing powerful computing capabilities. It also integrates 2.4GHz Wi-Fi, Bluetooth Low Energy 5.0, and LoRa wide-area communication capabilities, supporting the US 915MHz and EU 868MHz bands to meet the IoT deployment needs of different regions.

The product boasts a sleek design with a mounting base. Interfaces include a USB power/data port and a 100Mbps Ethernet port.

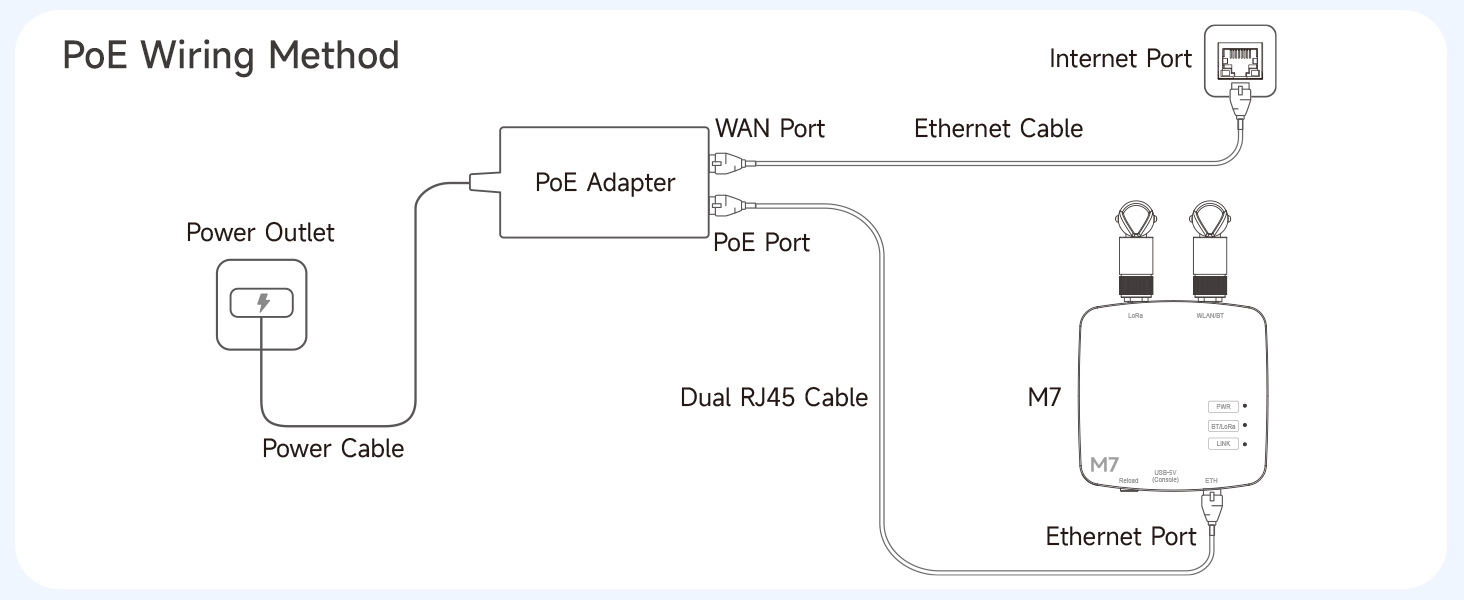

PoE power supply is supported(USB version not yet released). An external adhesive antenna further enhances signal coverage.

The device's hardware and software perfectly support the LoRaWAN standard protocol, and it comes pre-installed with gateway functionality, making it truly plug-and-play. It is an ideal choice for indoor wireless applications, offering high-performance processing, wide signal coverage, and convenient internet access.

(Only one of the Meshtastic/LoRaWAN features can be used; please purchase the corresponding version.)

Designed and manufactured by Elecrow, customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com.

Feature

• Deeply adapted for LoRa protocol: Hardware and software are specifically optimized for LoRa communication protocols and indoor scenarios, ensuring stable and efficient signal transmission and reception performance.
• Dual-core high-performance processor: Utilizes the ESP32-S3 module, equipped with an Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240MHz, providing ample computing power for complex communication and data processing.

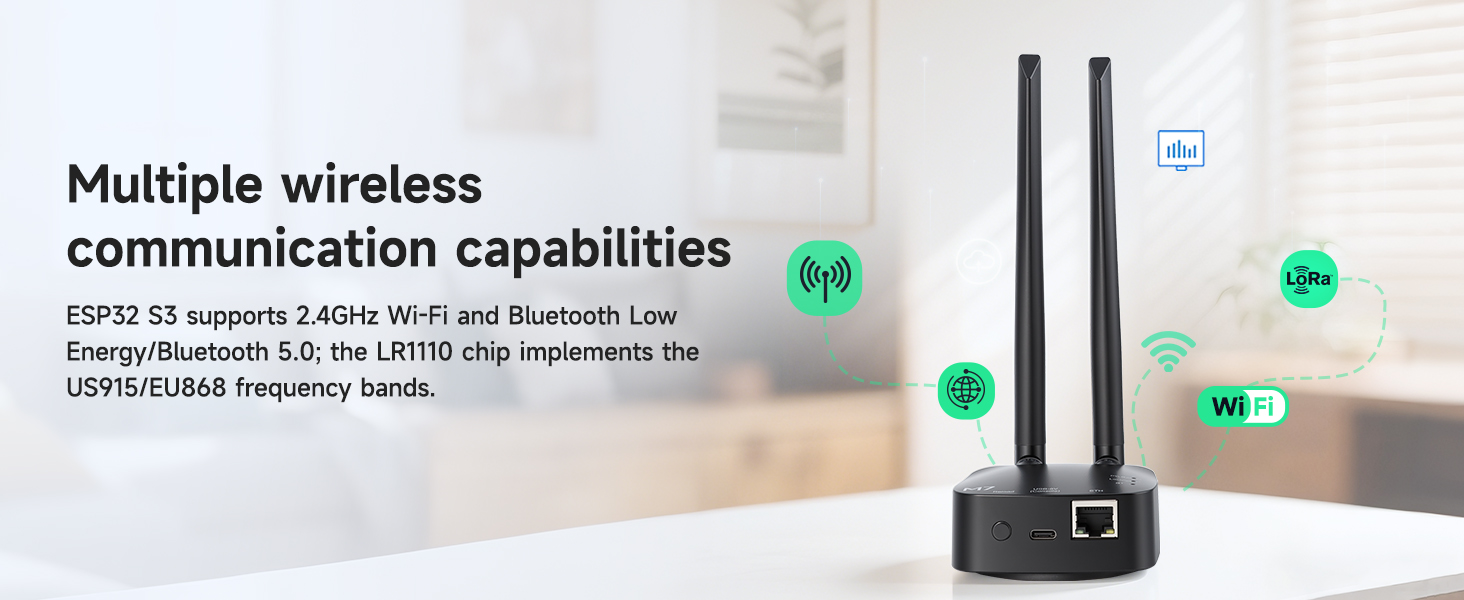

• Multiple wireless communication capabilities: Integrates 2.4GHz Wi-Fi and Bluetooth Low Energy/Bluetooth 5.0, supporting flexible device networking and local interconnection. It can also achieve wide-area LoRa communication in the US915/EU868 bands via the LR1110 chip.

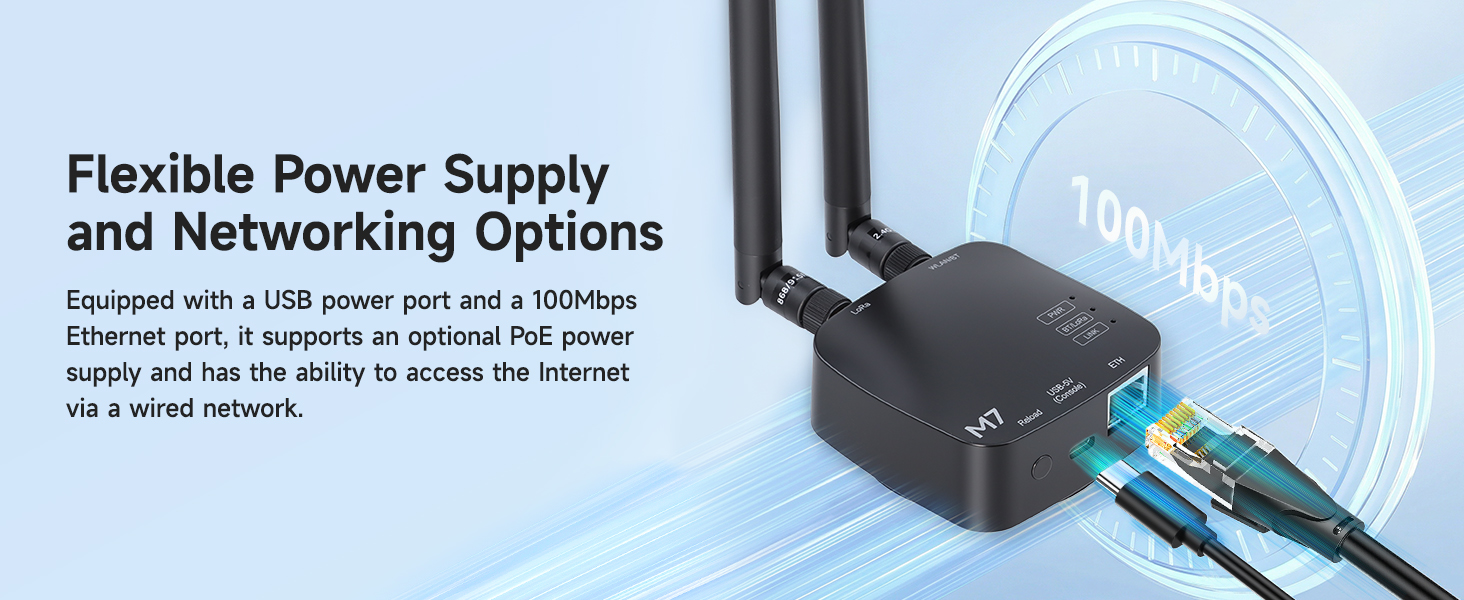

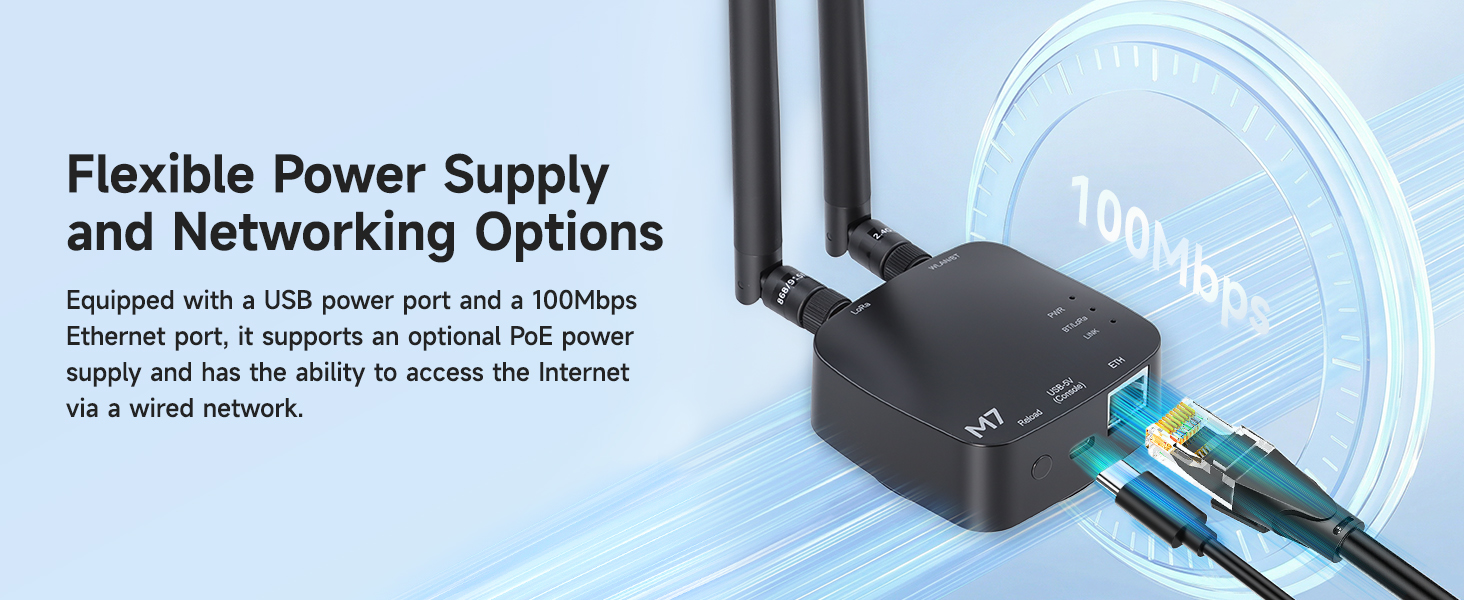

• Flexible power supply and networking methods: Equipped with a USB power port and a 100Mbps Ethernet port, supporting optional PoE power supply, adapting to different indoor deployment scenarios, and possessing the ability to access the Internet via wired network.
• Enhanced signal coverage: Employs an external rubber rod antenna, significantly improving LoRa signal transmission and reception distance, expanding indoor coverage, and supporting more stable long-distance node connections.

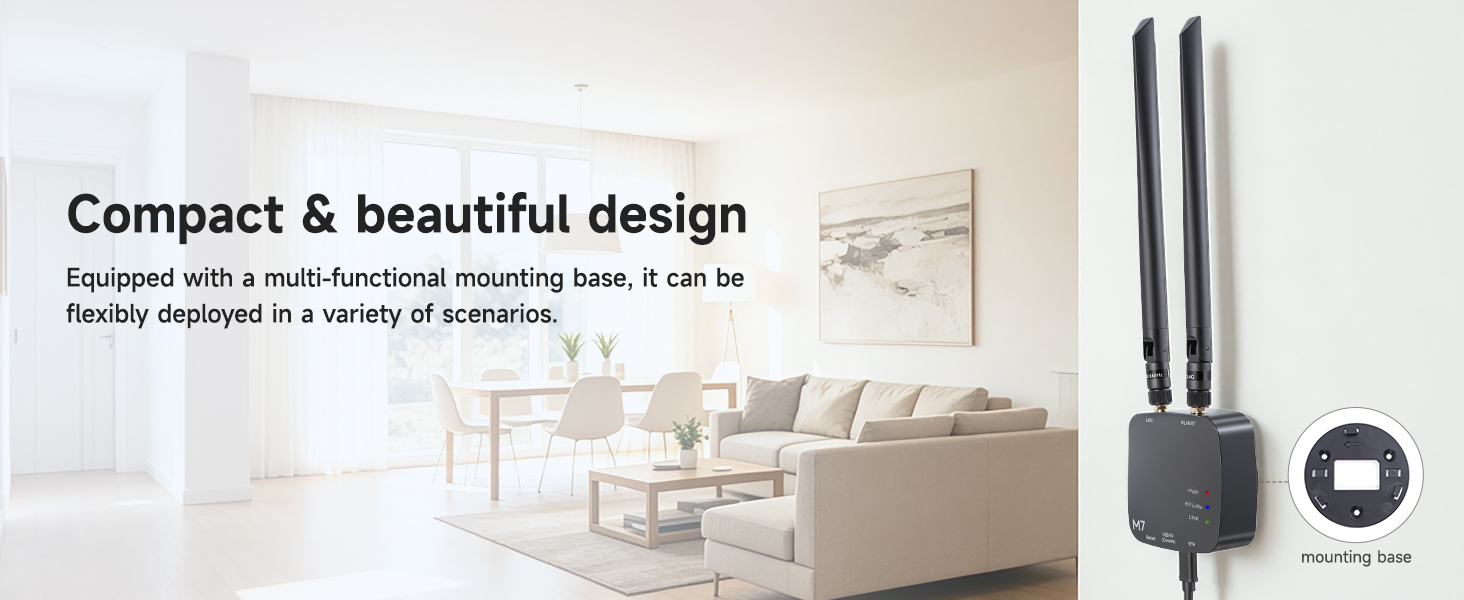

• Simple structure and easy installation: The simple design and built-in fixed base make it easy to install on walls or desktops, and it is suitable for deployment in a variety of indoor environments.

Scenarios

• a. Smart building/park management
• b. Indoor supplementation for agriculture/livestock farming
• c. Indoor signal blind spot coverage
• d. Temporary communication for events/exhibitions
• e. Emergency command center
• f. Rapid deployment solutions

Who needs this?

Radio Enthusiasts/System Integrator/Smart home Solution Providers/Outdoor Adventure Enthusiasts (for use at base camps)/Emergency Communication Preparedness Team Members/Tech geeks

Specification

Why choose us?

As an industry-leading equipment manufacturer, we rely on our independently developed core technology and the production strength of our factories to ensure that every product has precise quality control from design to manufacturing, and is both reliable and innovative. We provide online customer service support to answer your questions at any time, making the whole process worry-free. At the same time, we provide customized solutions to accurately meet your personalized needs. Choosing Elecrow means choosing safety, efficiency and professionalism.

Package List

• 1x ThinkNode M7 for LoRaWAN
• 1x LoRa Antenna
• 1x WLAN/BT Antenna
• 1x USB-A to USB-C Data Cable
• 1x Base
• 3x Screw
• 1x User Manual

Wiki & External links

• Wiki
• User Manual
• ESP32-S3 Datasheet
