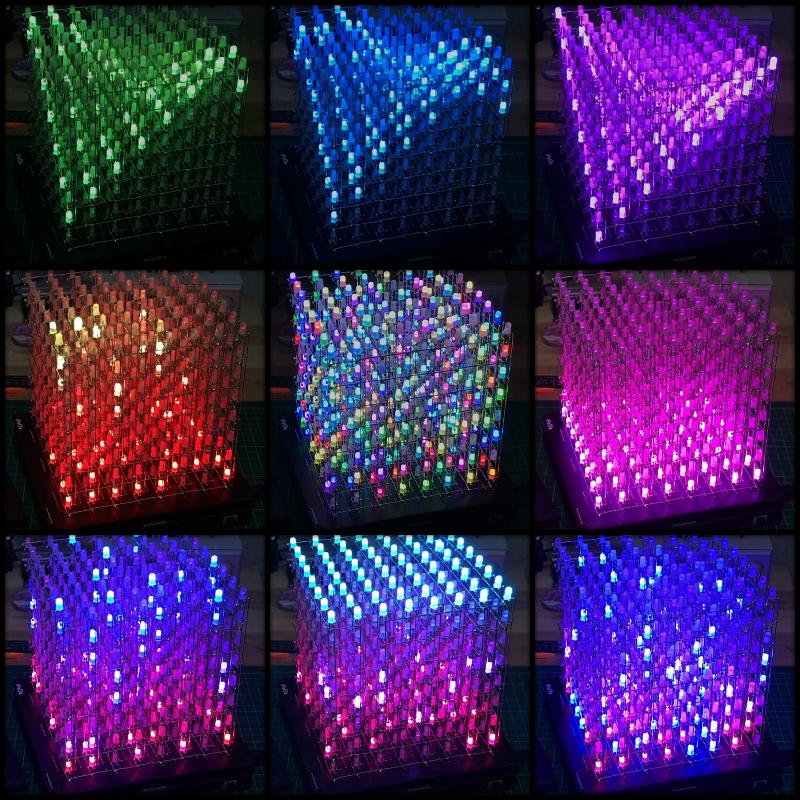

LED Cube RGB 8x8x8 Kit Arduino Compatible

Description

This is an RGB LED Cube in a kit (assembly required). The circuit design was based on Kevin Darrah's RGB Cube design with a little modification.

This RGB LED Cube fascinated me and led me to learn Arduino and electronics. I love the LED Cube and looking for the simplest PCB design that can be assembled without the need to use additional wires to connect the circuitry. Since I can't find the one I like, then I just made one myself.

In this design, I use 3 stacks of PCB.

• PCB LED: For the LED Base
• PCB Col Controller: For Shift Registers to control the Cathode
• PCB Controller: For the MCU and Mosfets to control the Anode

There will be no need to create an additional box for the circuitry since all the PCBs will be connected using headers and using spacers.

Specifications

The components included in this kit are :

• IC ATMega328P-PU : 1 pcs
• IC Socket 28pin : 1 pcs
• Crystal 16Mhz : 1 pcs
• Capacitor Ceramic 22pF : 2 pcs
• Capacitor Ceramic 0.1uF : 31 pcs
• Capacitor El 100uF : 13 pcs
• Resistor 1k : 1pcs
• Resistor 10k : 2 pcs
• Resistor 100R : 200 pcs
• IRF9540N : 8 pcs
• RN 1K 9pin : 25 pcs
• ULN2803 : 25 pcs
• IC Socket 2x9pin : 25 pcs
• 74HC595 : 25 pcs
• IC Socket 2x8pin : 25 pcs
• Male Header 1x8 : 19 pcs
• Female Header 1x8 : 19 pcs
• Female Header 1x9 : 8 pcs
• Male Header 1x9 : 8 pcs
• Female Header 1x6 Right Angle : 1 pcs
• Tactile Button 6x6x5 Right Angle : 2 pcs
• SS-12D11G5R SPDT : 1 pcs
• Socket DC PCB Mount : 1 pcs
• LED 5mm Diffused Common Anode (512 pcs needed) : 550 pcs
• M3x6 Black Pan Padded Screw : 4 pcs
• M3x5 Male-Female Nylon Spacer : 4 pcs
• M3x10 Female-Female Nylon Spacer : 4 pcs
• M3x10 Male-Female Nylon Spacer : 4 pcs
• M3x7x1 Nylon Flat Washer : 8 pcs
• PCB LED : 1 pcs
• PCB Col Controller : 1 pcs
• PCB Controller : 1 pcs
• Copper Wire 18cm/pcs : 280 pcs
• USB to DC power cable : 1pcs

Wiki & External Links

Check the video and wiki page for more information.

Wiki page : https://wiki.indopalta.net/en/index.php/LED_Cube_RGB_8x8x8
Assembly video for your reference
