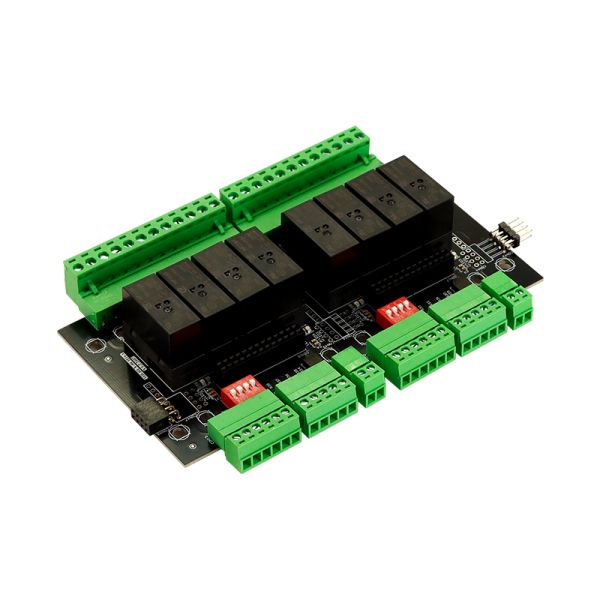

OCP-RLY-8CH16A

Industrial Automation Outputs Controller Platform

This product aims to be a modular platform and have the ability to operate manually (bypass), control through RS485 bus, control through IO, and intelligent control methods such as Wi-Fi, SIM card, and Laura. It should also have LEDs showing the status of each channel and be used in the DIN Rail format.

• Product category: traditional and smart relay box, alarm output part including flasher control, piezo speaker (siren), use in implementing smart automation system
• Made in DIN Rail format.
• It is designed in a modular way so that the number of channels can be increased in cascade and only requires one controller, which greatly saves the cost of using it. Also, due to the use of a controller, the central system works with only one Modbus address, and other addresses are saved for other uses.
• It has a push button and manual operation capability (bypass) to maintain the traditional structure and bypass the control section if necessary.
• Can be controlled through RS485 bus. (can be connected to PLC and other master control systems)
• Can be controlled through IO. (can be connected to PLC and other master control systems)
• It has the ability to control via Wireless under the Lora protocol. (can be connected to Master Control product)
• It can be controlled via Wireless under the WiFi protocol. (can be connected to Master Control product)
• It can be controlled via SIM card in the form of SMS.
• It has LEDs showing the status of each channel.
