8 Way Solid State Relay Board

panrobotics.xyz

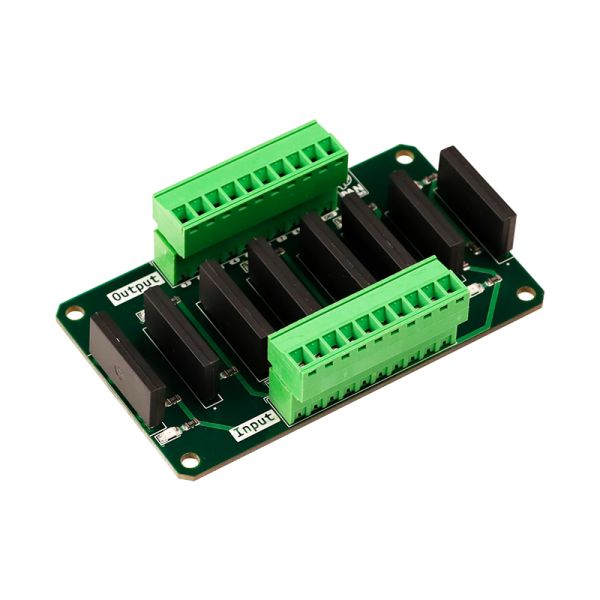

The 8-Channel Solid State Relay (SSR) Breakout Board is a versatile and reliable solution for high-performance switching applications. Featuring eight integrated CPC1706Y relays, this breakout board is designed to handle industrial controls, motor control, robotics, medical equipment, and more.

Key Features:

• Integrated Solid State Relays: Eight CPC1706Y relays provide robust switching capabilities with a 60V blocking voltage and up to 4A continuous load current per channel.
• High Reliability: Optically coupled MOSFET technology ensures 2500Vrms isolation between input and output, enhancing safety and reliability.
• Compact Design: Power SIP package minimizes footprint while providing efficient thermal management.
• Easy Integration: Harnessable connectors allow for simple and secure connections to your system.
• Low Drive Power: Efficient infrared LED control minimizes power consumption, making the board suitable for low-power applications.
• Comprehensive Protection: The board features no EMI/RFI generation, high on-resistance (max 0.09Ω), and operates in a wide temperature range (-40°C to +85°C).

Applications:

• Industrial Automation
• Motor Control Systems
• Robotic Arms
• Medical Equipment Isolation
• Instrumentation and Data Acquisition
• Home and Industrial Appliances

Technical Specifications:

• Blocking Voltage: 60V
• Load Current: Up to 4A per channel
• On-Resistance: Max 0.09Ω
• Isolation Voltage: 2500Vrms
• Operating Temperature: -40°C to +85°C
• Input Control Current: 1.4mA to 5mA

Mechanical Details:

• Dimensions: Compact form factor designed to fit easily into various applications.
• Connector Type: Easily harnessable connectors for quick and secure setup.

Ordering Information:

• Part Number: SSR-8CH-CPC1706Y
• Package: 4-Pin (8-Pin Body) Power SIP, 25 per tube

This breakout board offers an ideal solution for developers and engineers seeking reliable, high-performance switching capabilities in a compact and easy-to-integrate form factor. Whether you are working on industrial automation projects or designing advanced robotic systems, the 8-Channel SSR Breakout Board with CPC1706Y relays provides the performance and reliability you need.
