16x32 RGB LED Panel Driver Shield

SKU
CDE20032P
Weight
20
Be the first to review this product
In stock
$13.75
-
+
With this product, you earn 14 loyalty points.
Bulk Order Inquiry Become Distributor
x We provide professional OEM/ODM services to our customers who have customization requirements. If you have any inquiries, please cantact us directly by email: info@elecrow.com or leave us a message.
Email
Overview

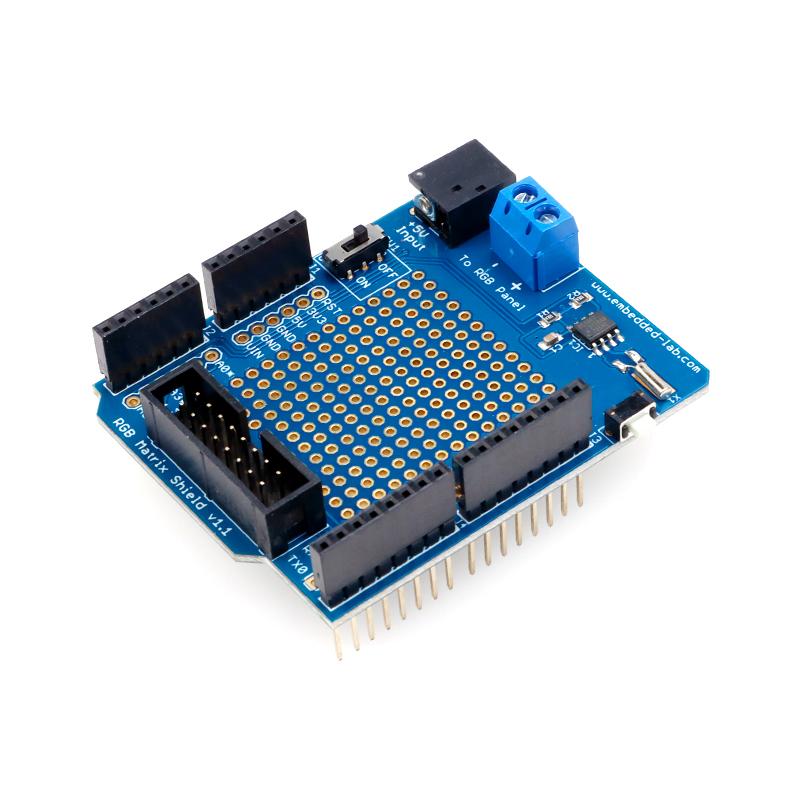

It is an Arduino Uno shield for driving a 16x32 RGB matrix panel with a HUB75 (8x2 IDC) connector.
It is an Arduino Uno shield for driving a 16x32 RGB matrix panel with a HUB75 (8x2 IDC) connector. It provides a matching 2×8 IDC connector for setting up easy connections between the Arduino board and the LED panel. The shield also features an RTC chip on board. The display uses 12 digital I/O pins of Arduino Uno for full color control.


Features

  • Operates at 5V
  • Compatible with Adafruit’s RGBMatrixPanel Library
  • DS1307 RTC chip on board along with a CR1220 coin-cell battery holder
  • The I2C pins of the DS1307 chip are pre-wired to A4 and A5 pins of the shield.

Package list

  • RGB driver shield x1
