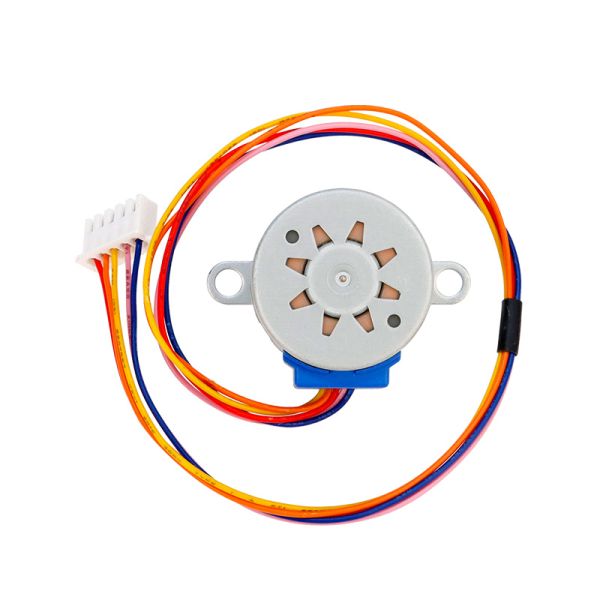

28BYJ-48 High quality Stepper motor 12V

Details

This 28BYJ48 stepper Mainly used in Air Conditioner Louver, Small Cooling/Heating Fan, etc. It also can be used inaccurate control. Stable and all technic parameters are qualified for the national electronic standard of SJ/T10689-95. You can control this motor easily by ULN2003 Stepper Motor Driver.

There is also the 5V version of 28BYJ-48 Stepper for your selection.

Specification

Rated voltage: 12VDC
Number of Pole: 4
Speed Variation Ratio :1/64
Stride Angle: 5.625x1/64
DC resistance : 200
Idle In-traction Frequency: >600Hz
Idle Out-traction Frequency: >1000Hz
In-traction Torque: >34.3mN.m(120Hz)
Self-positioning Torquw: >34.3mN.m
Insulated resistance: >10M (500V)
Insulated electricity power: 600VAC/1mA/1s
