5 inch DSI display IPS 800*480 touch screen compatible with Raspberry Pi

Rating:
100 % of 100
$34.90
Availability: In stock
SKU
DSI05379I
Brand
elecrow
Weight
180g

【5-inch touch screen】With a resolution of 800*480, this 5-inch IPS full-view screen supports capacitive touch and a variety of systems like Raspbian, Ubuntu/Kali/Win10 IoT, etc.

【Easy to use & backlight adjustment】Plug and play, no driver installation required; supports external PWM signal for backlight brightness adjustment

【Pi Screen】Raspberry Pi MIPI DSI interface direct output, compatible with Raspberry Pi 3/4/5 and other SBCs, the back hole design makes it easy to install the Raspberry Pi directly on the screen.

Description

This is a 5" Raspberry Pi LCD touchscreen with a resolution of 800*480 and a display area of 108*64.8mm. This product supports Raspberry Pi DSI display interface, the screen has a capacitive touch panel, plug and play, and no installation required Driver. The design on the back of the screen with holes makes it convenient to install the Raspberry Pi directly in the product. The display powered by the Raspberry Pi and does not require an external power supply. In addition, the screen has a backlight brightness adjustment button, which supports an external PWM signal for backlight brightness adjustment.

Note: If you connect with Raspberry Pi 5,  a 15-pin to 22-pin FPC cable is needed.

OEM customization requests can be discussed for projects.

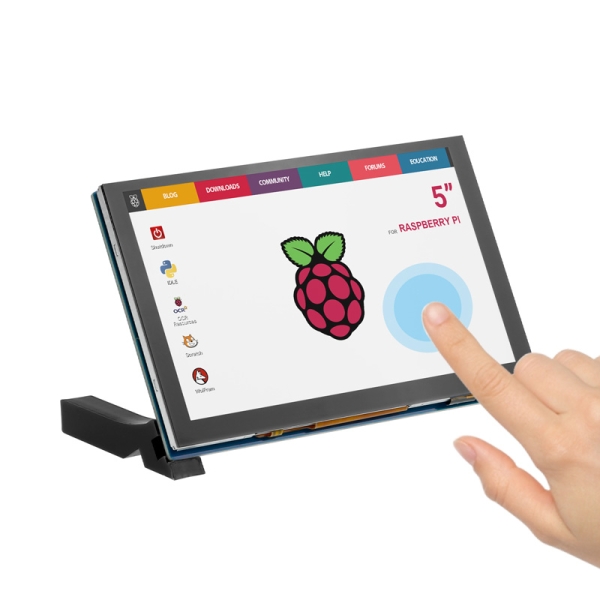

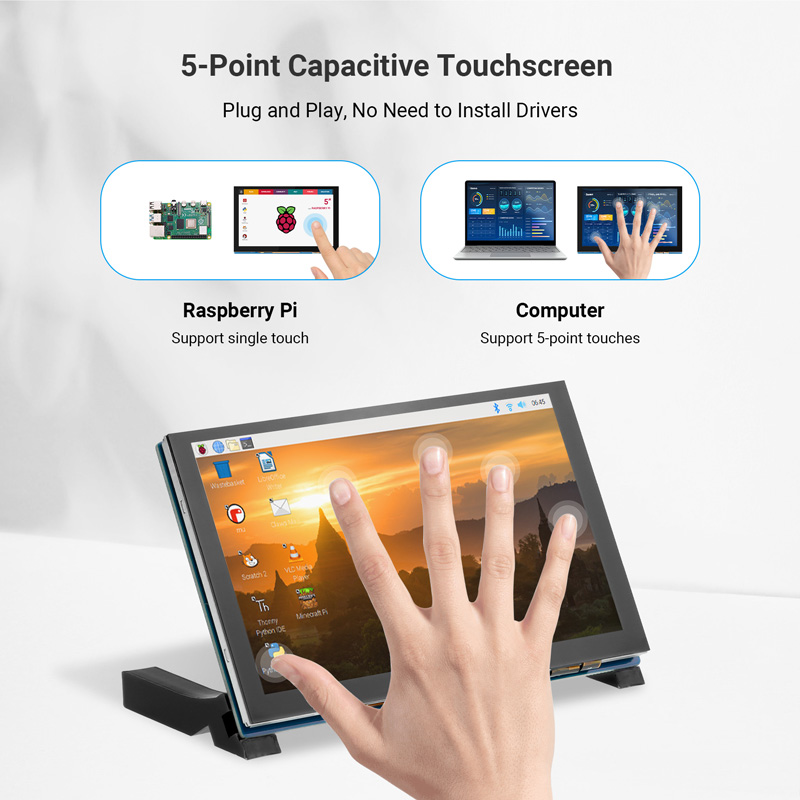

5 point capacitive touchscreen

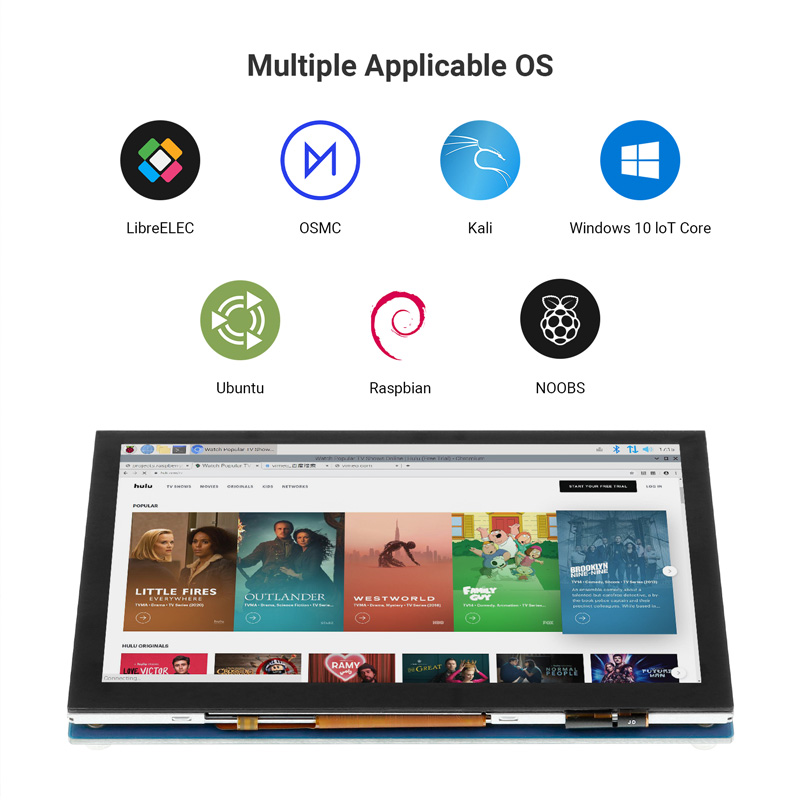

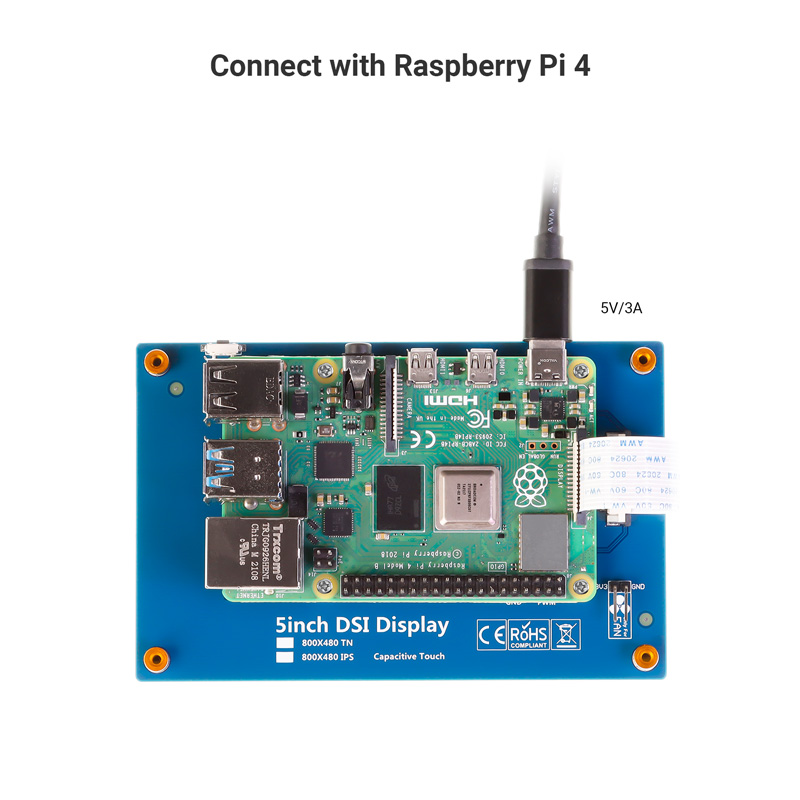

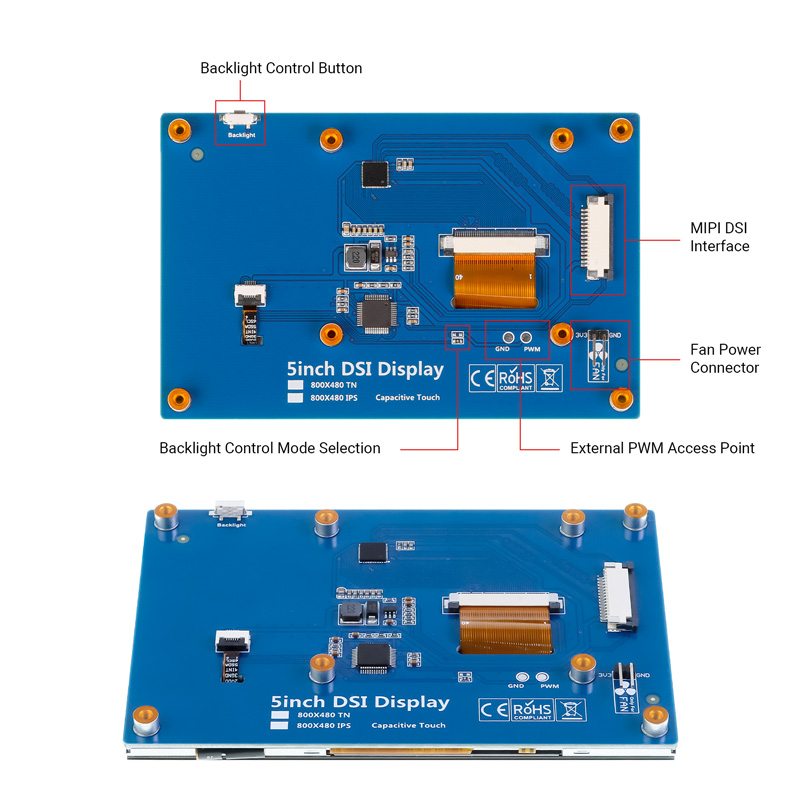

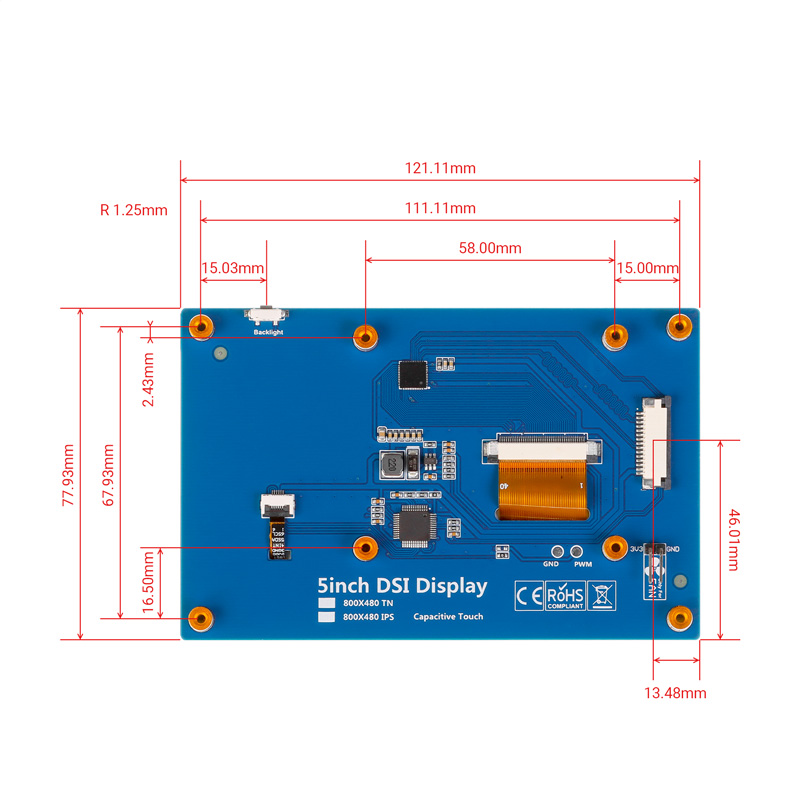

5 inch monitor support multiple os systems5 inch monitor connect with raspberry pi 45 inch monitor dimension sizeinterface overview of 5 inch monitor5 inch DSI display package list

MIPI DSI 15pin definition

 DSI pin definition

Feature

  • 800x480 resolution display, IPS full viewing angle
  • Raspberry Pi MIPI DSI interface direct output, plug and play, no driver
  • Support official system Raspbian, multi-touch;
  • Support Ubuntu/Kali/Win10 IoT, single touch; Support Retropie
  • A variety of backlight adjustment methods can be used in various environments



Specification

  • Size:5 inch
  • Resolution:800*480
  • Refresh Rate: 60Hz
  • Maximum Brightness: 500cd/m²
  • LCD Interface Type: RGB888 Port
  • Module Interface Type: MIPI DSI
  • Touch Type: Capacitive Touch Screen
  • View Angle: IPS 178°
  • Active Area: 108*64.8mm
  • Operating Voltage: 3.3v
  • Maximum operating current: 3400mA
  • Operating temperature: -20℃-70℃
  • Appearance Size:1*77.9mm
  • Package Size:154*143*38mm
  • Weight:180g

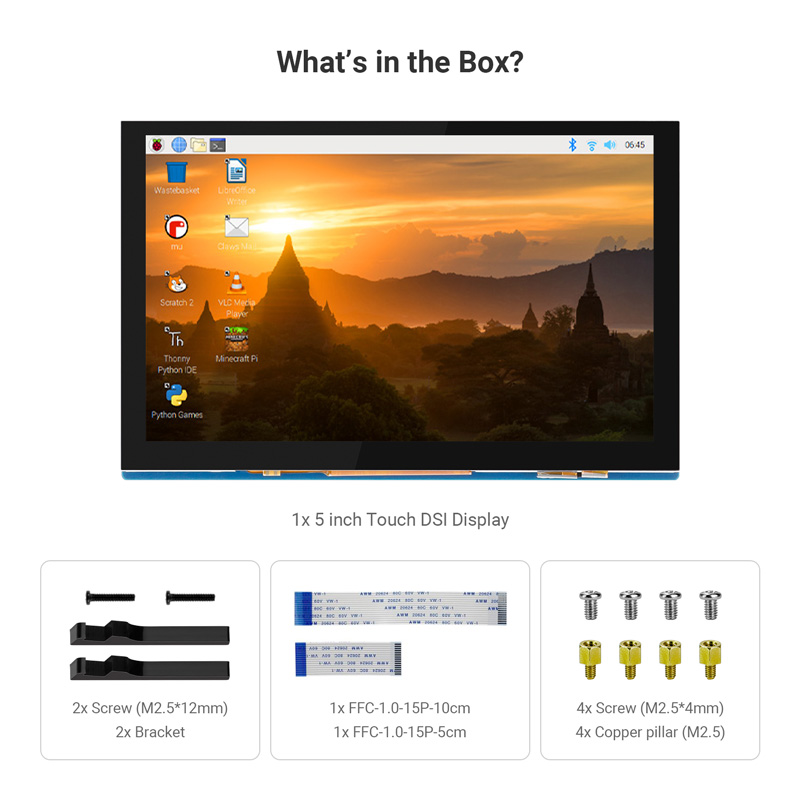

Package List

  • 1x 5 inch Touch DSI Display
  • 1x FFC-1.0-15P-10cm
  • 1x FFC-1.0-15P-5cm
  • 4x Screw(M2.5x4mm)
  • 2x Screw(M2.5x12mm)
  • 4x Copper pillar(M2.5)
