7 inch 800*480 DSI display touch screen with bracket compatible with Raspberry Pi

Description

This is a 7-inch DSI touchscreen monitor with a resolution of 800*480 and a display area of 153.84*85.63mm. It supports direct output of Raspberry Pi MIPI DSI interface, plug and play, no need to install drivers. The 7 inch DIS small display also supports multiple systems Ubuntu, Kali, etc. For example, it has a backlight brightness adjustment button, supports PWM backlight brightness adjustment, and adapts to different use environments.

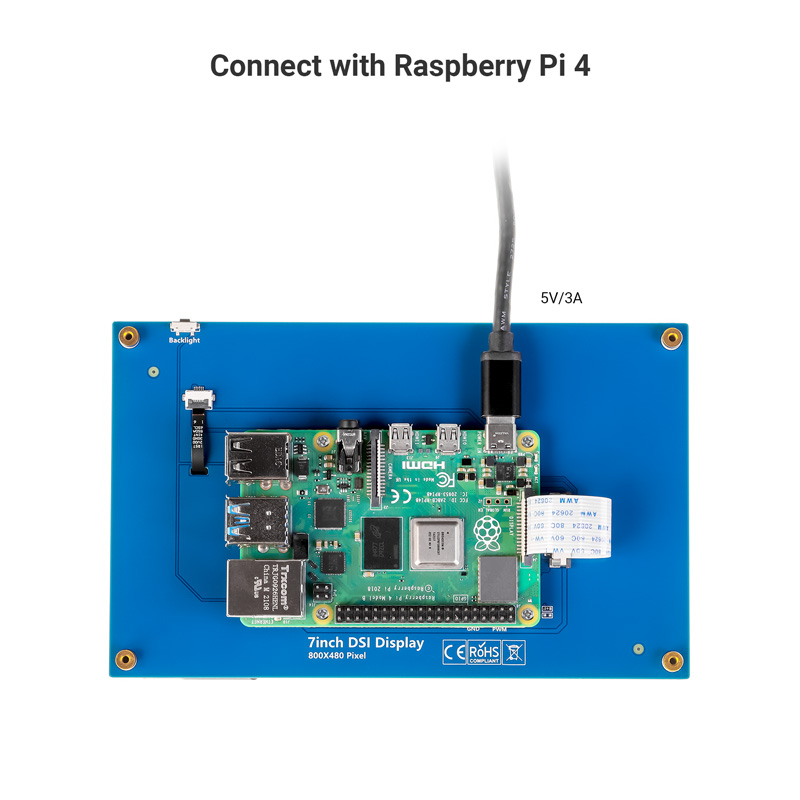

Note: If you connect with Raspberry Pi 5,  a 15-pin to 22-pin FPC cable is needed.

OEM customization requests can be discussed for projects.

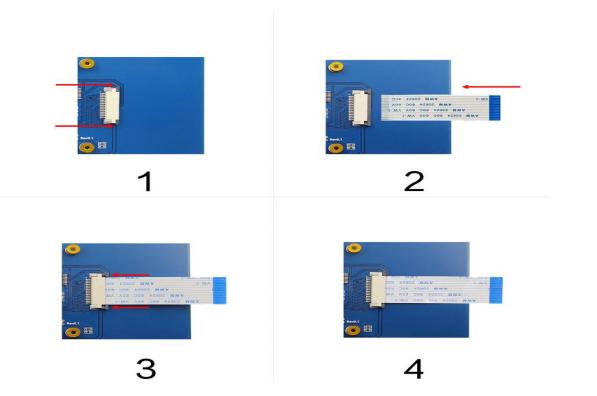

Connect the FPC cable

MIPI DSI 15pin definition

 Feature

• 800x480 resolution capacitive touch display
• Raspberry Pi MIPI DSI interface direct output, plug and play, driver free
• Support official system Raspbian, web page 2-finger zoom;

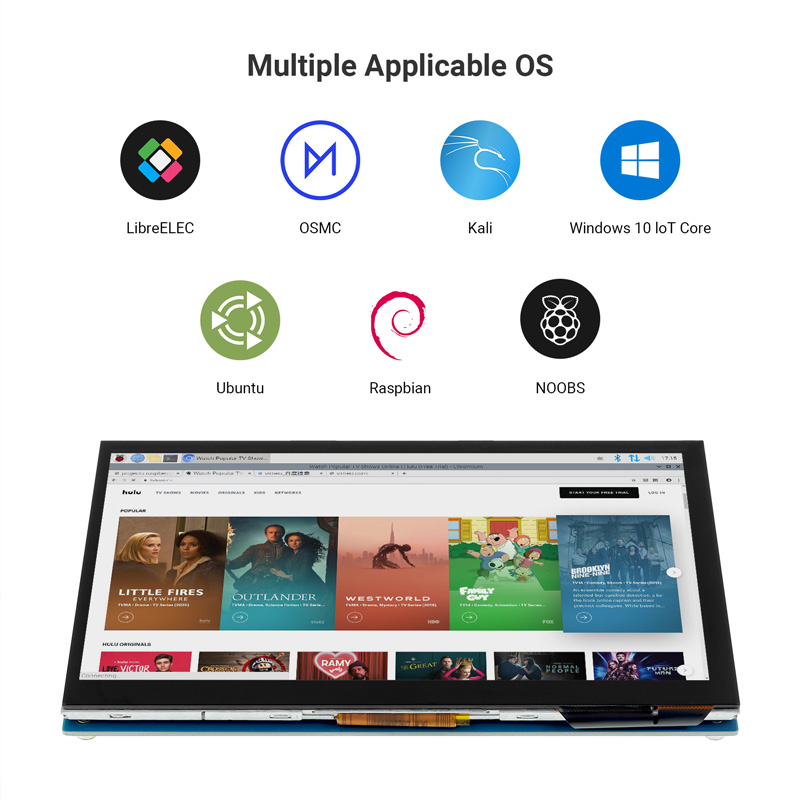

• Support Ubuntu/Kali/Win10 IoT, single touch;Support Retropie
• Built-in backlight brightness adjustment button, supports PWM backlight brightness adjustment, adapts to different use environments

Specification

• Size：7 inch
• Resolution：800*480
• LCD Interface Type: RGB888 Port
• Module Interface Type: MIPI DSI
• Refresh Rate: 60Hz
• Touch Type: Capacitive Touch Screen
• View Angle: Normal Viewing Angle
• Active Area: 153.84*85.63mm
• Operating Voltage: 3.3v
• Maximum operating current: 510mA
• Maximum Brightness: 300cd/m²
• Operating temperature: -20℃-70℃
• Appearance Size：89*102*12.25mm
• Package Size：212*149*54mm
• Weight：236g

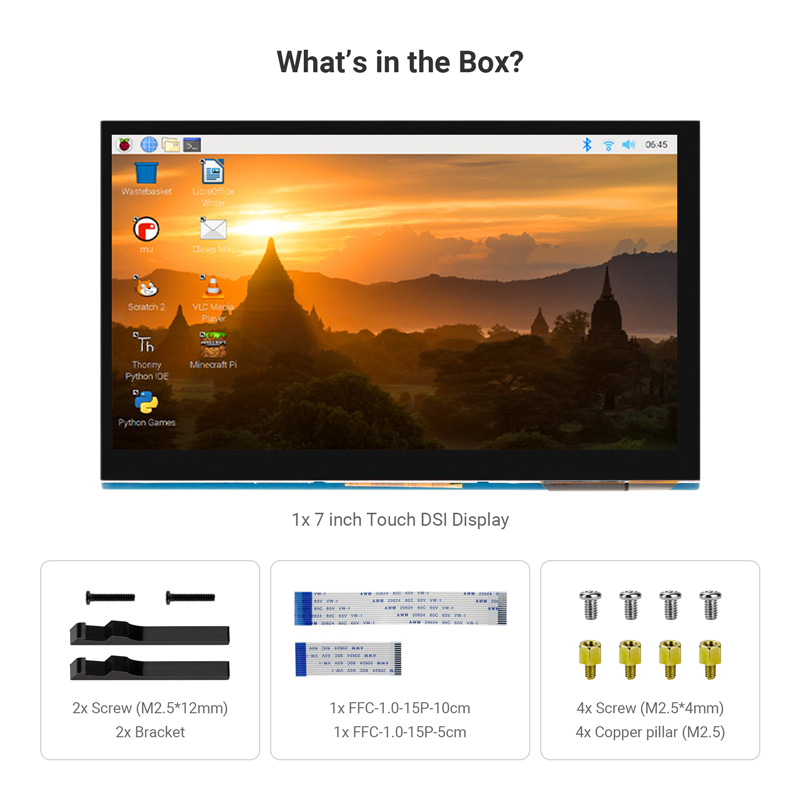

Package List

• 1x 7 inch Touch DSI Display
• 1x FFC-1.0-15P-20cm
• 1x FFC-1.0-15P-10cm
• 1x FFC-1.0-15P-5cm
• 4x Screw(M2.5*4mm)
• 2x Screw(M2.5*12mm)
• 4x Copper pillar(M2.5)
• 2x bracket
