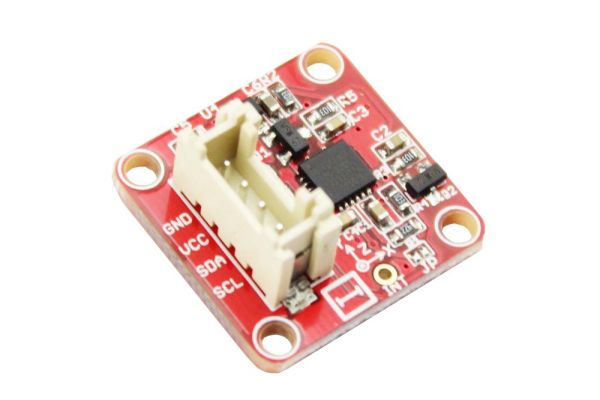

Crowtail- 3-Axis Digital Gyro

Rating:
0% of 100
SKU
CT0058ADG
Weight
5 g
Availability
In stock
$8.60
-
+
Crowtail - 3-Axis Digital Gyro module based on ITG 3200. It is the world’s first single-chip, digital-output, 3-axis MEMS motion processing gyro optimised for gaming, 3D mice, and motion-based remote control applications for Internet connected Digital TVs and Set Top Boxes. The ITG-3200 features three 16-bit analog-to-digital converters (ADCs) for digitising the gyro outputs, a user-selectable internal low-pass filter bandwidth, and a Fast-Mode I2C (400kHz) interface.

Features

  • Supply Voltage: 3.3V, 5V
  • Operation Current: 6.5mA
  • Standby current: 5μA
  • Sensitivity: 14 LSBs per °/sec
  • Full scale range: ±2000°/sec
  • Acceleration: 10,000g for 0.3ms
  • I2C Interface
  • ±2000°/s full scale range and 14.375 LSBs per °/s sensitivity
  • Three integrated 16-bit ADCs
  • On-chip temperature sensor
  • Integrated amplifiers and low-pass filters
  • Hermetically sealed for temp and humidity resistance
  • Dimensions(mm):20.0(L)x20.0(W)x9.8(H)

Package list

  • Crowtail- 3-Axis Digital Gyro x1
