M.2 HAT+ for Raspberry Pi 5

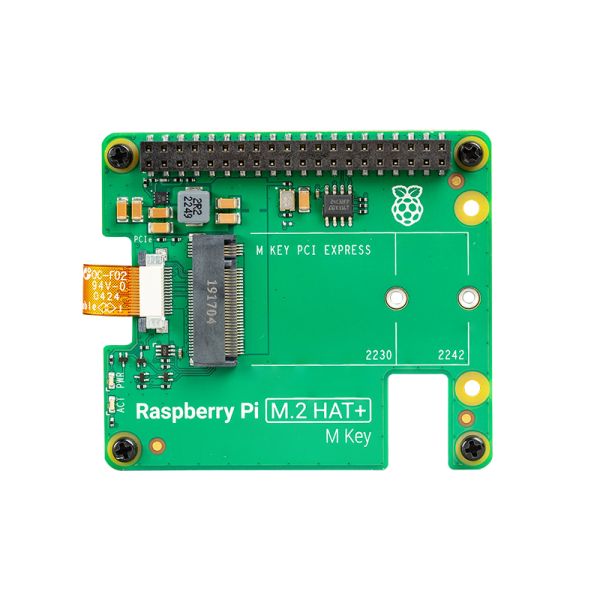

Description

The Raspberry Pi M.2 HAT+ lets you connect M.2 peripherals such as NVMe drives and AI accelerators to the Raspberry Pi 5's PCIe 2.0 interface, enabling fast (up to 500 MB/s) data transfers to and from NVMe drives and other PCIe accessories.

The Raspberry Pi 5's single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mm pitch FPC connector; the M.2 HAT+ M Key is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices with an M.2 M Key edge connector, size 2230 and 2242. It is capable of supplying up to 3A of current to connected M.2 devices.

The Raspberry Pi M.2 HAT+ complies with the Raspberry Pi HAT+ specification and is automatically detected by the latest Raspberry Pi software/firmware. It comes with a 16mm stacking header and threaded spacers so it can be mounted on a Raspberry Pi 5 with the Raspberry Pi Active Cooler installed.

Feature

• 4 Gbits/s PCIe 2.0 interface provides fast (~450Mbytes/s) data transfer to and from NVMe SSD drives and other PCIe accessories
• Supports single-lane PCIe 2.0 interface (500MB/s peak transfer efficiency)
• Supports devices with M.2 M Key connector
• Supports devices with 2230 or 2242 form factors
• Ability to provide up to 3A of power to connected M.2 devices
• Includes power and activity indicators
• Compliant with Raspberry Pi HAT+ specification
• Automatic detection of the latest Raspberry Pi software/firmware

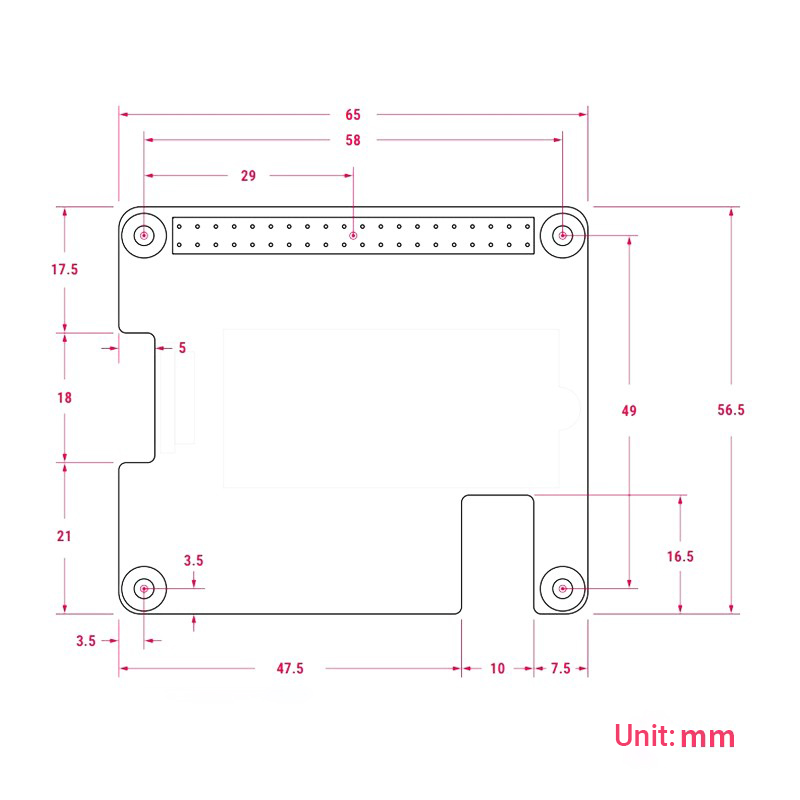

Specification

• Operating temperature: 0℃ to 50℃ (ambient)
• Supports single-lane PCIe 2.0 interface
• Supports devices that use the M.2 M key edge connector
• Supports devices with the 2230 or 2242 form factor
• Capable of supplying up to 3A to connected M.2 devices
• With power and activity indicator lights

Package List

• 1x M.2 HAT+ for Raspberry Pi 5
• 1x GPIO Adapter
• 1x PCIe Cable
• 8x Screws
• 4x Nylon column
• 1x Fixing screw

Wiki & External links

• Product Brief
• Assembly Instructions

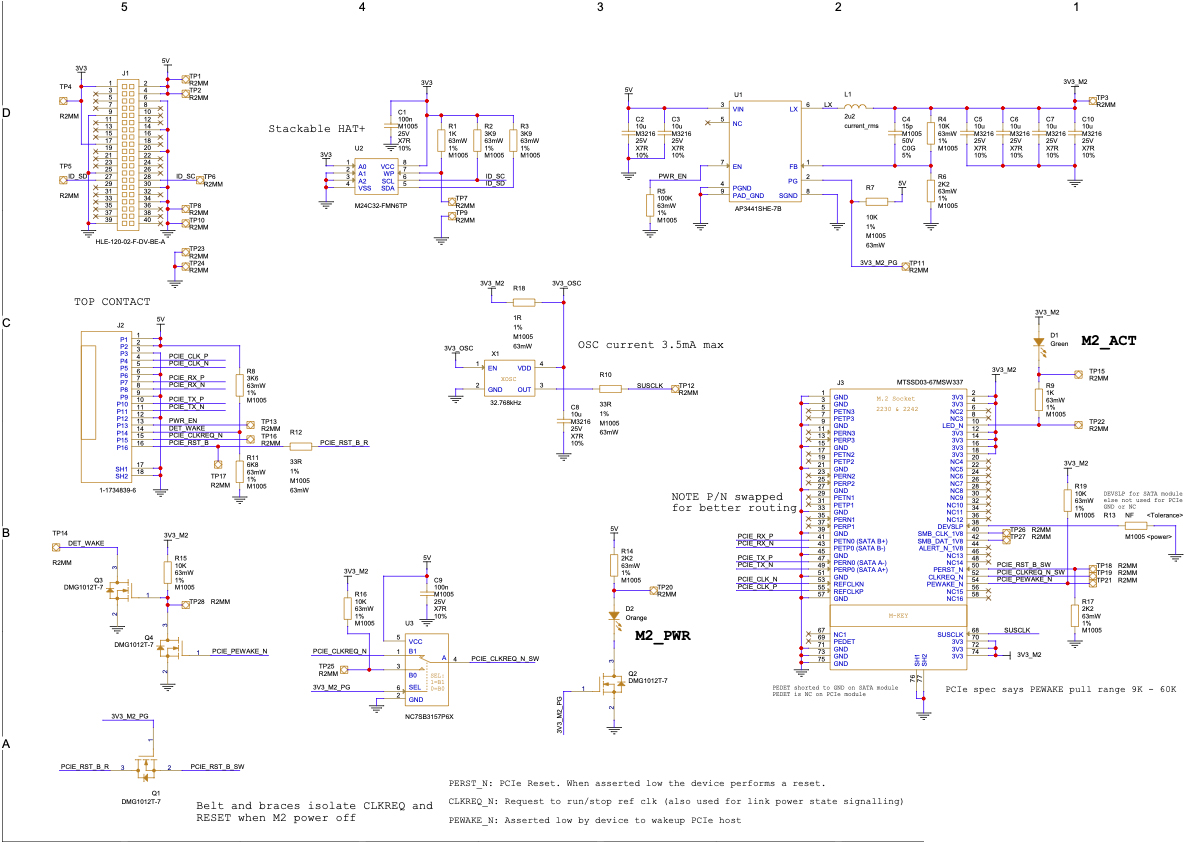

• Schematic Diagram
