FPC Shielded wire for Raspberry Pi 5

FPC shielded cable for Raspberry Pi 5

PCIE M.2 NVME 2280 SSD all in one kit

PCIE M.2 NVME 2280 Gen3 SSD HAT for Raspberry Pi 5 MPS 2280 solid state drive expansion board

Raspberry Pi 5 PCIE to M.2 NVME SSD solid state drive expansion board supports Gen3/M.2 2280 SSD

$7.90
Availability: In stock
SKU
RPI08239D
Brand
ELECROW
Weight
45g

【RPI5 SSD Expansion Board with Multi-interface】Featuring PCIe and M.2 M-key interfaces, dual LED indicators;

【SSD boot system】Supports booting the system from the NVMESSD hard disk or boots from TF.;

【concave design on the top】The concave design on the top of the board facilitates the operation and use of 40Pin GPIO;

【High quality components】Using high-quality electronic components and immersion gold technology, lead-free production.

Description

This SSD expansion board is specifically designed for the Raspberry Pi 5, featuring PCIe and M.2 M-key interfaces that enable the use of high-speed M.2 NVMe solid-state drives. This setup enhances storage performance and data transfer speeds on the Raspberry Pi 5. The expansion board supports booting the system from the NVMe SSD, facilitating storage expansion.

Alternatively, the SSD can be used solely for storage expansion, with the system booting from a TF card. This might need clarification as the Raspberry Pi's PCIe interface is likely capable of more than 1A at 5V. Please verify the actual specifications. This might be rephrased for clarity. The SSD expansion board is designed to provide power sufficient for the NVMe SSD to operate at its required voltage of 3.3V. This board is crafted with premium electronic components and features immersion gold technology, manufactured lead-free. It includes four M2.5 fixing holes and a concave design on the top, allowing for easy access to the 40-pin GPIO, streamlining operations.

In essence, the Raspberry Pi 5 PCIe to M.2 NVMe SSD adapter provides enhanced storage scalability and performance, making the Raspberry Pi 5 more suitable for projects and applications that require high storage performance, such as data storage, virtualization, and artificial intelligence.

Note: The rated current marked on the SSD you use is generally 2.5A, 3A, or even higher. However, this current corresponds to the limit when operating in X4 mode. The Raspberry Pi 5 only supports X1 mode, so the actual current used is much lower than the rated current. The design of this board is sufficient to meet your requirements.

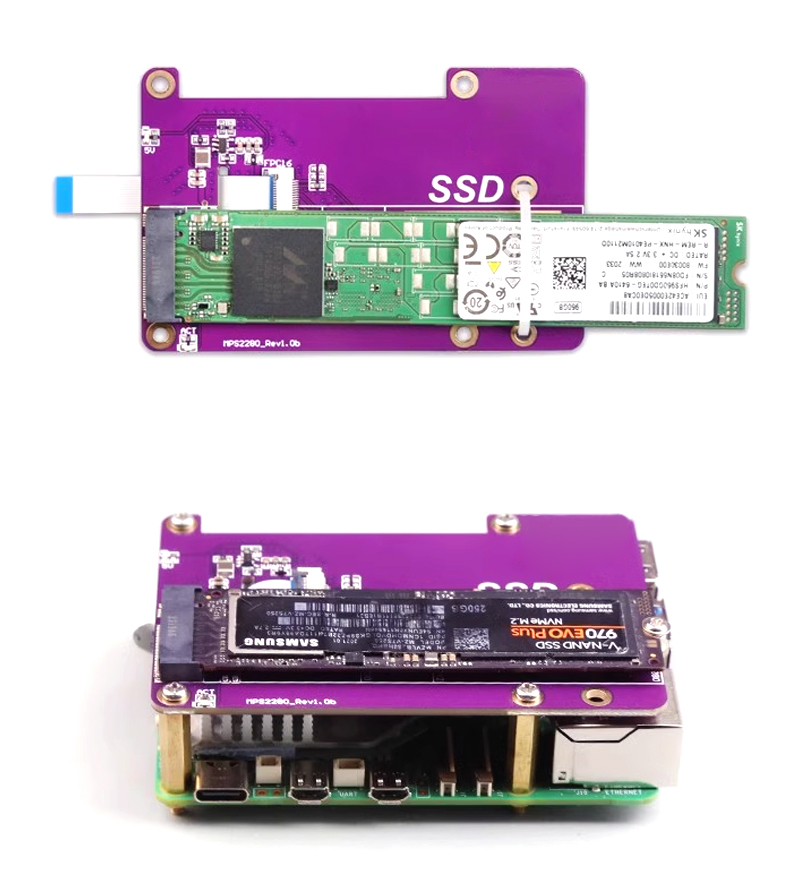

RPI 5 SSD connect with 2280

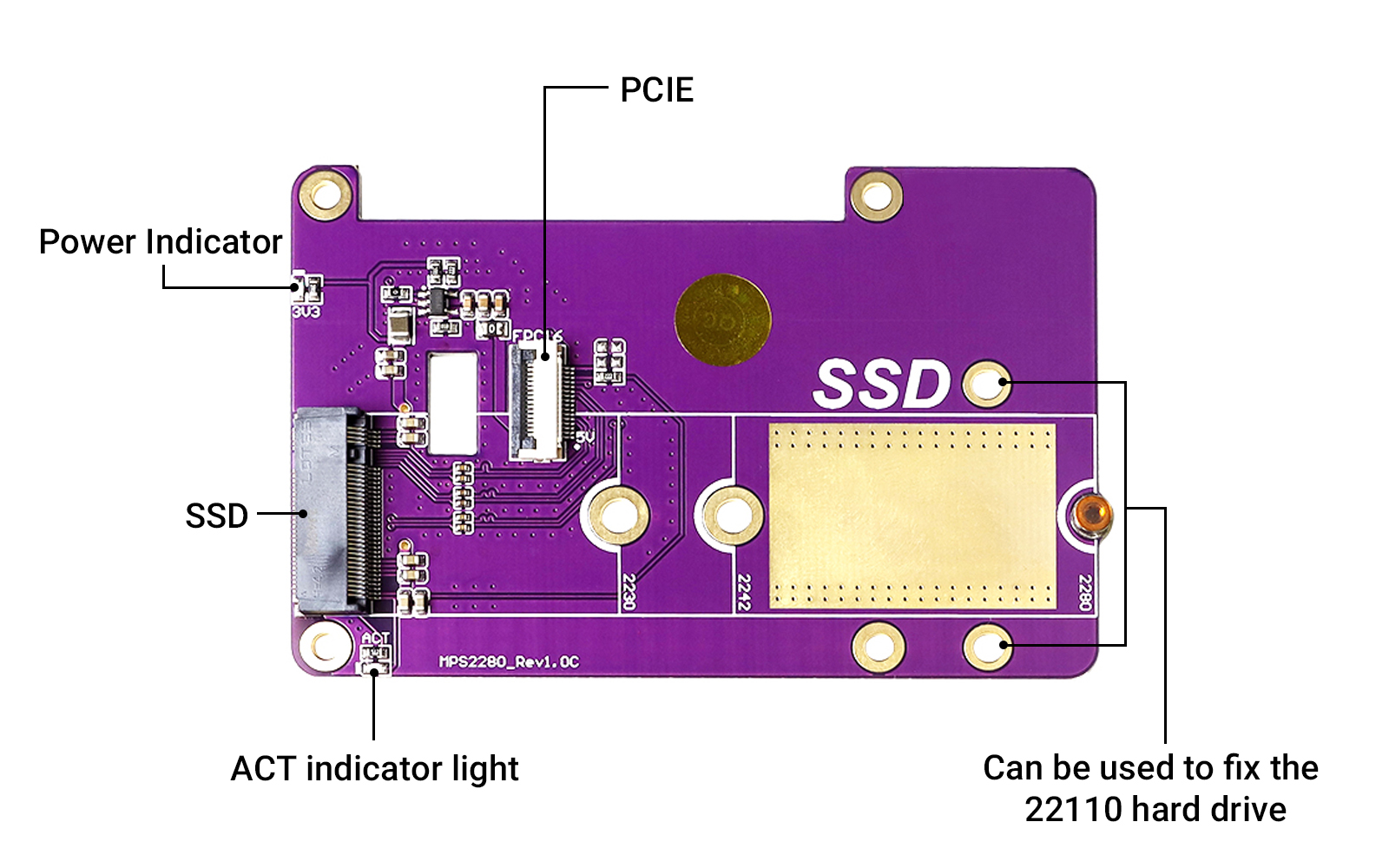

PCIE to M.2 expansion baord interface overview

PCIE to M.2 expansion baord size

Feature

  • Featuring PCIe and M.2 M-key interfaces, dual LED indicators, support M.2 2280 SSD;
  • Supports booting the system from the NVME SSD hard disk and storage expansion, or the SSD can be used only for storage expansion and the system boots from TF;
  • The concave design on the top of the board facilitates the operation and use of 40Pin GPIO;
  • Using high-quality electronic components and immersion gold technology, lead-free production.



Specification

Interface

PCIe interface and M.2 M-Key interface

Compatibility

Supports SSD2280, 2340,2242

Working input current

3.3V 1.5A

Dimensions

56mm*85mm

Weight:

18.6g



Package List

  • 1x Expansion board
  • 4x Copper pillar
  • 1x Flex Cable
