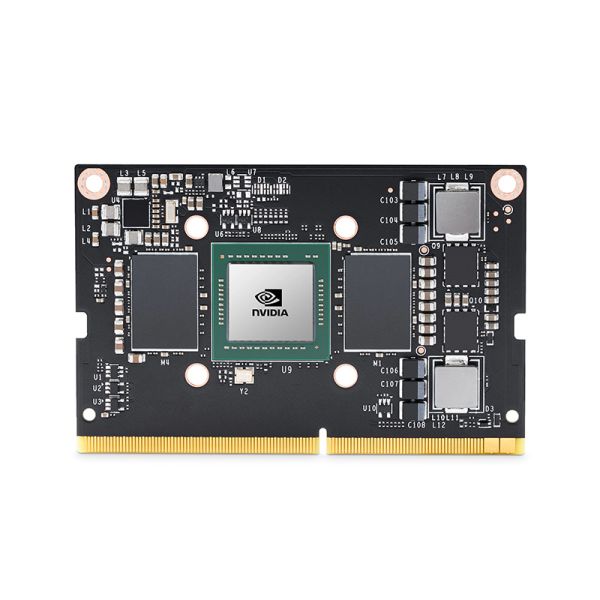

NVIDIA Jetson TX2 NX Module

SKU
DJT24920N
Out of stock
Only 0 left
$249.99
Overview

NVIDIA® Jetson™ TX2 NX delivers the next step in AI performance for entry-level embedded and edge products. It provides up to 2.5X the performance of Jetson Nano, and shares form-factor and pin compatibility with Jetson Nano and Jetson Xavier™ NX.

NVIDIA® Jetson™ TX2 NX delivers the next step in AI performance for entry-level embedded and edge products. It provides up to 2.5X the performance of Jetson Nano, and shares form-factor and pin compatibility with Jetson Nano and Jetson Xavier™ NX.

This small module packs hardware accelerators for the entire AI pipeline, and NVIDIA JetPack™ SDK provides the tools you need to use them for your application. Custom AI network development is easy with pre-trained AI models from NVIDIA NGC™ and the NVIDIA TAO Toolkit, and containerized deployments make updates for your product flexible and seamless.

Features

  • AI Performance 1.33 TFLOPs
  • Dual-core NVIDIA Denver 2 64-bit CPU and quad-core ARM A57 Complex
  • 4GB LPDDR4 128-bit RAM 1600 MHz offering 51.2 gigabytes per second
  • NVIDIA Pascal™ Architecture GPU with 256 CUDA cores, up to 2.5X the performance of Jetson Nano, realizing fast calculation and reasoning
  • 16GB eMMC 5.1 Flash Storage
  • Achieve higher accuracy with power consumption as low as 7.5Won edge devices
  • Compatible with the overall dimensions and pinouts of Jetson Nano and Jetson Xavier NX

Specifications

AI PERFORMANCE

1.33 TFLOPs

GPU

256-core NVIDIA Pascal™ GPU

CPU

Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core Arm® Cortex®-A57 MPCore processor

MEMORY

4 GB 128-bit LPDDR4

51.2 GB/s

STORAGE

16 GB eMMC 5.1

POWER

7.5 W | 15 W

PCIE

1x1 + 1x2(PCIe Gen2)

USB

1x USB 3 .0 + 3x USB 2.0

CSI CAMERA

Up to 5 cameras (12 via virtual channels)

12 lanes MIPI CSI-2 (3x4 or 5x2)

D-PHY 1.2 (up to 30 Gbps)

VIDEO ENCODE

1x 4K60 | 3x 4K30 | 4x 1080p60 | 8x 1080p30 (H.265)

1x 4K60 | 3x 4K30 | 7x 1080p60 | 14x 1080p30 (H.264)

VIDEO DECODE

2x 4K60 | 4x 4K30 | 7x 1080p60 | 14x 1080p30 (H.265 & H.264)

DISPLAY

2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0

1x 2 DSI (1.5Gbps/lane)

NETWORKING

10/100/1000 BASE-T Ethernet

MECHANICAL

69.6 mm x 45 mm

260-pin SO-DIMM edge connector

Package list

  • Jetson TX2 NX Module*1
