NVIDIA Jetson AGX Xavier Developer Kit

SKU
DJX10269A
Out of stock
Only 0 left
$1,026.99
Overview

Supported by NVIDIA JetPack and DeepStream SDKs, as well as CUDA®, cuDNN, and TensorRT software libraries, the kit provides all the tools you need to get started right away. And because it’s powered by the new NVIDIA Xavier processor, you now have more than 20X the performance and 10X the energy efficiency of its predecessor, the NVIDIA Jetson TX2.

In a compact form factor, Jetson AGX Xavier provides GPU workstation-level performance – 32 TOPS AI performance and 750 Gbps high-speed I/O performance, it consumes as low as 10W by configuration. Jetson AGX Xavier can provide higher levels of computing density, energy efficiency and AI reasoning capabilities at the Edge, enabling developers to quickly train and deploy neural networks.

As the first computer specially designed for Autonomous machines, Jetson AGX Xavier has enough performance to complete the following tasks: visual ranging, sensor fusion, positioning and mapping, obstacle detection, and route planning algorithms that are crucial to the new generation of robots.            Its small size and superior performance comparable to large workstations make it very suitable for Autonomous machines such as distribution and logistics robots, factory systems and large industrial UAVs.

Supported by NVIDIA JetPack and DeepStream SDKs, as well as CUDA®, cuDNN, and TensorRT software libraries, the kit provides all the tools you need to get started right away. And because it’s powered by the new NVIDIA Xavier processor, you now have more than 20X the performance and 10X the energy efficiency of its predecessor, the NVIDIA Jetson TX2.

Features

  • Up to 32TOPS and 750 Gbps high-speed I/O performance in a compact form factor of only 100 x 87 mm
  • Providehigher levels of computing density, energy efficiency and AI reasoning capabilities at the Edge
  • Integrated Volta GPUprovides 512 CUDA cores and 64 Tensor Cores for up to 11 TFLOPS FP16 or 22 TOPS of INT8 compute
  • Have more than 20X the performance and 10X the energy efficiency of TX2.
  • Intelligent machines powered by Jetson AGX Xavier have the freedom to interact and navigate safely in their environments, unencumbered by complex terrain and dynamic obstacles

Specifications

JETSON AGX XAVIER

GPU

512-core Volta GPU with Tensor Cores

CPU

8-core ARM v8.2 64-bit CPU, 8MB L2 + 4MB L3

Memory

32GB 256-Bit LPDDR4x | 137GB/s

Storage

32GB eMMC 5.1

DL Accelerator

(2x) NVDLA Engines

Vision Accelerator

7-way VLIW Vision Processor

Encoder/Decoder

(2x) 4Kp60 | HEVC/(2x) 4Kp60 | 12-Bit Support

Size

105 mm x 105 mm x 65 mm

Deployment

Module (Jetson AGX Xavier)

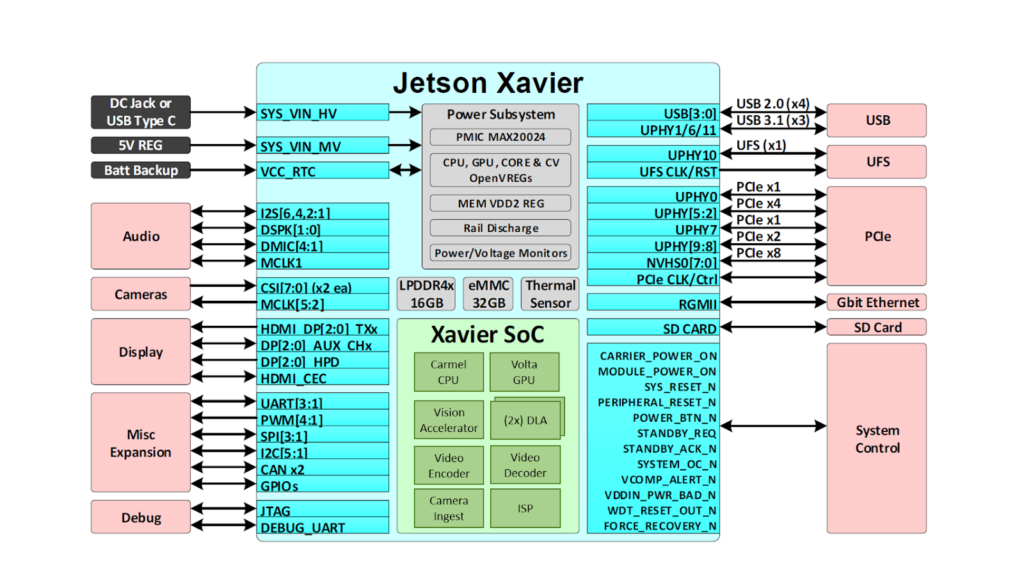

Developer Kit I/Os

Jetson AGX Xavier Module Interface

PCIe X16

x8 PCIe Gen4/x8 SLVS-EC

RJ45

Gigabit Ethernet

USB-C

2x USB 3.1, DP (Optional), PD (Optional) Close-System Debug and Flashing Support on 1 Port

Camera Connector

(16x) CSI-2 Lanes

M.2 Key M

NVMe

M.2 Key E

PCIe x1 + USB 2.0 + UART (for Wi-Fi/LTE) / I2S / PCM

40-Pin Header

UART + SPI + CAN + I2C + I2S + DMIC + GPIOs

HD Audio Header

High-Definition Audio

eSATAp + USB3.0 Type A

SATA Through PCIe x1 Bridge (PD + Data for 2.5-inch SATA) + USB 3.0

HDMI Type A

HDMI 2.0

uSD/UFS Card Socket

SD/UFS

Package list

  • Jetson AGX Xavier Developer Kit*1

External link & Wiki
