PiEEG (Brain-Computer Interface)

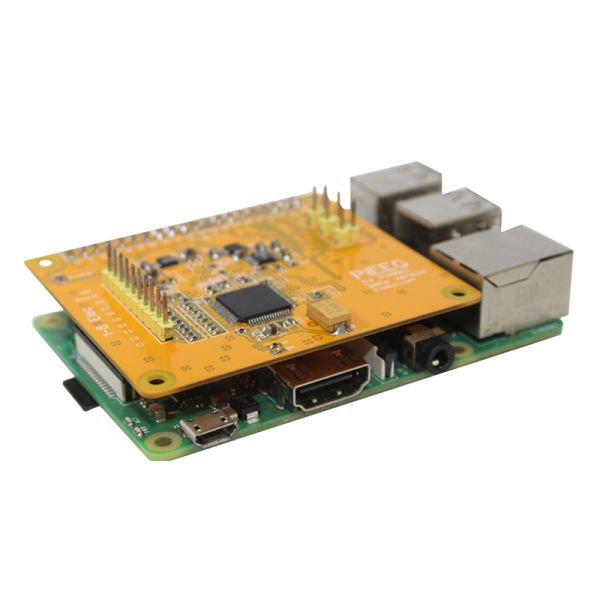

PiEEG is a shield that allows you to transform your Raspberry Pi into a brain-computer interface (EEG device).

Pls note that the RaspberryPi is not included in this product. You need to order seperately.

Descriptions

8 channel Open-source Raspberry Pi shield that measures EEG, EMG, and ECG bio-signals to provide an Easy way to the neuroscience world

PiEEG is an open-source Raspberry Pi shield that measures biosignals such as those used in electroencephalography (EEG), electromyography (EMG), and electrocardiography (ECG). PiEEG is versatile, easy to work with, and compatible with different types of electrodes.

Features:

• Compatible with Raspberry Pi 3,4 or 5
• 8 channels for connecting wet or dry electrodes
• Data transfer via SPI protocol with a frequency from 250 SPS to 16 kSPS and a resolution of 24 bits per channel
• Programmable signal gain: 1, 2, 4, 6, 8, 12, 24
• Ability to measure impedance

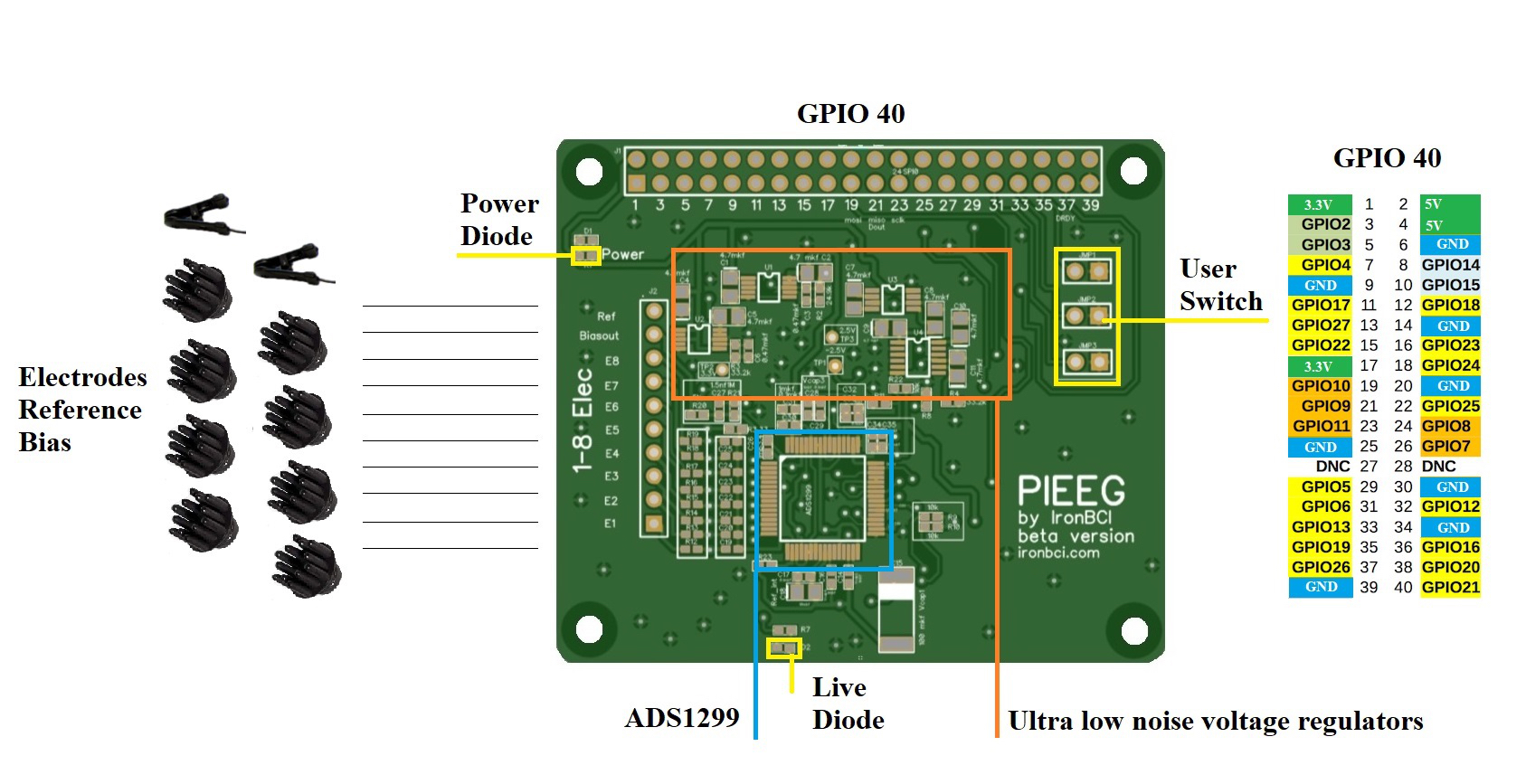

• LEDs for power indication and ADS1299 connection indication
• 3 free pins for connecting external objects (ground and Raspberry Pi channel)
• Easy programming with Python

Wiki & External Links

GitHub

PiEEG is not a medical device. Please read the liability before you start to use it

PiEEG Software

PiEEG Software Demo
