PowerFeather Solar Panel
$22.00
Availability:
In stock
SKU
CQC240319P1
Weight
950g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought
This is a 12 V, 10 W solar panel for ESP32-S3 PowerFeather. In ideal conditions, it is able to saturate ESP32-S3 PowerFeather's maximum charging current limit of 2 A.
Frequently Bought Together
Description

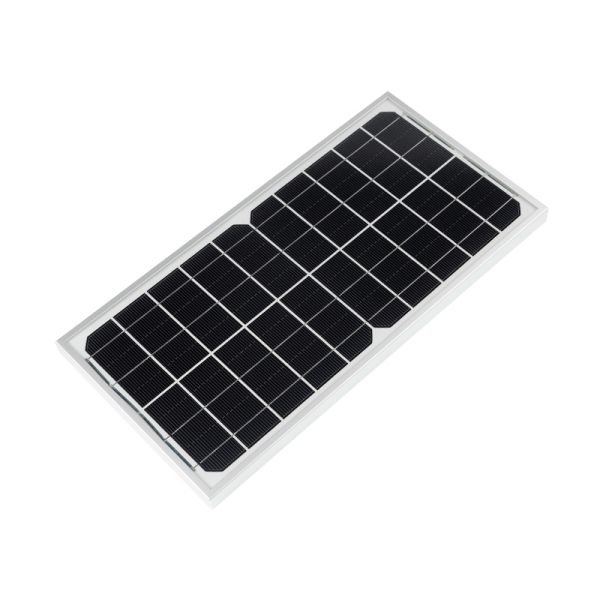

This is a 12 V, 10 W solar panel for ESP32-S3 PowerFeather. In ideal conditions, it is able to saturate ESP32-S3 PowerFeather's maximum charging current limit of 2 A. The rigid aluminum frame and tempered glass cover makes it suitable for outdoor installations. More importantly, this has an open-circuit voltage under 18 V - the maximum external DC voltage ESP32-S3 PowerFeather supports.
This solar panel can be easily connected to ESP32-S3 PowerFeather using the PowerFeather ProtoWing.
Specifications
| Cell Type | Monocrystalline |
| Power | 10 W |
| Vmp (Max Power Point Voltage) | 12 V |
| Voc (Open Circuit Voltage) | 13.9 V |
| Imp (Max Power Current) | 830 mA |
| Isc (Short Circuit Current) | 890 mA |
| Dimensions | 355 mm x 180 mm x 18 mm |
| Weight | 0.75 kg |
| Cable | 30 cm, DC5521 barrel jack |
| Frame | Aluminum |
| Front Cover | Tempered Glass |
| Back Sheet Color | White |
Package List
- (1) PowerFeather Solar Panel
Other Products
Useful Links
- See the Documentation for more hardware details and usage guides.
- Visit the Community Forum for announcements, conversations, help/support requests and showcases.
