Raspberry Pi AI Camera compatible with all RPI Series

$76.99
Availability: In stock
SKU
RPD08120A
Weight
60g

【Advanced Image Sensor】12.3 MP Sony IMX500 Intelligent Vision Sensor with a powerful neural network accelerator.
【High-Quality Imaging】Capable of capturing 4056×3040 10-bit images at 10fps and 2028×1520 10-bit images at 30fps with 2×2 binning.
【RP2040】Includes an integrated RP2040 chip for managing neural network firmware.
【Adjustable Focus】Offers a 78.3 (±3) degree FoV with manual or mechanical adjustable focus, providing versatility in various shooting scenarios.
【Compatibility】Works with all Raspberry Pi models.



Description

Based on the Sony IMX500 intelligent vision sensor, the Raspberry Pi AI Camera brings low-latency, high-performance AI capabilities to any camera application. The camera module is tightly integrated with the Raspberry Pi camera software stack, simplifying the process of users deploying custom neural network models.

This compact camera module combines a 12-megapixel CMOS image sensor with a built-in inference accelerator using the Sony IMX500 intelligent vision sensor. It supports various common neural network models, allowing developers to build complex visual AI applications without additional hardware accelerators easily.

The AI Camera can seamlessly add tensor metadata to captured pictures and videos, freeing up the Raspberry Pi host processor to handle other tasks. With tensor metadata support in the libcamera and Picamera2 libraries and the rpicam-apps application suite, the camera lowers the barrier to entry for beginners while providing powerful features and flexibility for advanced users.

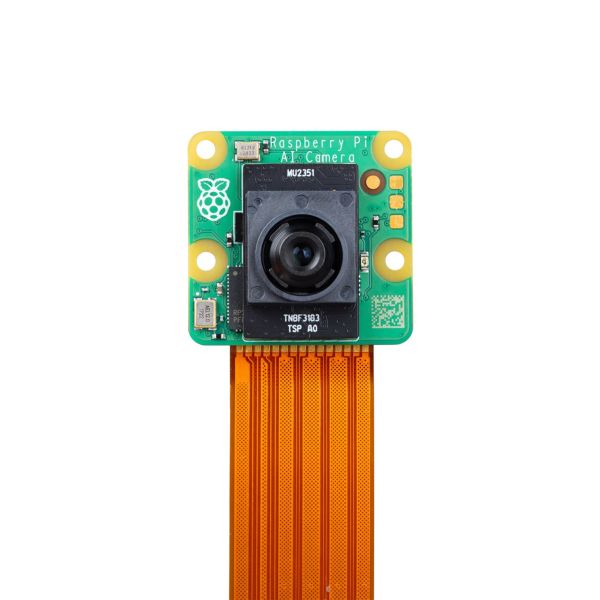

Raspberry Pi AI Camera

Feature

  • High Quality Sensor: Equipped with a 12.3 MP Sony IMX500 Intelligent Vision Sensor, which includes a powerful neural network accelerator for on-board inferencing.
  • RP2040 Chip: Integrated RP2040 for neural network firmware management, enhancing the camera's capabilities for AI applications.
  • Works with all Raspberry Pi models: comes with two 200mm cables (15 and 22 pins) for connecting to all Raspberry Pi computers, ensuring wide compatibility.



Where to use

  • Industrial Automation
  • Smart Home Security Systems
  • Agricultural Monitoring
  • Retail Analytics
  • Environmental Monitoring
  • Medical Health



Hardware Overview

specification of Raspberry AI camera

Specification

Microcontroller

Integrated RP2040

Camera Sensor

Sony IMX500

Pixel

12.3 MP

Framerates

2×2 binned: 2028×1520 10-bit 30fps

Full resolution: 4056×3040 10-bit 10fps

Sensor size

7.857 mm

Pixel size

1.55μm × 1.55μm

Field of view

78.3 (±3) degree FoV with manual/mechanical adjustable focus

Focal ratio

F1.79

Focal Length

4.74mm

Horizontal field of view

66 ±3 degrees

Vertical field of view

52.3 ±3 degrees

Input data type

'int8' or 'uint8'

Output

Image (Bayer RAW10), ROI, metadata, ISP output (YUV/RGB)

Input tensor maximum size

640(H) × 640(V)

Operating temperature

0°C to 50°C

Module dimensions

25 × 24 × 11.9 mm

Compatibility

Works with all Raspberry Pi models



Package List

  • 1x Raspberry Pi AI Camera
  • 1x CSI cable (15-pin for Pi 2/3/4)
  • 1x CSI cable (22-pin for Pi Zero/Pi 5)
  • 1x Lens adjustment tool



Wiki & External links
