Electro Vibration (EVIB) Meter - Soil Density Detector

This project aims to accelerate the process of identifying soil density values from the subgrade, subbase, and base course layers by integrating vibration, speed, and acceleration sensors connected to an Arduino Mega 2560 microcontroller. The data generated enables real-time monitoring and adjustment during the compaction process in accordance with SNI (Indonesian National Standard) 1738-2011.

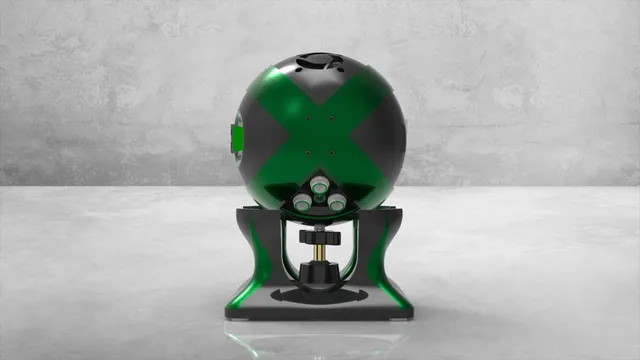

Electro Vibration (EVIB) Meter - Soil Density Detector

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Hardware Components

  • Robotdyn Arduino Mega 2560 Built-In WiFi

    Robotdyn France
    X 1 fenxiang
  • Accelero, Gyro and velocity sensor GY-87 10DOF MPU6050 + QMC5883

    Tiongkok, China
    X 1 fenxiang
  • LCD 3.2 inch touchscreen panel TFT LCD RGB Color Module ILI9341

    Tiongkok, China
    X 1 fenxiang
  • Active Buzzer

    Tiongkok, China
    X 1 fenxiang
  • LED 5mm RGB Difused Common Anode & Cathode

    Tingkok, China
    X 3 fenxiang
  • Arduino Mega TFT LCD Shield Adapter v2.2 for LCD 3.2" + Touchscr

    Tingkok, China
    X 1 fenxiang
  • Data Logger SD Card Reader Writer SPI Interface

    Tingkok, China
    X 1 fenxiang
  • SD Card Sandisk 4GB + Adapter

    X 1 fenxiang
  • XL4015 LED Display 5A DC Buck Step Down Voltage Converter Consta

    X 1 fenxiang
  • Adjustable Stepup LM2577 Step Up Boost Converter Modul + Voltmet

    X 1 fenxiang
  • Metal Push Button Switch Self Locked 12mm Ring (Power Switch)

    X 1 fenxiang
  • RTC DS3231 I2C Modul Clock

    X 1 fenxiang
  • GX12 Jack Aviation Plug Socket Konektor GX-12 12mm Male Female 2

    X 1 fenxiang
  • GX12 Jack Aviation Plug Socket Konektor GX-12 12mm Male Female 2

    X 1 fenxiang
  • DC-022B Female Socket Jack DC 5.5mm Waterproof Tahan Air dan Deb

    X 1 fenxiang
  • SUNLU 3D Print Filament PETG Hitam 1kg

    X 1 fenxiang

Tools, APP Software Used etc.

  • SNDWay Vibration Meter Digital SW-65A

  • Arduino IDE

    Arduino IDE

    Arduino
  • SolidWorks

  • Luxion Keyshot Rendering

  • Fritzing

Story

Soil compaction is a critical process in road construction, significantly affecting the durability and quality of infrastructure. Inadequate or uneven compaction often leads to premature road damage, such as cracking and potholes. Conventional methods for measuring soil density, such as the sand cone or nuclear density tests, are destructive, time-consuming, and unable to provide real-time data. To overcome these limitations, this research focuses on the design and development of a prototype EVIB (Electronic Vibration) Meter Detector based on Arduino Mega 2560 for real-time monitoring of soil compaction using vibration sensors mounted on heavy road roller equipment.

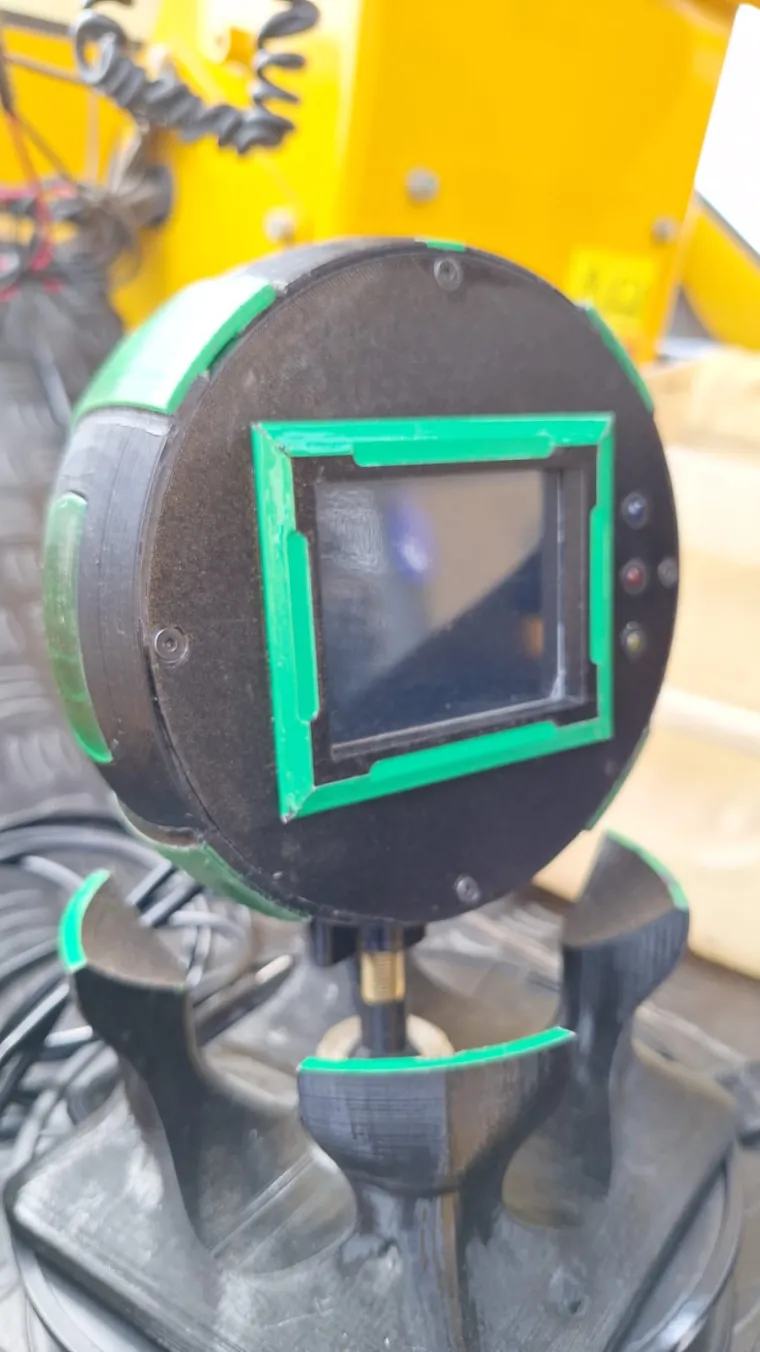

The system integrates a MPU6050 vibration sensor to measure acceleration, velocity, and orientation during compaction, along with a 3.2-inch TFT LCD touchscreen for real-time data visualization and a microSD card module for data logging. The collected vibration data is processed to estimate the California Bearing Ratio (CBR) percentage, which correlates with soil density and compaction quality, in accordance with SNI 1738-2011 standards. The device is designed for outdoor use, ensuring durability against environmental factors such as dust, vibration, and direct sunlight.

The prototype was tested over a 20-day period and validated against a commercial vibration meter (SNDWAY SW-65A) as a reference instrument. The results showed consistent data correlation, with the final CBR percentage reaching 34.23% on day 20. Statistical analysis, including mean, standard deviation, and coefficient of variation, confirmed the validity and reliability of the system. A radar plot comparison further demonstrated high accuracy and precision between the prototype and the reference device.

Blynk IoT 3rd Platform

The findings indicate that the developed EVIB meter prototype is capable of providing real-time, non-destructive, and reliable soil compaction monitoring, making it a practical and cost-effective solution for field applications in road construction and infrastructure projects. This system also has potential for integration with IoT platforms for remote monitoring via smartphones or computers, enhancing project management efficiency.

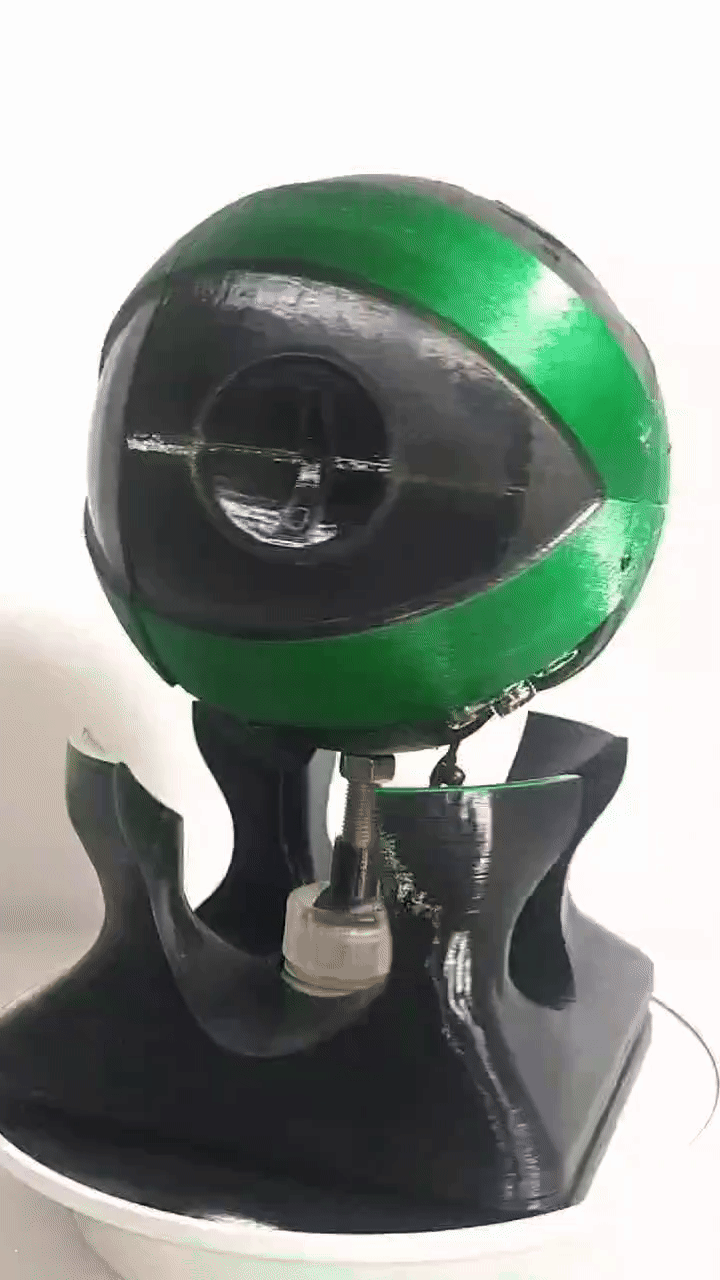

For more details, please watch the following video :

Animation Contruction Model






Code
  • EVIB Meter Source Code

    EVIB_Code_170045445868ba4cd7d3934.zip
    Download(0)
Schematic and Layout
  • Fritzing Schematic Diagram

    Download(0)

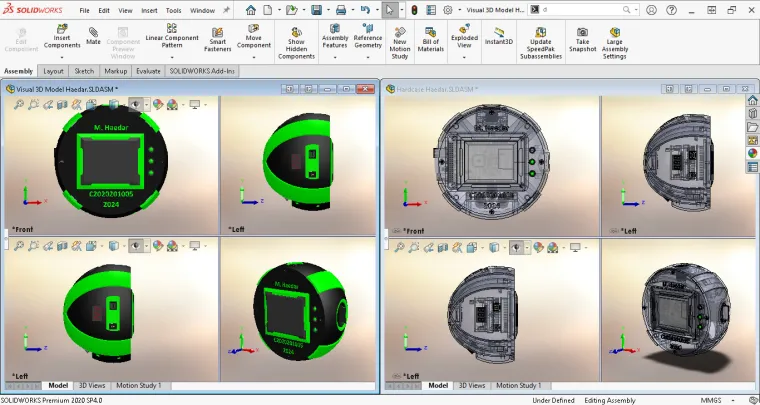

CAD-Custom parts and enclosures

Electro Vibration (EVIB) Meter - Soil Density Detector
