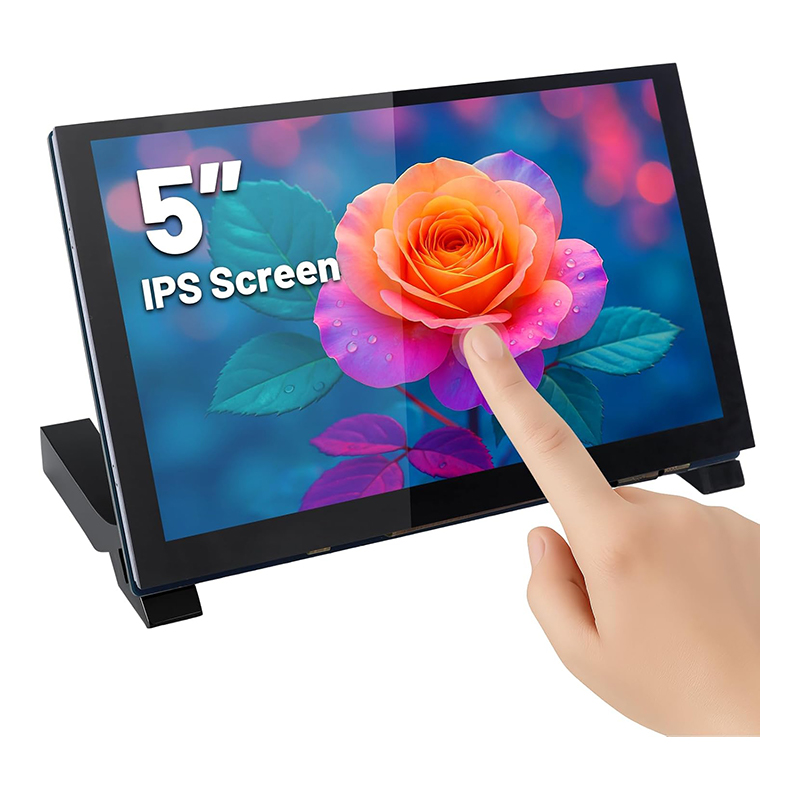

5inch DSI display IPS 800*480 touch screen compatible with Raspberry Pi
$34.90
Availability:
In stock
SKU
DSI05379I
Brand
elecrow
Weight
180g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought

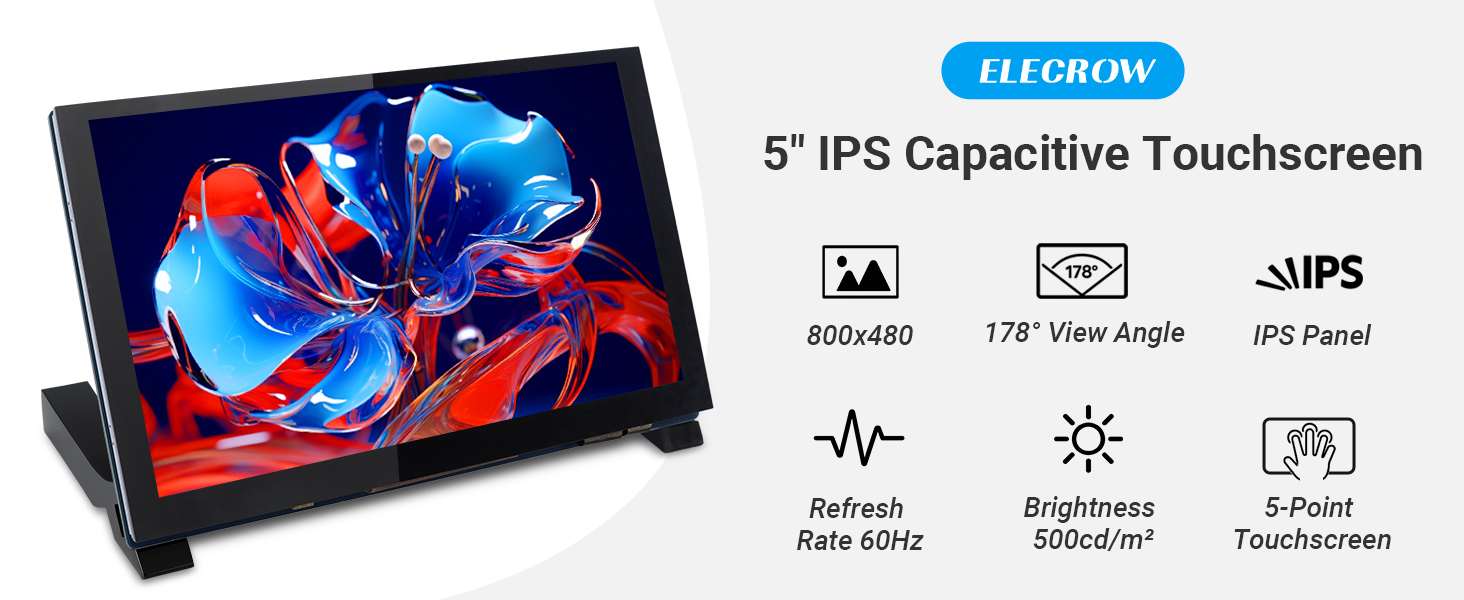

[IPS Touchscreen Monitor] 5-inch full-view IPS Raspberry Pi screen with 800x480 resolution.
[Capacitive Touch] Features a capacitive touch panel for smooth and accurate touch response.
[Plug & Play DSI Interface] No drivers needed—connect directly via MIPI DSI interface.
[Compatible with Multiple Mini PCs and SBCs] The mini monitor is compatible with Raspberry Pi 3/4/5 and small computer monitors for SBC applications.
[Backlight Brightness Adjustment] The touch screen monitor includes a physical brightness button and supports PWM signals for customizable backlight brightness.

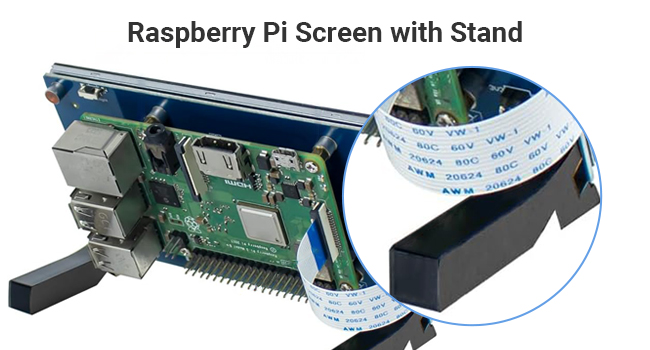

[Integrated Mounting Design] Rear mounting holes allow for direct attachment of Raspberry Pi boards to the display, making it perfect for compact, all-in-one embedded projects.
Frequently Bought Together
5-inch DSI Interface IPS Touch Display
This is a 5" Raspberry Pi LCD touchscreen with a resolution of 800*480 and a display area of 108*64.8mm. This product supports the Raspberry Pi DSI display interface, the screen has a capacitive touch panel, plug and play, and no installation required Driver. The design on the back of the screen with holes makes it convenient to install the Raspberry Pi directly in the product. The display is powered by the Raspberry Pi and does not require an external power supply. In addition, the screen has a backlight brightness adjustment button, which supports an external PWM signal for backlight brightness adjustment.

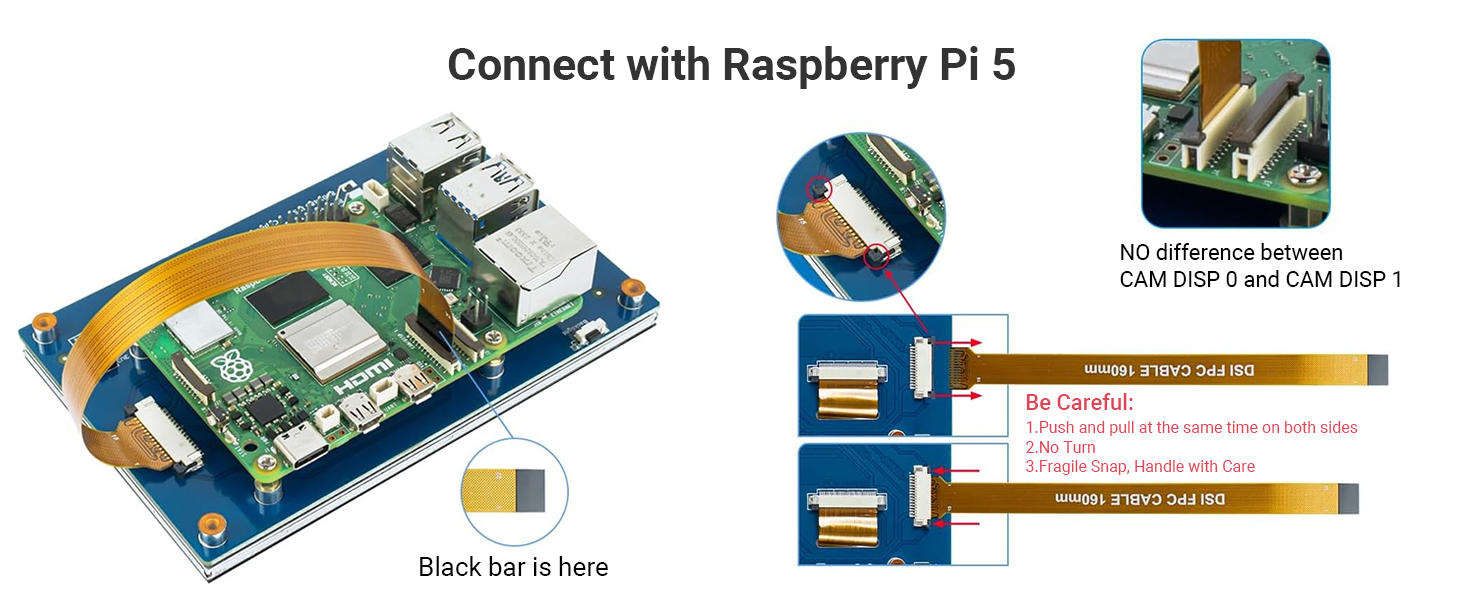

Note: If you connect with Raspberry Pi 5, a 15-pin to 22-pin FPC cable is needed.
OEM customization requests can be discussed for projects.
 |
 |
MIPI DSI 15-pin definition
Feature
- 800x480 resolution display, IPS full viewing angle
- Raspberry Pi MIPI DSI interface direct output, plug and play, no driver
- Support official system Raspbian, multi-touch;
- Support Ubuntu/Kali/Win10 IoT, single touch; Support Retropie
- A variety of backlight adjustment methods can be used in various environments
Specification
- Size：5 inch
- Resolution：800*480
- Refresh Rate: 60Hz
- Maximum Brightness: 500cd/m²
- LCD Interface Type: RGB888 Port
- Module Interface Type: MIPI DSI
- Touch Type: Capacitive Touch Screen
- View Angle: IPS 178°
- Active Area: 108*64.8mm
- Operating Voltage: 3.3v
- Maximum operating current: 3400mA
- Operating temperature: -20℃-70℃

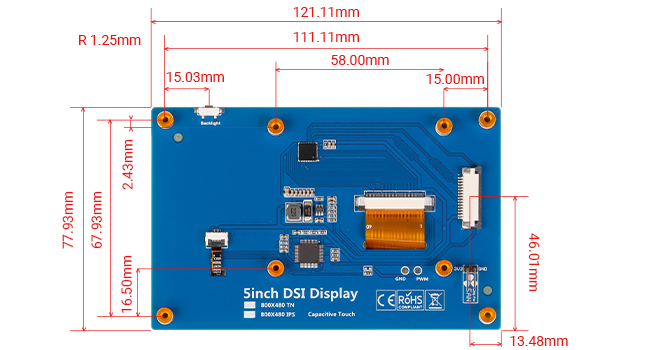

- Appearance Size：1*77.9mm
- Package Size：154*143*38mm
- Weight：180g
Package List
- 1x 5 inch Touch DSI Display
- 1x FFC-1.0-15P-10cm
- 1x FFC-1.0-15P-5cm
- 4x Screw(M2.5x4mm)
- 2x Screw(M2.5x12mm)
- 4x Copper pillar(M2.5)
