[Interaction mode] Supports capacitive touch operation and rotary input. The knob supports clockwise, counterclockwise rotation and full press operation.
[High-performance main control] Equipped with 32-bit dual-core ESP32-S3 chip, the maximum clock frequency is 240MHz, with strong performance.
[Wireless communication] Supports 2.4G WiFi and BLE low-power Bluetooth.
[Expansion interface] Equipped with 5V charging interface, providing three expansion interfaces of UART, I2C and FPC
[Low-power design] Extending the battery life of the device and reducing energy consumption.
[Wide compatibility] Supports Arduino IDE, Espressif IDF, Lua RTOS, Esphome-homeassistant/PlatformIO/Micro Python, and supports LVGL library.
The rotary screen is an intelligent interactive device that usually consists of a circular knob and a display. The knob can be rotated to control various functions, while the display is used to display relevant information.

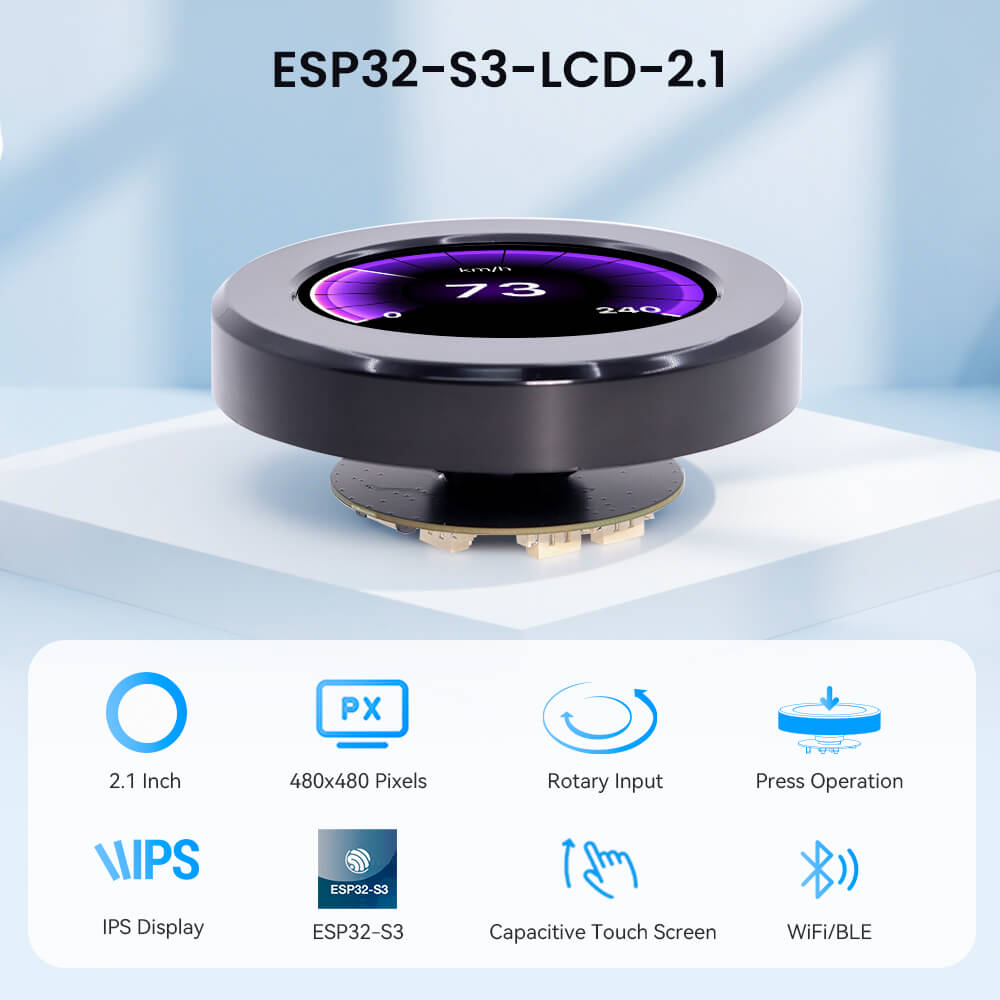

ESP32 Display - 2.1 inch rotary screen, uses high-performance ESP32-S3 chip, equipped with 32-bit dual-core chip. The maximum clock frequency reaches 240MHz, with strong performance and easy to handle complex tasks.
Supports 2.4G WiFi and BLE low-power Bluetooth, to achieve reliable wireless communication, easily connect to the Internet, suitable for smart home, industrial control, portable devices and other scenarios.

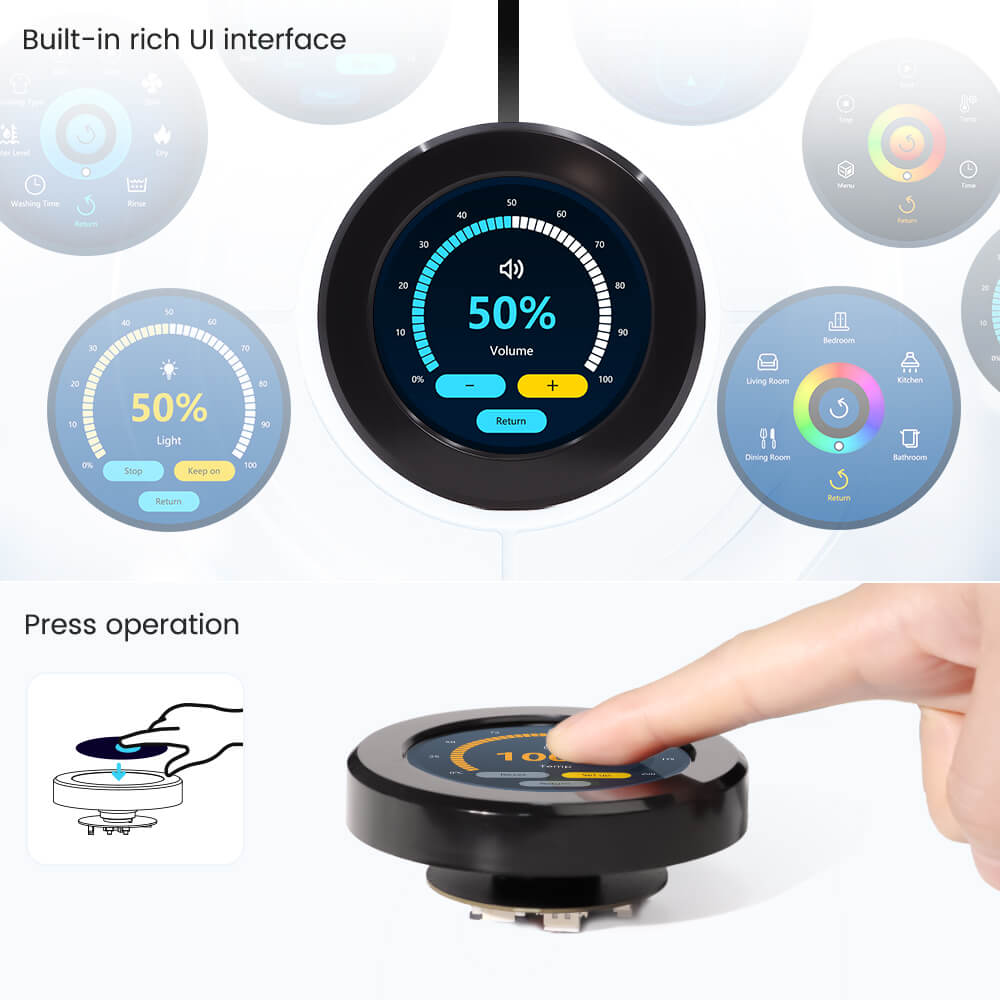

Supports capacitive touch operation and knob input, the knob supports clockwise, counterclockwise rotation and full press operation, smooth feel, and various interaction methods.

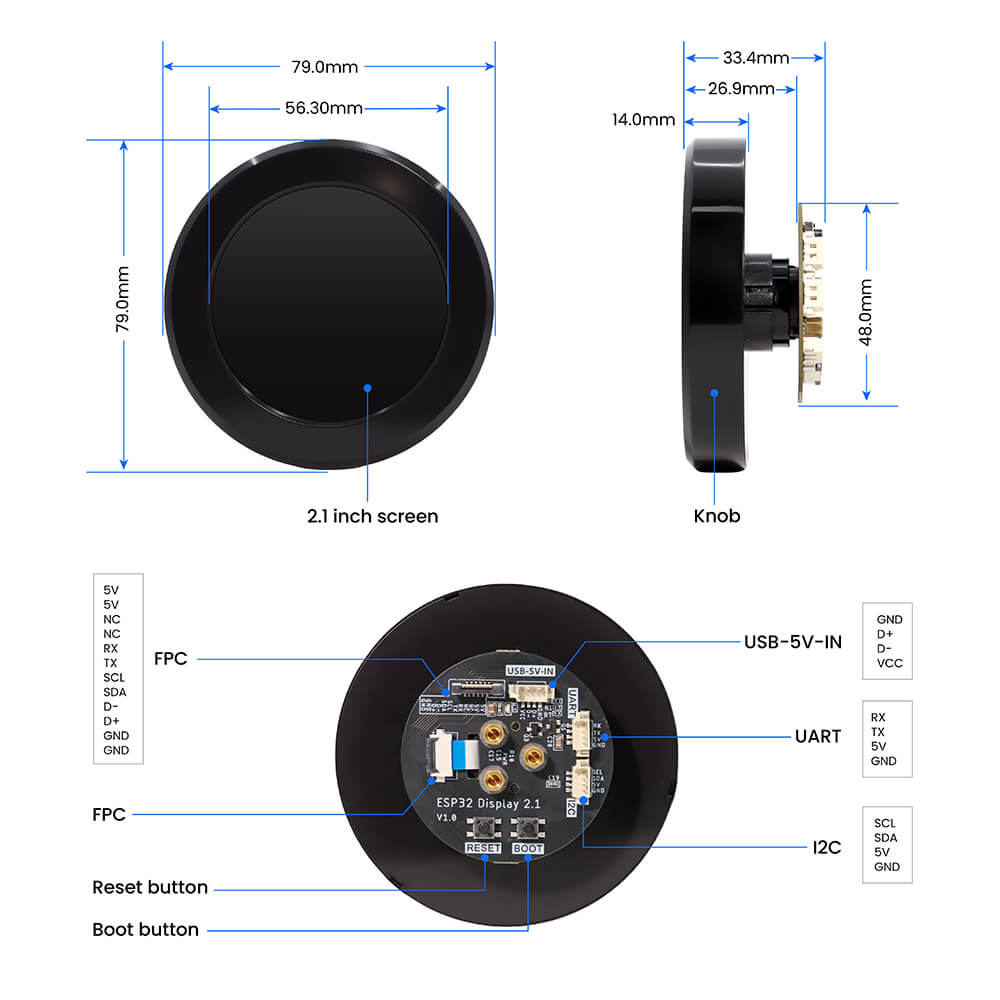

The 5V charging interface supports both power supply and program burning, and is also equipped with three expansion interfaces: UART, I2C, and FPC, to meet various development needs.
It supports Arduino IDE, Espressif IDF, Lua RTOS, Home Assistant/PlatformIO/Micro Python, and supports the LVGL library; you can design the UI interface yourself. It is an ideal platform for DIY projects.
ESP32 Display - 2.1 inch rotary knob screen is not just an interactive module, but an intelligent interaction solution that combines high performance, multi-function, and ease of use. Whether you are an IoT developer, smart home enthusiast, or professional, you can find an efficient tool that meets your needs.
Self-developed by Elecrow with exclusive design.

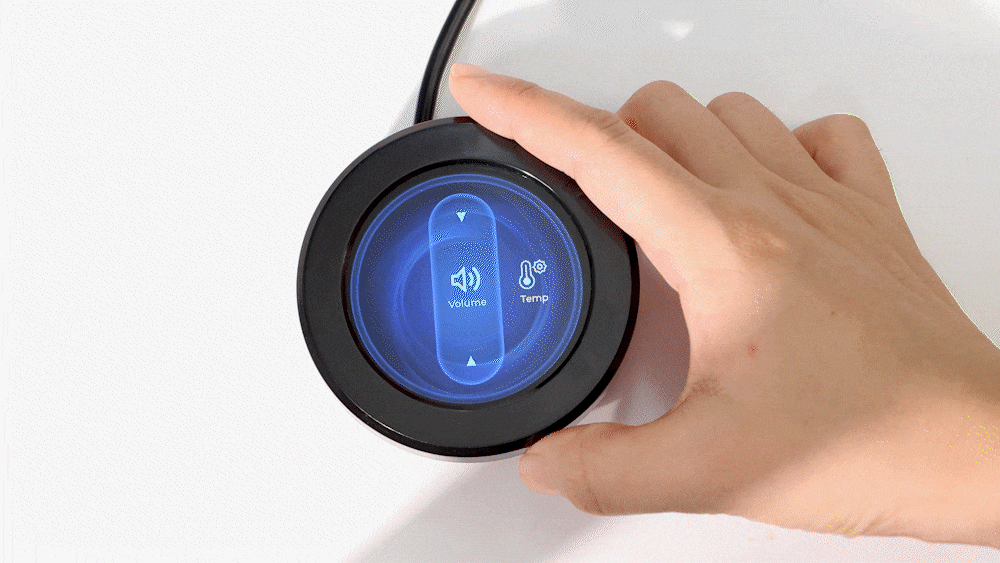

Rotary input with smooth feel
Support multiple development environments
Compatible with LVGL graphics library
Application Scenarios
Details Overview
Who Needs This?
Makers/open source hardware enthusiasts: DIY smart home controllers, light regulators, desktop instruments, custom input devices, etc.
Home appliance or IOT manufacturers: develop customized control equipment, shorten product design cycle, intend to mass produce, etc.
Education and training institutions: provide teaching kits for courses related to embedded systems, the Internet of Things, and UI design, which are easy for students to get started and intuitive to operate.
|
Main Chip: ESP32-S3R8 |
|
|
Processor |
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz |
|
System memory |
512KB SRAM、8M PSRAM |
|
Storage |
16M Flash |
|
Screen |
|
|
Size |
2.1 inch |
|
Screen Type |
IPS |
|
Touch Type |
Capacitive Touch |
|
Resolution |
480*480 |
|
Wireless Communication |
|
|
Bluetooth |
Bluetooth Low Energy and Bluetooth 5.0 |
|
WiFi |
Support 802.11a/b/g/n，2.4GH |
|
Hardware |
|
|
UART Interface |
1x UART1, 1x UART0; ZX-MX 1.25-4P |
|
I2C Interface |
ZX-MX 1.25-4P |
|
FPC connector |
12P, Power supply burning port |
|
Button |
RESET button, BOOT button, confirmation button (knob press switch) |
|
LED Light |
Power indicator, LED ambient light |
|
Other |
|
|
Power Input |
5V/1A |
|
Operating temperature |
-20~65℃ |
|
Storage temperature |
-40~80℃ |
|
Operation Power |
Module: DC5V Main Chip: 3.3V |
|
Size |
79*79*30mm |
|
Shell |
Aluminum alloy + plastic + acrylic |
|
Net Weight |
80g |
