CrowPanel 2.8 inch Pico HMI module

CrowPanel Pico Display-2.8 inch 320*240 Module TFT LCD Touchscreen with RP2040 Support C/C++/MicroPython/LVGL

CrowPanel Pico Display-2.4 inch 320*240 TFT LCD Touchscreen with RP2040 Support LVGL/C/C++/MicroPython

As low as $13.90
Availability: In stock
Only %1 left
SKU
DIS09024P
Brand
elecrow
Weight
100g

【Powerful Performance with RP2040 Microcontroller】Driven by a 32-bit dual-core chip boasting a clock speed of up to 133 MHz, enabling exceptional performance.

【Flexible Expansion】Versatile I/O peripheral options combine with a unique programmable input/output (PIO) subsystem encompassing a multitude of practical interfaces, leading to exceptional extensibility.

【Extensive Compatibility】Supporting C/C++, MicroPython programming languages,compatible with the Raspberry Pi ecosystem and well-suited for TensorFlow Lite and LVGL and SquareLine Studio, wide compatibility.

【EasyStart】Abundant development SDKs coupled with comprehensive guidance documentation, ensure easy use.

Description

CrowPanel Pico Display is an HMI module series that utilizes the powerful Raspberry Pi RP2040 (ARM Cortex-M0+) as its main controller. It is equipped with a 32-bit dual-core chip running at a clock frequency of up to 133 MHz. With 264kb of built-in SRAM and a 2MB flash memory chip, it integrates power supply, voltage regulation, and counter functions into a single microcontroller. This series of touch screens incorporate high performance, low cost, and user-friendly features.

The Pico 2.4" Display offers flexible I/O peripheral interfaces and a unique Programmable Input/Output (PIO) subsystem. It includes practical communication interfaces such as I2C, UART, general-purpose IO ports, and USB. It also features a lithium battery interface and a buzzer alarm, enabling communication with almost any external device. This provides professional users with flexibility and powerful expandability, allowing seamless connection to the physical world and control of various aspects of smart homes.

The module comes with abundant resources, including development SDK, documentation. It has a very low entry barrier, making it suitable for beginners and hobbyist users. It supports C/C++ and Micro Python programming languages, is compatible with the Arduino development environment and Raspberry Pi ecosystem, and is suitable for the TensorFlow Lite open source machine learning framework. It also supports the LVGL graphics library and SquareLine studio and can customize the desired UI interface.

It serves as an excellent platform for machine learning applications and is the preferred solution for Pico-like HMI interaction terminals.

OEM customization requests can be discussed for projects.

Cropanel Pico 2.4 inch HMI module features

Support multiple development environments

It supports a variety of development environments such as Arduino IDE, Thonny IDE, and Micro Python, to meet the needs of different developers and make every project possible.

Pico 2.4 inch HMI module support MicroPython/Arduino IDE/Thonny IDE

Pico 2.4 inch HMI module support multiple development environments.

Support open-source Graphics Library-LVGL

It supports the LVGL graphics library. You can design a variety of your UIs.

Pico 2.4 inch HMI module support open-source Graphics Library-LVGL

Simplifying UI Design and Development with SquareLine Studio

Easily design and implement your own LVGL UI with SquareLine Studios, and export ready-to-use projects with one click.

2.4 inch HMI display support SquareLine Studio

Connect with more than 150+ Crowtail sensors

Pico 2.4 inch display connect with more than 150+ Crowtail sensors

Application Scenario

2.4 inch HMI pico module support multiple application scenarios

Hardware Overview

hardware overview of Pico 2.4 inch display



GPIO Pin Definition

P1

GP0/UART0 TX

P9

GP19

P2

GP1/UART0 RX

P10

GP20/I2C0 SDA

P3

GP2/I2C1 SDA

P11

GP21/I2C0 SCL

P4

GP3/I2C1 SCL

P12

GP26/ADC1/I2C1 SDA

P5

GP4/UART1 TX

P13

GP27/ADC0/I2C1 SCL

P6

GP5/UART1 TX

P14

GP28/ADC2

P7

GP6/I2C1 SDA

P15

GND

P8

GP7/I2C1 SCL

P16

VCC 3V3





Feature

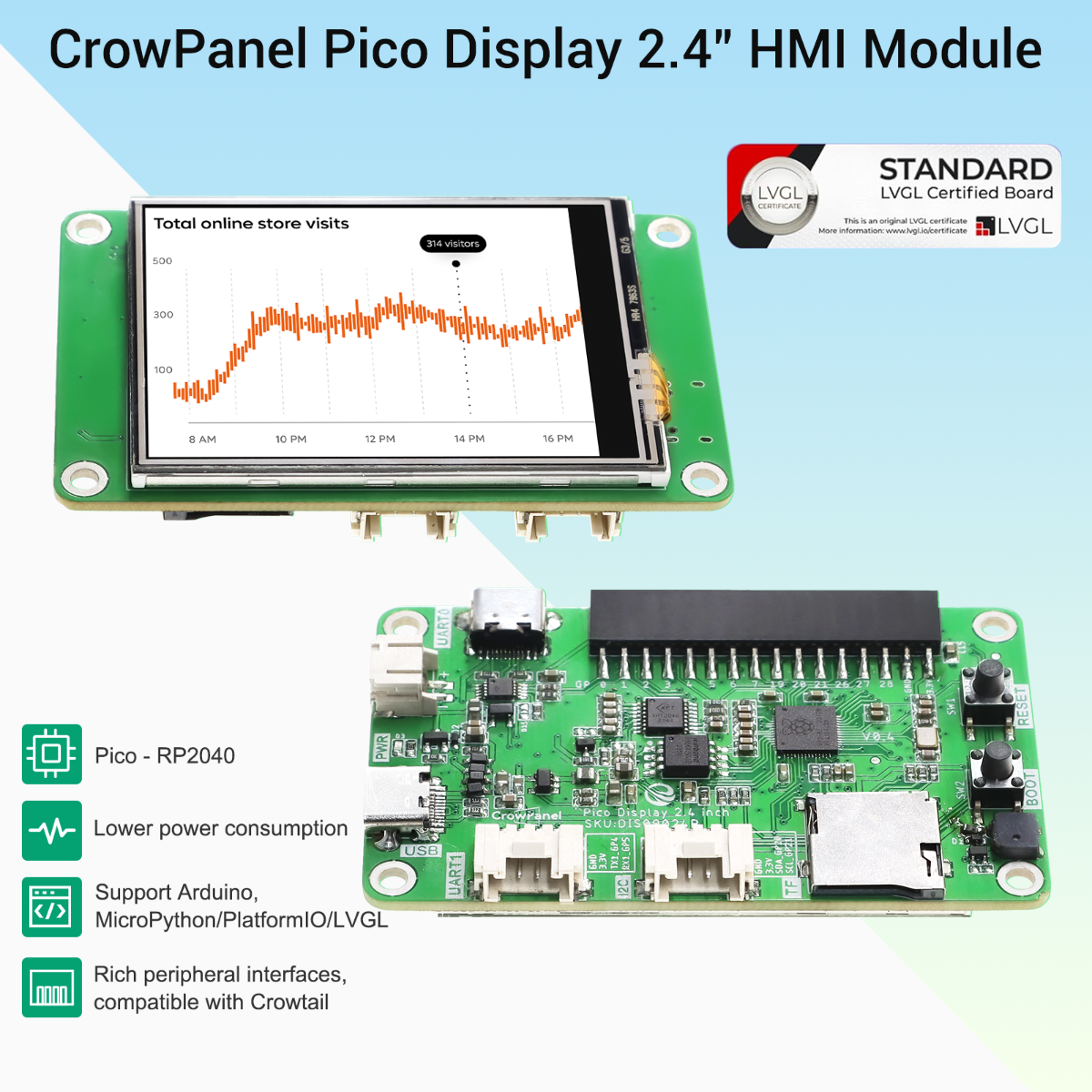

  • 2.4 inch Pico Display: 320*240 resolution, resistive touch and comes with a touch pen
  • RP2040 Microcontroller: Equipped with a 32-bit dual-core chip, it achieves a maximum clock frequency of 133 MHz.
  • TN Panel: Offers a wide color gamut and exceptional brightness for optimal display performance.
  • Energy Efficiency: Supports low-power sleep and hibernation modes, promoting energy conservation and environmental consciousness.
  • Exceptional Extensibility: A wealth of interfaces, including I2C, UART, IO ports, USB, a lithium battery interface, and a buzzer alarm, ensures remarkable extensibility.
  • Equipped with Crowtail interface (GPIO and I2C interface), can be integrated with Crowtail sensor.
  • Ease of Use: A user-friendly experience is guaranteed with the provision of a detailed development SDK, and comprehensive documentation, ensuring a smooth learning curve.
  • Broad Compatibility: Support Arduino IDE, supports C/C++, MicroPython programming languages while exhibiting compatibility with the Raspberry Pi ecosystem. It is also well-suited for the TensorFlow Lite open-source machine learning framework.
  • Customize your own UI: Supports the LVGL graphics library and SquareLine studio, and can customize the desired UI interface.
  • Versatile Applications: Ideally suited for a wide range of applications within the Internet of Things (IoT), intelligent home control, smart factories, intelligent agriculture, and as an HMI interactive terminal.



Specification



Main Chip

RP2040

Processor

Dual-core 32-bit ARM Cortex-M0+ @ 133MHz

Memory

264kB on-chip SRAM (supports up to 16MB of off-chip flash memory)

Development Language

MicroPython, C/C++

Development Environment

CircuitPython, Arduino IDE, Thonny IDE

Size

2.4 inch

Resolution

320*240

Signal Interface

SPI

Touch Type

Resistive Touch

Panel Type

TFT LCD

Brightness

250~350 cd/m² (Typ.)

Viewing Angle

70/70/70/70(L/R/U/D)

Interface

USB、I2C、UART、IO、SD Card Slot and battery interface

Power Input

5V-2A

Dimensions

51*79.6*13.4mm(W*H*D)

Active Area

36.72*48.96mm(W*H)





Package List

  • 1x CrowPanel Pico Display-2.4 inch
  • 1x Touch Pen
  • 1x 4Pin Cable
  • 1x USB Cable
