CrowPanel 2.8 inch Pico HMI module

CrowPanel Pico Display-2.8 inch 320*240 Module TFT LCD Touchscreen with RP2040 Support C/C++/MicroPython/LVGL

4.3 inch Pico display HMI module

CrowPanel Pico Display-4.3 inch 320*240 HMI Module TFT LCD Touchscreen with RP2040 Support C/C++/MicroPython/LVGL

CrowPanel Pico Display-3.5 inch 480*320 HMI Module TFT LCD Touchscreen with RP2040 Support C/C++/MicroPython/LVGL

As low as $14.90
Availability: In stock
Only %1 left
SKU
DIS01135
Brand
elecrow
Weight
140g

【Powerful Performance with RP2040 Microcontroller】Driven by a 32-bit dual-core chip boasting a clock speed of up to 133 MHz, enabling exceptional performance.

【Flexible Expansion】Versatile I/O peripheral options combine with a unique programmable input/output (PIO) subsystem encompassing a multitude of practical interfaces, leading to exceptional extensibility.

【Extensive Compatibility】Supporting C/C++, MicroPython programming languages,compatible with the Raspberry Pi ecosystem and well-suited for TensorFlow Lite and LVGL, wide compatibility.

【Easy Start】Abundant development SDKs coupled with comprehensive guidance documentation, ensure easy use.

Description

CrowPanel Pico Display is an HMI module series that utilizes the powerful Raspberry Pi RP2040 (ARM Cortex-M0+) as its main controller. It is equipped with a 32-bit dual-core chip running at a clock frequency of up to 133 MHz. With 264kb of built-in SRAM and a 2MB flash memory chip, it integrates power supply, voltage regulation, and counter functions into a single microcontroller. This series of touch screens incorporate high performance, low cost, and user-friendly features.

The Pico 3.5” Display has a resolution of 480*320 and comes with a touch pen for flexible screen manipulation. It has flexible I/O peripherals and a unique programmable input/output (PIO) subsystem, including practical communication interfaces such as I2C, UART, common IO ports, and USB. It also features a lithium battery interface and a buzzer alarm, enabling communication with almost any external device. This provides professional users with flexibility and powerful expandability, allowing seamless connection to the physical world and control of various aspects of smart homes.

The module comes with abundant resources, including development SDK, and documentation. It has a very low entry barrier, making it suitable for beginners and hobbyist users. It supports C/C++ and Micro Python programming languages, is compatible with the Raspberry Pi ecosystem, and is suitable for the TensorFlow Lite open-source machine learning framework and the LVGL graphics library. It serves as an excellent platform for machine learning applications and is the preferred solution for Pico-like HMI interaction terminals.

OEM customization requests can be discussed for projects.

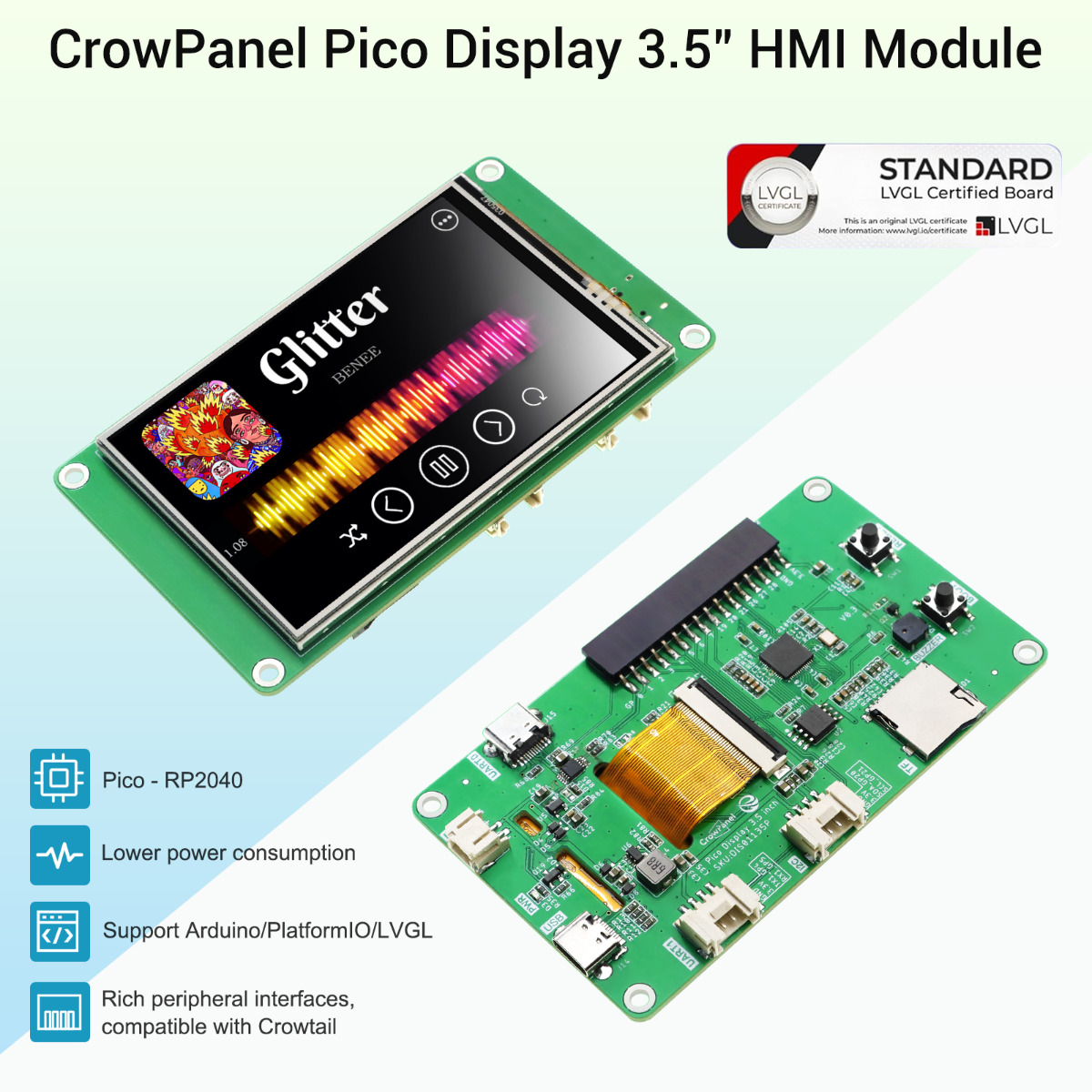

3.5 inch Raspberry Pi Pico display features

Support multiple development environments

It supports a variety of development environments such as Arduino IDE, Thonny IDE, and MicroPython, to meet the needs of different developers and make every project possible.

3.5 inch HMI module support multiple development environments

3.5 inch HMI display support multiple development languages

Support open-source Graphics Library-LVGL

It supports the LVGL graphics library. You can design a variety of your UIs.

3.5 inch touch module support open-source Graphics Library-LVGL

Simplifying UI Design and Development with SquareLine Studio

Easily design and implement your own LVGL UI with SquareLine Studios, and export ready-to-use projects with one click.

3.5 inch touchscreen monitor can use SquareLine Studio easily

Connect with more than 150+ Crowtail sensors

3.5 inch HMI module connect with crowtail sensors

Application Scenario

Pico 3.5 inch display support multiple applications

Hardware Overview

Pico 3.5inch HMI module hardware overview



GPIO Pin Definition

P1

GP0/UART0 TX

P9

GP19

P2

GP1/UART0 RX

P10

GP20/I2C0 SDA

P3

GP2/I2C1 SDA

P11

GP21/I2C0 SCL

P4

GP3/I2C1 SCL

P12

GP26/ADC1/I2C1 SDA

P5

GP4/UART1 TX

P13

GP27/ADC0/I2C1 SCL

P6

GP5/UART1 TX

P14

GP28/ADC2

P7

GP6/I2C1 SDA

P15

GND

P8

GP7/I2C1 SCL

P16

VCC 3V3



Feature

  • 3.5 inch Pico Display: 480*320 resolution, resistive touch and comes with a touch pen
  • RP2040 Microcontroller: Equipped with a 32-bit dual-core chip, it achieves a maximum clock frequency of 133 MHz.
  • TN Panel: Offers a wide color gamut and exceptional brightness for optimal display performance.
  • Energy Efficiency: Supports low-power sleep and hibernation modes, promoting energy conservation and environmental consciousness.
  • Exceptional Extensibility: A wealth of interfaces, including I2C, UART, IO ports, USB, a lithium battery interface, and a buzzer alarm, ensures remarkable extensibility.
  • Ease of Use: A user-friendly experience is guaranteed with the provision of a detailed development SDK, and comprehensive documentation, ensuring a smooth learning curve.
  • Broad Compatibility: Supports C/C++, and MicroPython programming languages while exhibiting compatibility with the Raspberry Pi ecosystem. It is also well-suited for the TensorFlow Lite open-source machine learning framework and the LVGL graphics library.
  • Versatile Applications: Ideally suited for a wide range of applications within the Internet of Things (IoT), intelligent home control, smart factories, intelligent agriculture, and as an HMI interactive terminal.



Specification

Main Chip

RP2040

Processor

Dual-core 32-bit ARM Cortex-M0+ @ 133MHz

Memory

264kB on-chip SRAM (supports up to 16MB of off-chip flash memory)

Size

3.5 inch

Resolution

480*320

Signal Interface

SPI

Touch Type

Resistive Touch

Panel Type

TFT LCD

Brightness

250~350 cd/m² (Typ.)

Viewing Angle

70/70/70/70(L/R/U/D)

Interface

USB、I2C、UART、IO、SD Card Slot and battery interface

Power Input

5V-2A

Active Area

53.64*71.52mm(W*H)

Dimensions

62.5*104.5*13.5mm(W*H*D)



Package List

  • 1x CrowPanel Pico Display-3.5 inch
  • 1x Touch Pen
  • 1x USB Cable
  • 1x 4pin DuPont cable



Wiki & External links

Write Your Own Review
