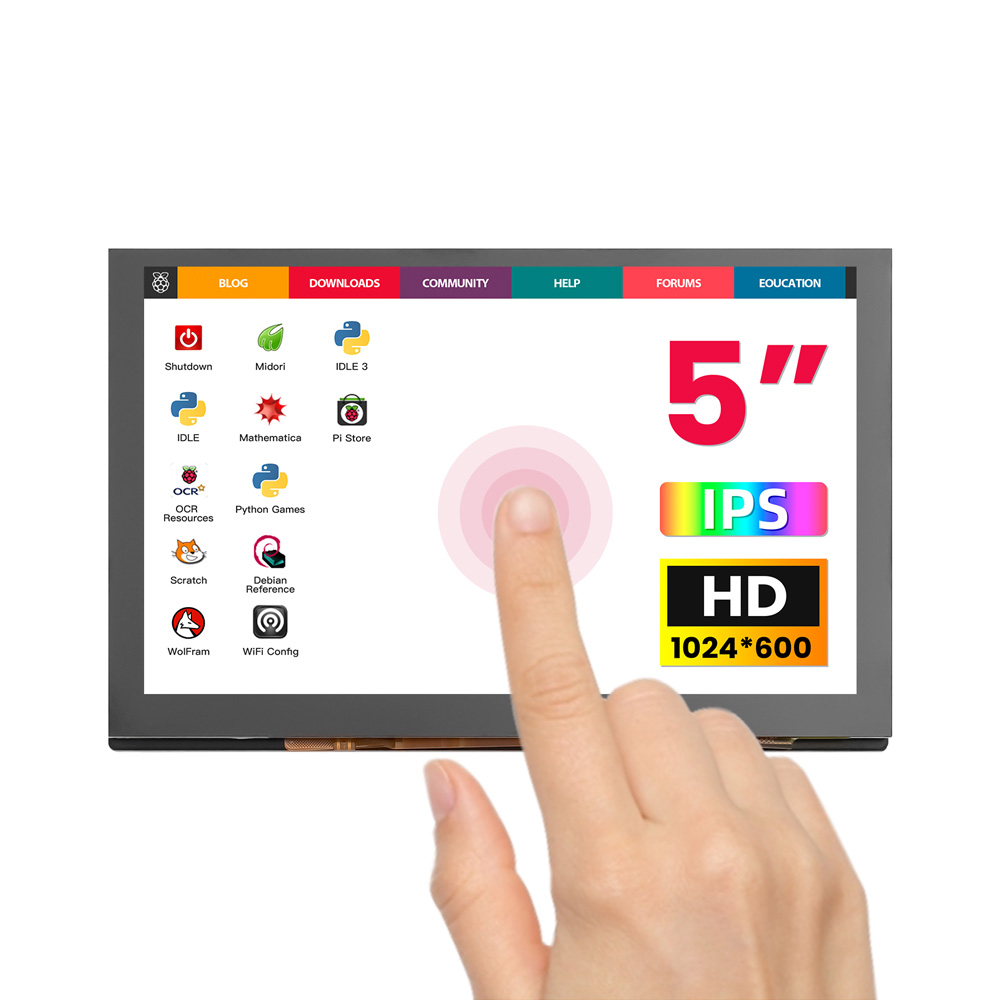

5inch HD Touch Display-D 1024*600 IPS Screen Compatible with Raspberry Pi/BB Black, etc

5inch IPS HD Raspberry Pi Display

This 5-inch HD display features an IPS panel with a native resolution of 1024×600 and supports 1080P signal input via intelligent scaling, delivering a rich and realistic visual experience. The screen utilizes a 5-point capacitive touch solution, enabling driverless touch control via USB, providing a smooth and responsive operating experience on Windows and various development platforms. The device also supports USB dimming and has an FPC flexible cable expansion interface, facilitating diverse installation and application scenarios.

This 5-inch screen is equipped with an OSD menu, allowing easy adjustment of parameters such as brightness and contrast. Its excellent compatibility fully supports Raspberry Pi series development boards (compatible with Raspbian/Ubuntu/Win10 IoT systems, supporting multi-touch, driverless), perfectly matching the entire Windows 7 to 11 operating system series (achieving five-point touch, driverless), and can also connect to mainstream gaming devices such as PS4 and Xbox. It comes with an acrylic stand, and mounting holes on the back of the screen allow direct connection of the Raspberry Pi board to the display. The 5-inch screen has passed multiple international certifications, including CE and RoHS, ensuring stable and reliable performance in applications such as development and debugging, industrial control, and multimedia entertainment.

OEM customization requests can be discussed for projects.

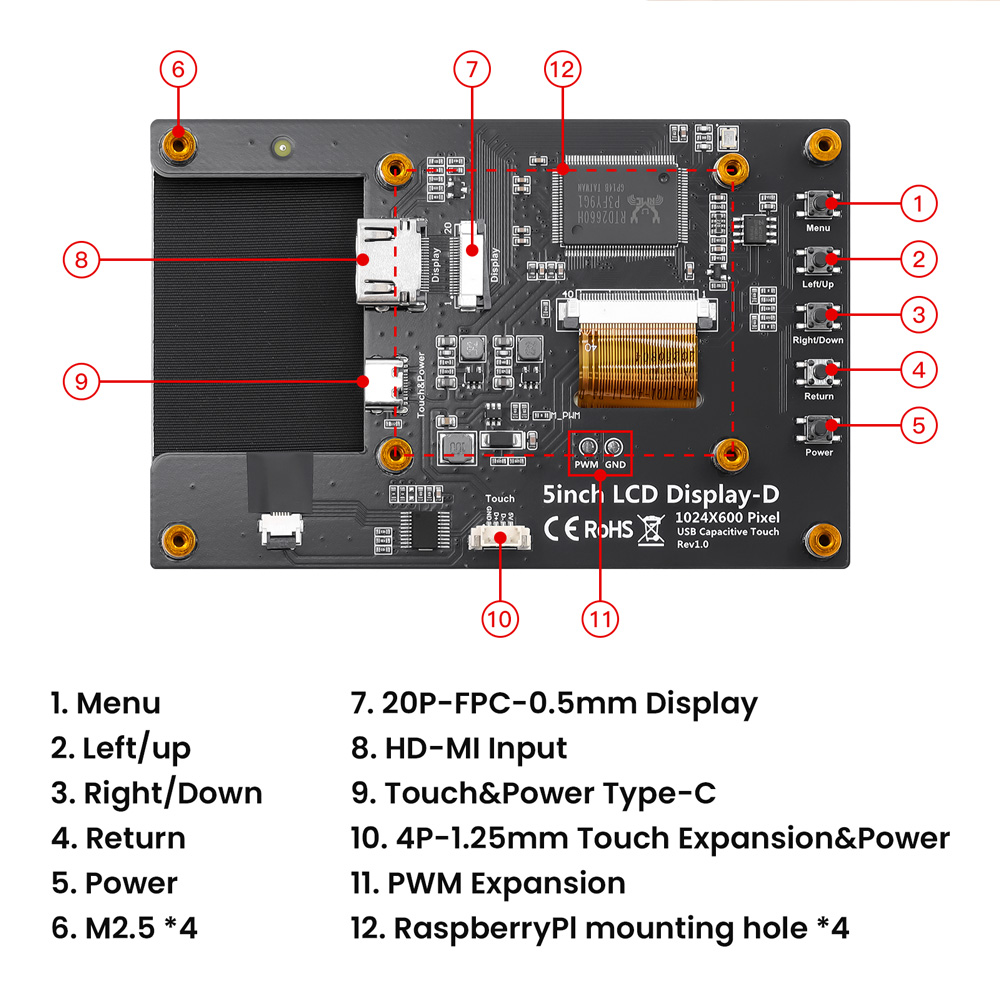

Hardware Overview

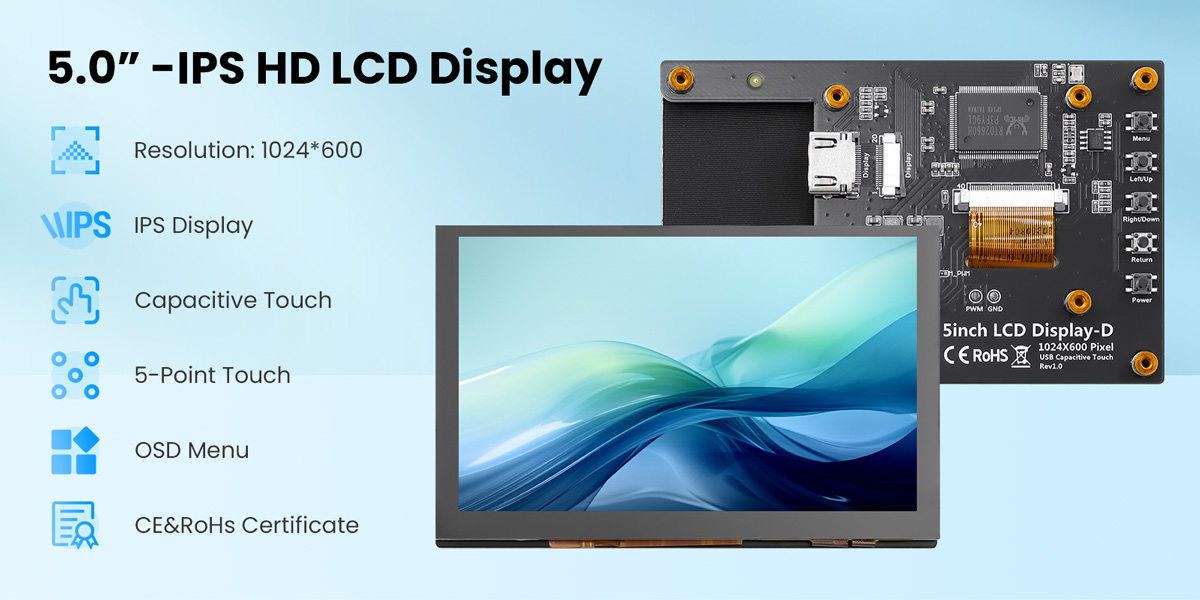

Feature

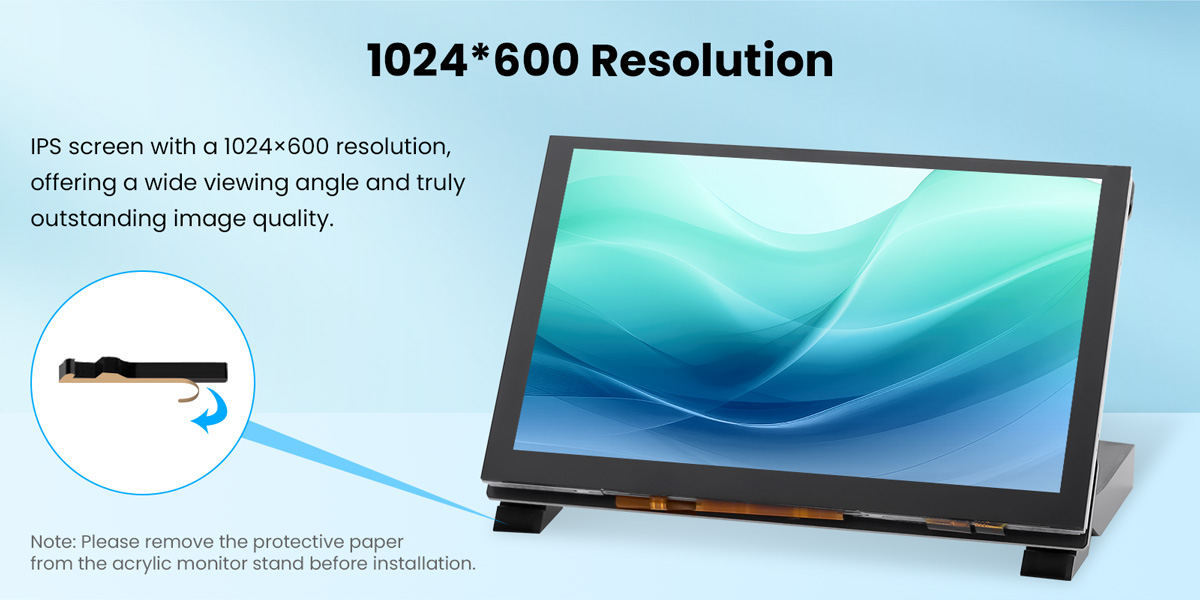

• Superior Display: Utilizes a 5-inch IPS full-view panel with a physical resolution of 1024×600, supporting up to 1080P signal input for a crisp and lifelike picture.
• Precise Touch: Integrates a 5-point capacitive touchscreen with USB communication, offering plug-and-play functionality without drivers, ensuring smooth and responsive operation.
• Professional Functions: Features a built-in OSD menu for adjusting brightness and contrast; supports USB dimming and FPC flexible cable expansion for easy integration.

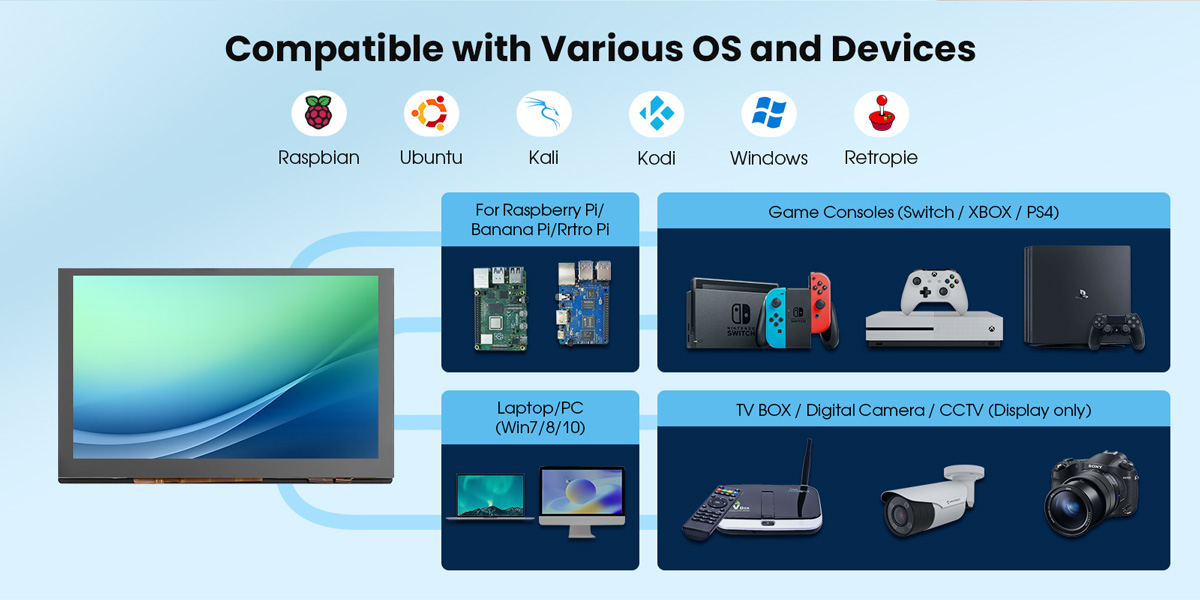

• Wide compatibility: Compatible with mainstream mini PCs such as Raspberry Pi (3/4/5), BB Black, and Banana Pi; supports systems such as Raspbian, Ubuntu, and WIN10 IoT; supports Windows 7/8/8.1/10/11 systems and game consoles such as PS4 and Xbox.
• Reliable Certifications: The product is CE and RoHS certified, ensuring quality and environmental safety.

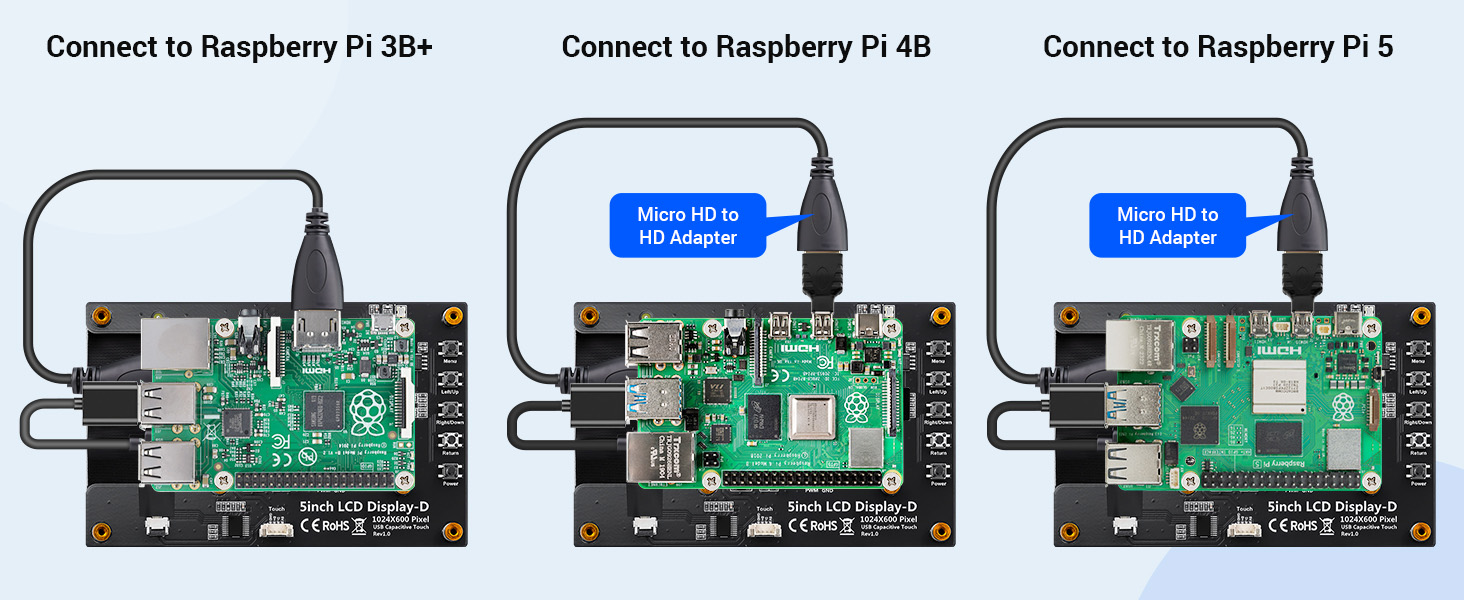

• Integrated Mounting Design: Rear mounting holes allow for direct attachment of Raspberry Pi boards to the display, making it perfect for compact, all-in-one embedded projects. The included acrylic stand can also be placed on a desktop.

Specification

Hardware Description

Pin Definition of the 20Pin-0.5mm-FPC Expansion Interface

 4Pin-1.25mm Touch Expansion Interface Definition

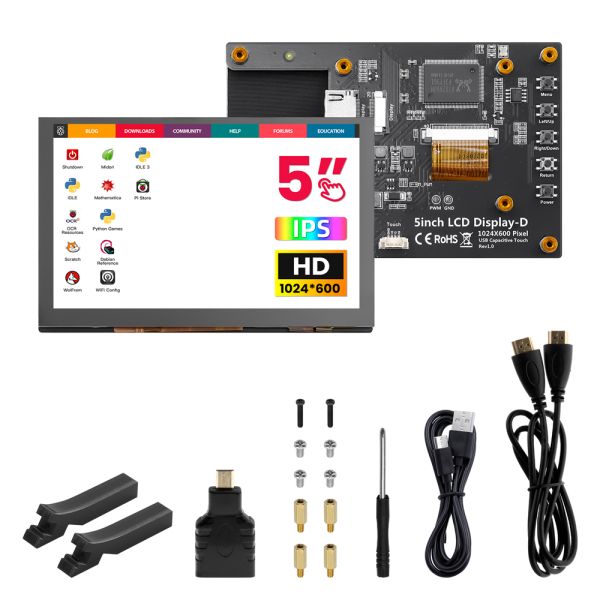

Package List

• 1x 5inch Touch Screen
• 1x HD Cable(1m)
• 1x USB-A to USB-C Cable(1m)
• 1x Micro-HD Adapter(For RPI 4B&5)
• 2x Pro Stand
• 4X RPI Screws Pack (M2.5)
• 2x Stand Screws
• 4x Copper Pillars(M2.5)

Wiki & External links

• User Manual

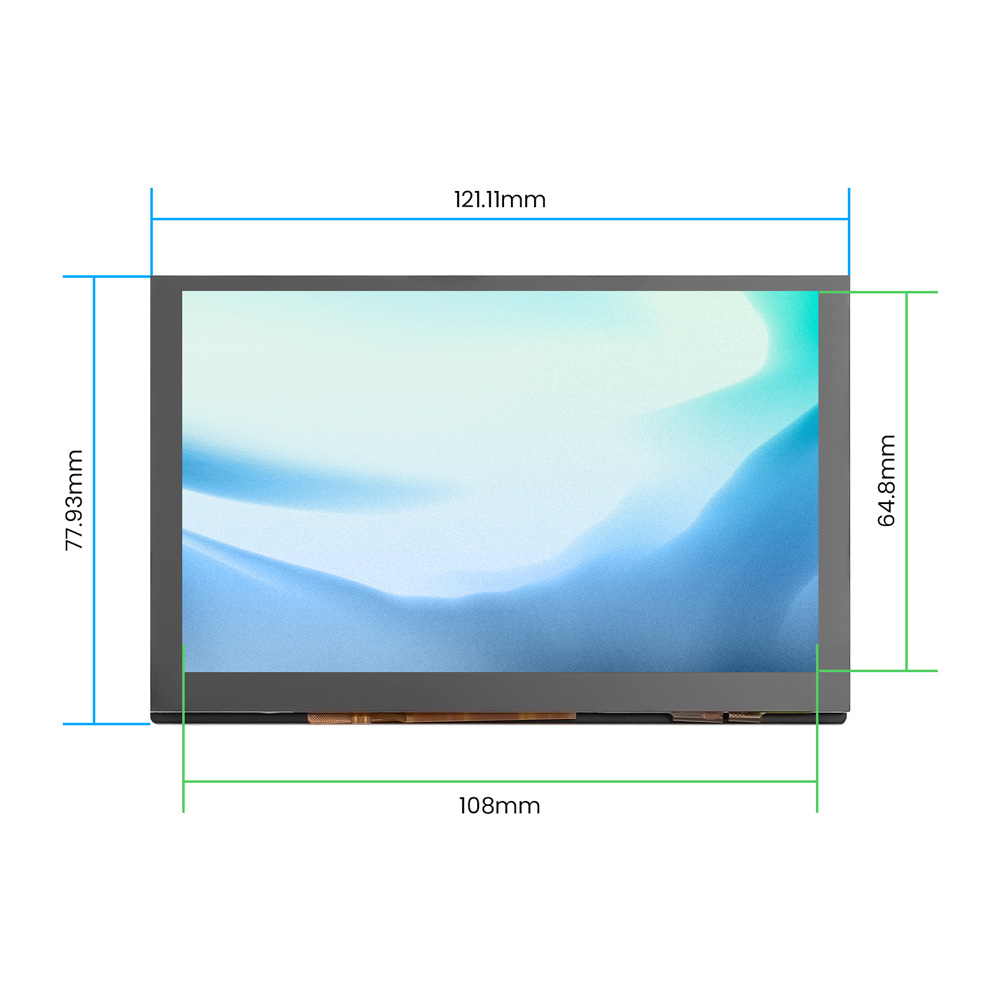

• Product Size
