Custom V1 Engineering ESP32-DevKitC

Descriptions

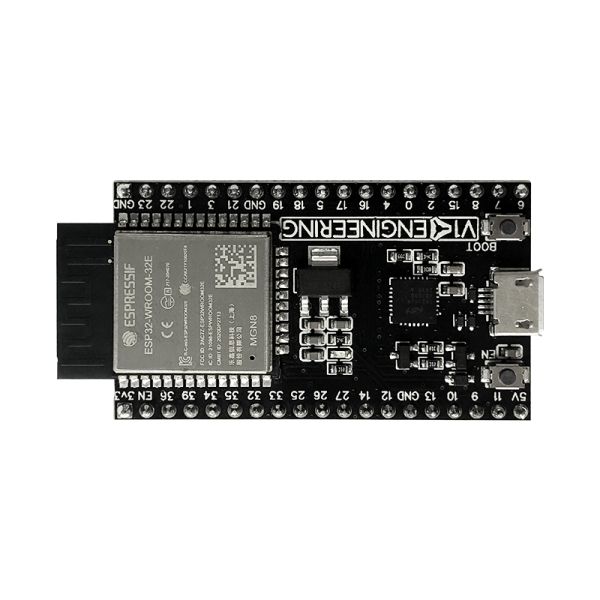

Custom V1 Engineering ESP32-DevKitC.

* This build features a genuine Espressif ESP32-Wroom-32E-N8 (8MB) module, as well as a genuine CP2102.

* Besides using the highest quality main chips, the extra USB UARTS have been broken out on the bottom of the boards for USB direct IO.

* Green LED to match the Jackpot CNC Controller.

* Micro-USB port.

To directly compare with an Espressif direct DevKitC, those have half the memory (4MB) of ours, no extra UARTS, and a boring red LED ????.

The board colors will vary.

Perfect match for the Jackpot CNC Controller, https://www.elecrow.com/jackpot-cnc-controller.html

---

Advanced - If you want to use all 8MB on the V1 Engineering version, you will need to compile your own firmware. Here are the lines to replace.

upload_speed = 921600 board_build.partitions = FluidNC/ld/esp32/app3M_spiffs1M_8MB.csv ; For 8Meg ESP32 board_upload.maximum_size = 8388608 ; For 8Meg ESP32 board_upload.flash_size = 8MB ; For 8Meg ESP32 board_build.filesystem = littlefs monitor_speed = 115200
