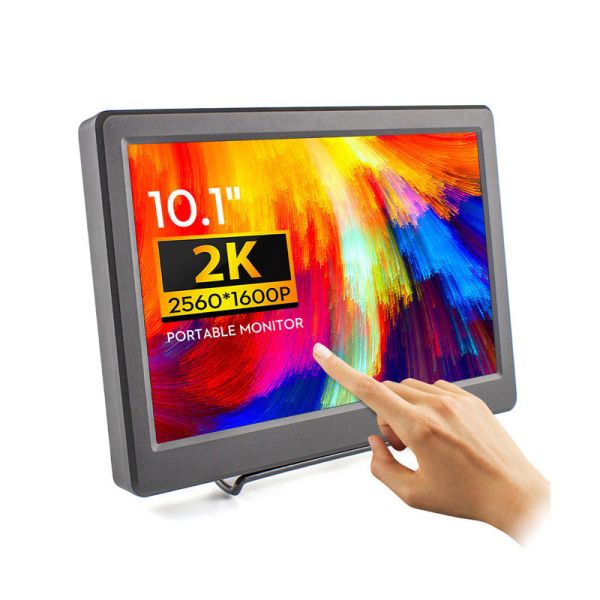

SQ101T 10.1 Inch Potable Monitor 2K IPS Touch Screen 2560x1600 Display VGA interface for Raspberry Pi PS4 XBOX Windows

Description

This 10.1-inch portable monitor supports 10-point touch, no additional driver is required, just connect the USB cable to the signal output device such as a PC/Raspberry Pi to realize the touch screen function.

This LCD touchscreen is lighter and thinner, equipped with HD/VGA interface, built-in high-quality speakers, and a 3.5mm headphone output jack.

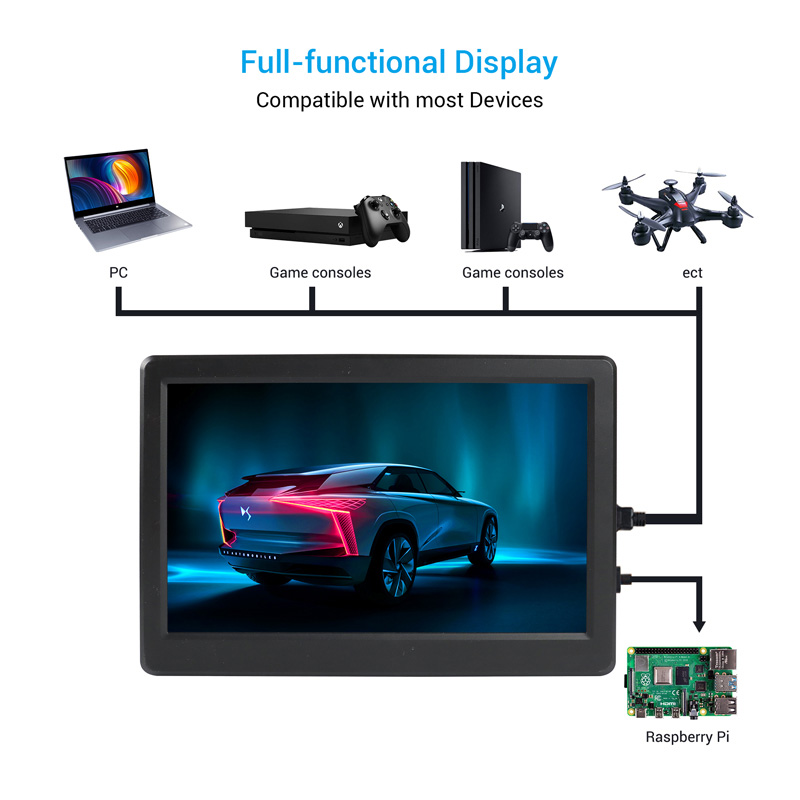

It can work with most devices with HDMI-compatible or VGA ports, compatible with Win 7 8 10 PC, Raspberry Pi 5/4/4B/3/3B, industrial equipment, and medical equipment.

OEM customization requests can be discussed for projects.

 Features

• Capacitive USB touchscreen

• Full HD 1600P IPS screen, 2560x1600 resolution

• Support multi-touch, no need to install drivers, plug and play

• Built-in dual speakers provide high-quality audio quality.

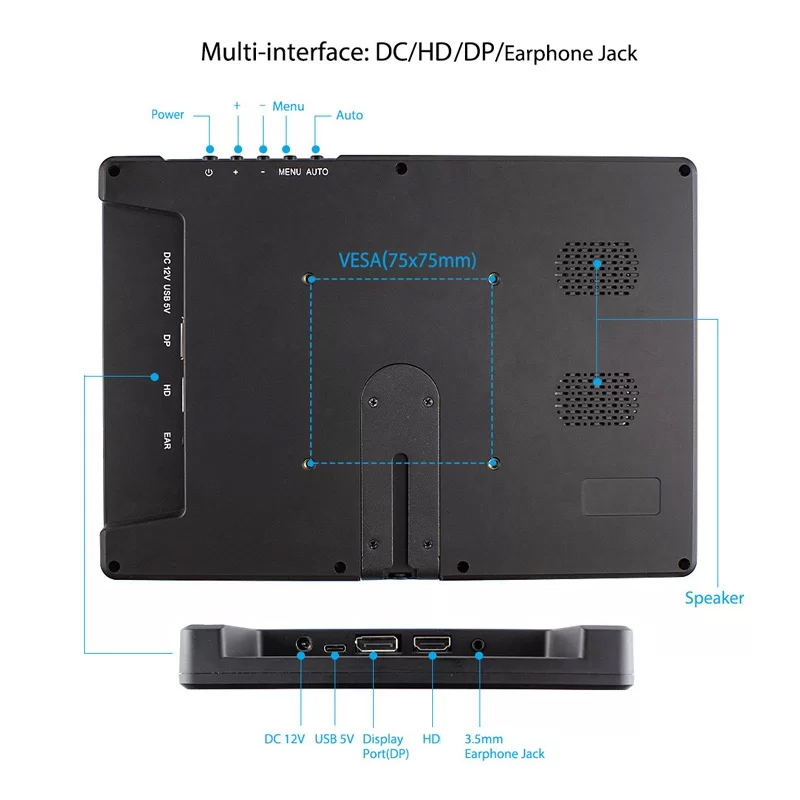

• Flexible connection to HD and VGA

• Compatible with Raspberry Pi 5/4/4B/3/3B

• VESA wall mounting holes for more flexibility in space planning.

Specifications

• Model Name: SQ101T

• Panel Size: 1 inch

• Aspect Ratio:16:10 (W:H)

• Brightness:400 cd/m²

• Contrast:1000:1(Min.)(TM)

• Resolution: 2560*1600

• Viewing angle: 80/80/80/80 (Min.)(CR≥10)

• Display Color: 7M , 72% (CIE1931)

• Vertical Frequency: 60Hz

• Display Mode: ADS, Normally Black Transmissive

• Response Time:16 (Typ.)(Tr+Td) ms

• Supported Resolutions: 2560*1600@60Hz for WQXGA mode

• Power Source: DC 12V (+/-0.6V)

• Power Consumption: Standby <1W, Power on<8W

• Dimension (WxHxD):245*175*25mm

• Screen Size:213*136mm

• Net Weight: 545g

• Package Weight: 1093g

Package list

• 1 x Monitor

• 1 x HD to HD Cable

• 1 x USB A to USB Type C Cable

• 1 x Power Supply

• 1 x Metal Stand

• 1 x User Manual
