HackberryPi_CM5_Q10
⚠️ Note: This product comes without RaspberryPi CM5! You need to buy the CM5 and assemble yourself!
⚠️ Note: It's recommended to buy the CM5 lite(without EMMC) version because the EMMC version has no pinout for micro sd card and you need to flash the OS into the CM5 with another adapter board!!!
⚠️ Please read the documentation carefully before you buy this product:
Overview of HackberryPi_CM5 with Q10 keyboard:
- Overall dimensions: 143.5x91.8x17.6mm
- Weight: 306 Gramm(with battery,cm5 and heat sink)
- Upper and lower case made of aluminium
- Middle part 3d printed
Mainfeatures:
| SBC | RaspberryPi CM5, quad core Cortex-A76 (ARMv8) 64-bit SoC @ 2.4GHz. |
| Dual Speakers | Connect with the speakers via bluetooth, driverless between differen OS |
| 2242 NVME Slot | Connect SSD or AI card on the device |
| RTC battery | CR927 on board(shipped with the device) |
| Metall body | Front and backplate made of aluminium, middle part 3d printed |
| Display | 720*720 resolution with multitouch function |
| USB Ports | 2 x USB3.0 Ports |
| Full sized HDMI Port | There is 1 full size HDMI port on board, no more adapter!!!!! |
| Battery Type | 5000 mah battery on board |
| Battery Life | Approximately 5 hours idle time, 3-4 hours depending on the task. |
| Battery Voltage Measure | There is a chip on board to measure real time battery voltage |
| Magnet at the back plate | Compaticable with magsafe ecosystem |
| Keyboard Mouse Combo | Trackpad as mouse, you can choose Q10, Q20, 9900 or 9983 keyboard |
| Fully customizable keymap | Each key can be remapped through VIAL app |
| Charging Ampere | 1.5-2A Charging rate, takes approximately 3 hours to fully charge |
| Stemma I2C Port | There is an stemma qt port on board to connect with I2C sensors |

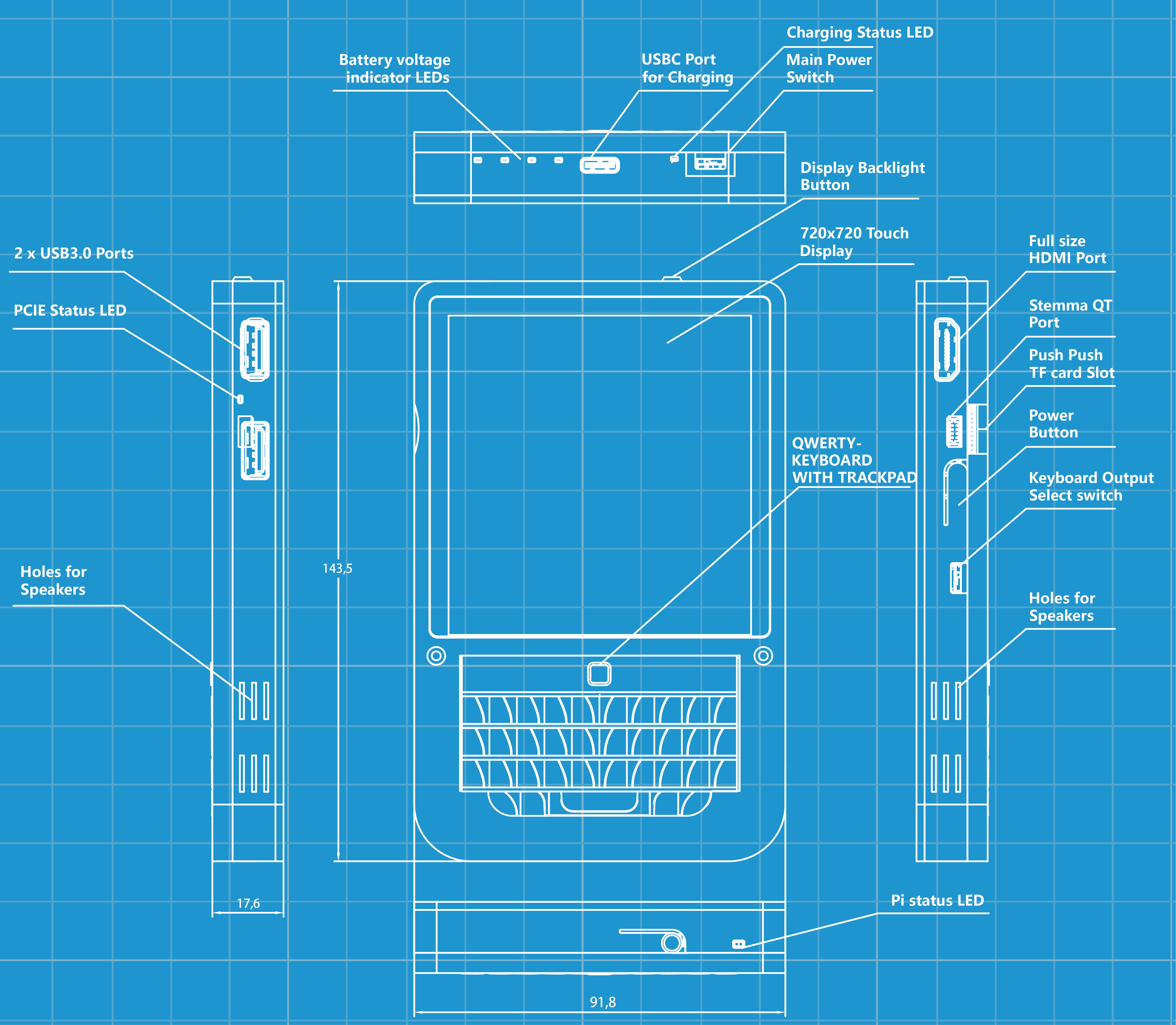

Blueprint of HackberryPi_CM5:
The keyboard in the picture below is Q20 keyboard

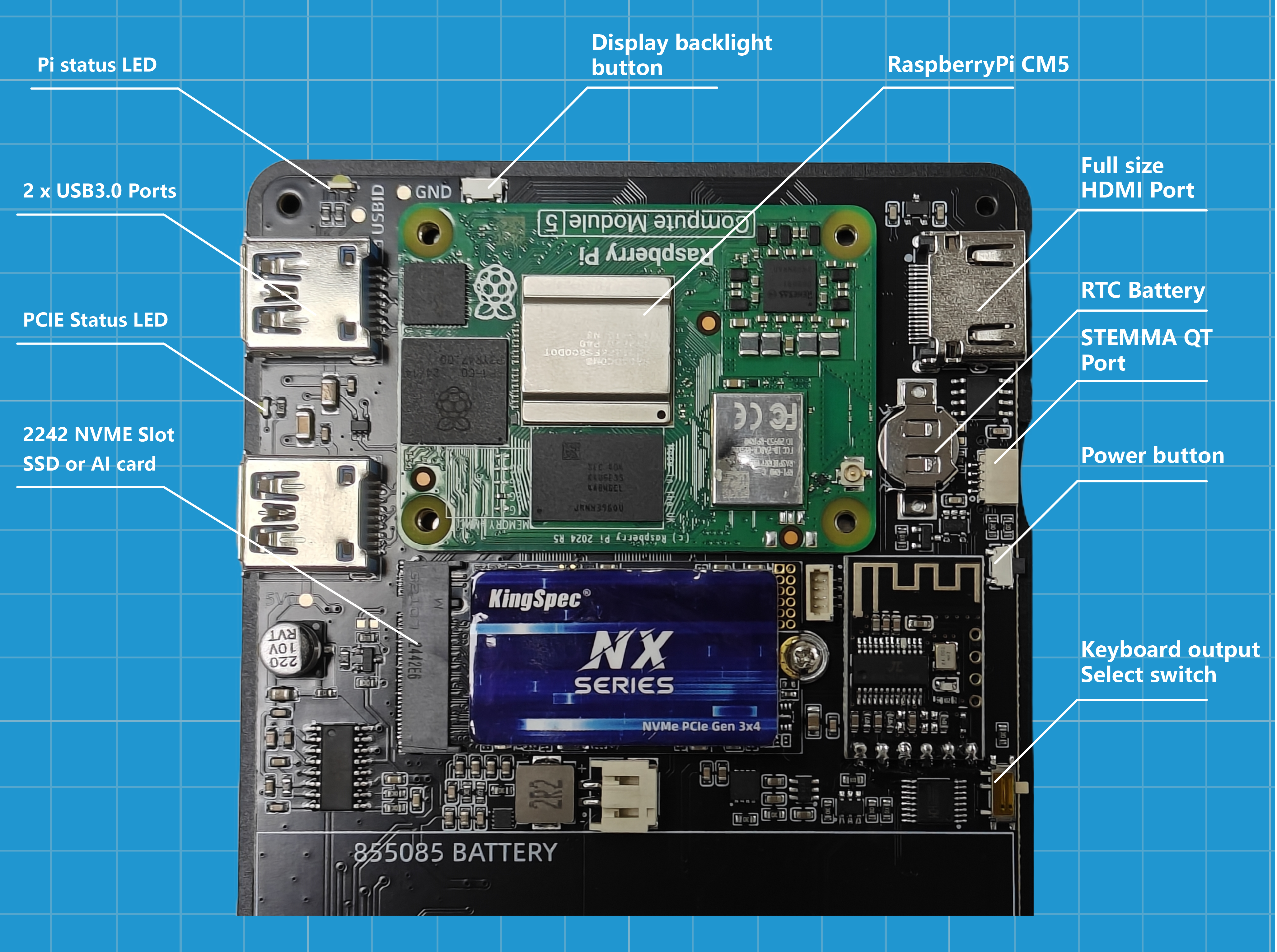

And this is how it looks like inside the device:
There are some other accessories that you might be interested in:
- Phone stand for HackberryPi_CM5: A perfect phone stand with magnet ecosystem to type easily on HackberryPi
- SSD for HackberryPi_CM5: Boot on SSD and make the device fly
- USB 3.0 micro sd card reader for HackberryPi_CM5: Easily to clone your image into the SSD
- USB A to C adapter for HackberryPi_CM5: Create an USB C female port on HackberryPi
- USBhub for HackberryPi_CM5: add external interfaces for HackberryPi
- External FPC antenna for HackberryPi_CM5: Enhance the Wifi performance of CM5
What you get:
- HackberryPi_CM5 without CM5(5000 mah battery included)
- Heatsink for HackberryPi_CM5
- Screwdrivers needed for HackberryPi_CM5
- Travel case for HackberryPi_CM5
- A 32 GB tf card with 64-bit RaspberryPi OS pre-installed
- A mysterious sticker
