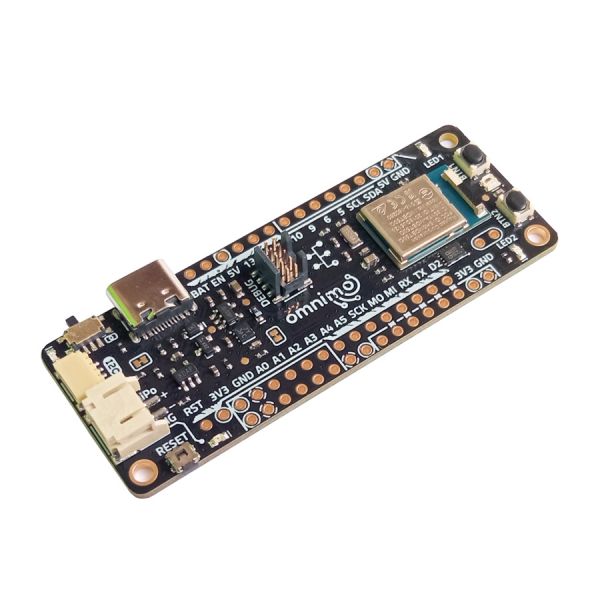

Omnimo nRF52840

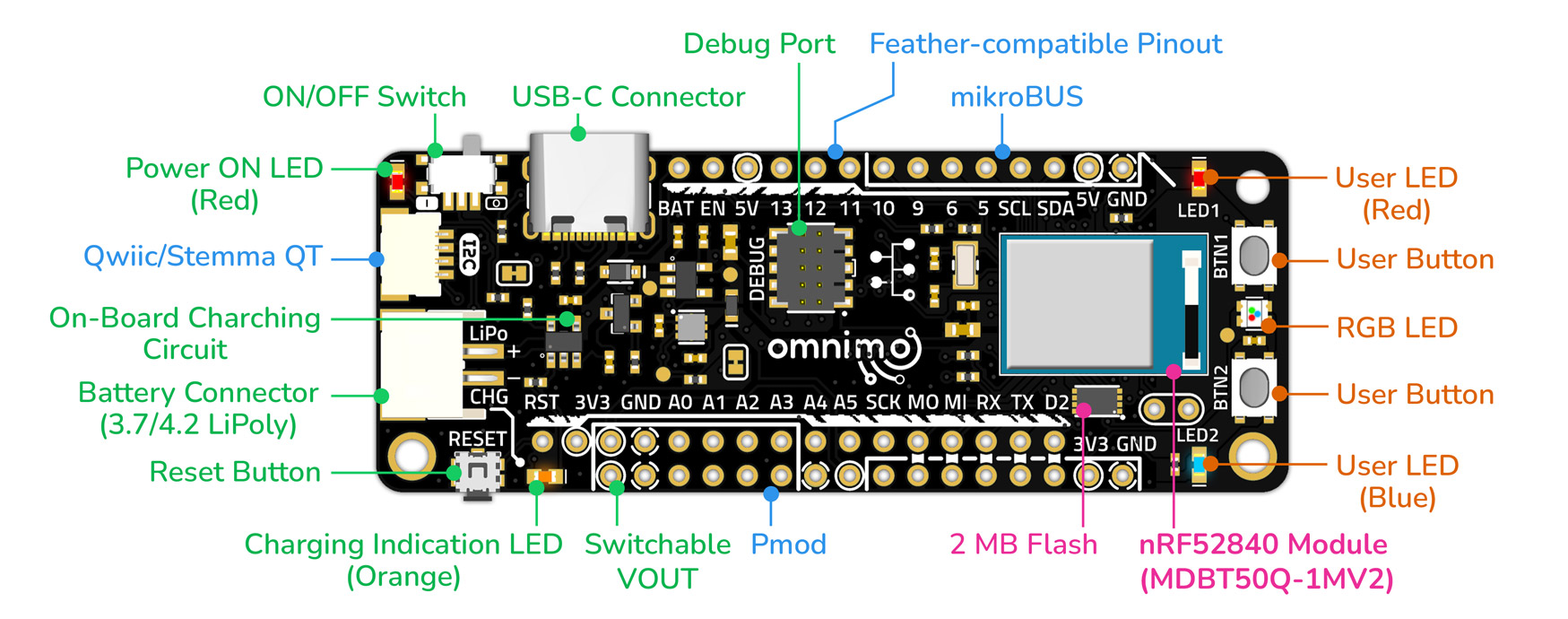

Features

Based on Nordic Semiconductor's nRF52840 (MDBT50Q-1MV2)

• Multi-protocol: Bluetooth LE, Bluetooth Mesh, Thread, Zigbee, ANT, NFC, and 2.4 GHz proprietary protocols
• 1 MB Flash and 256KB RAM
• Interfaces: SPI, UART, I2C, I2S and USB
• 12-bit, 200 KSPS ADC - 8 channels
• 4 PWM channels

Interfaces

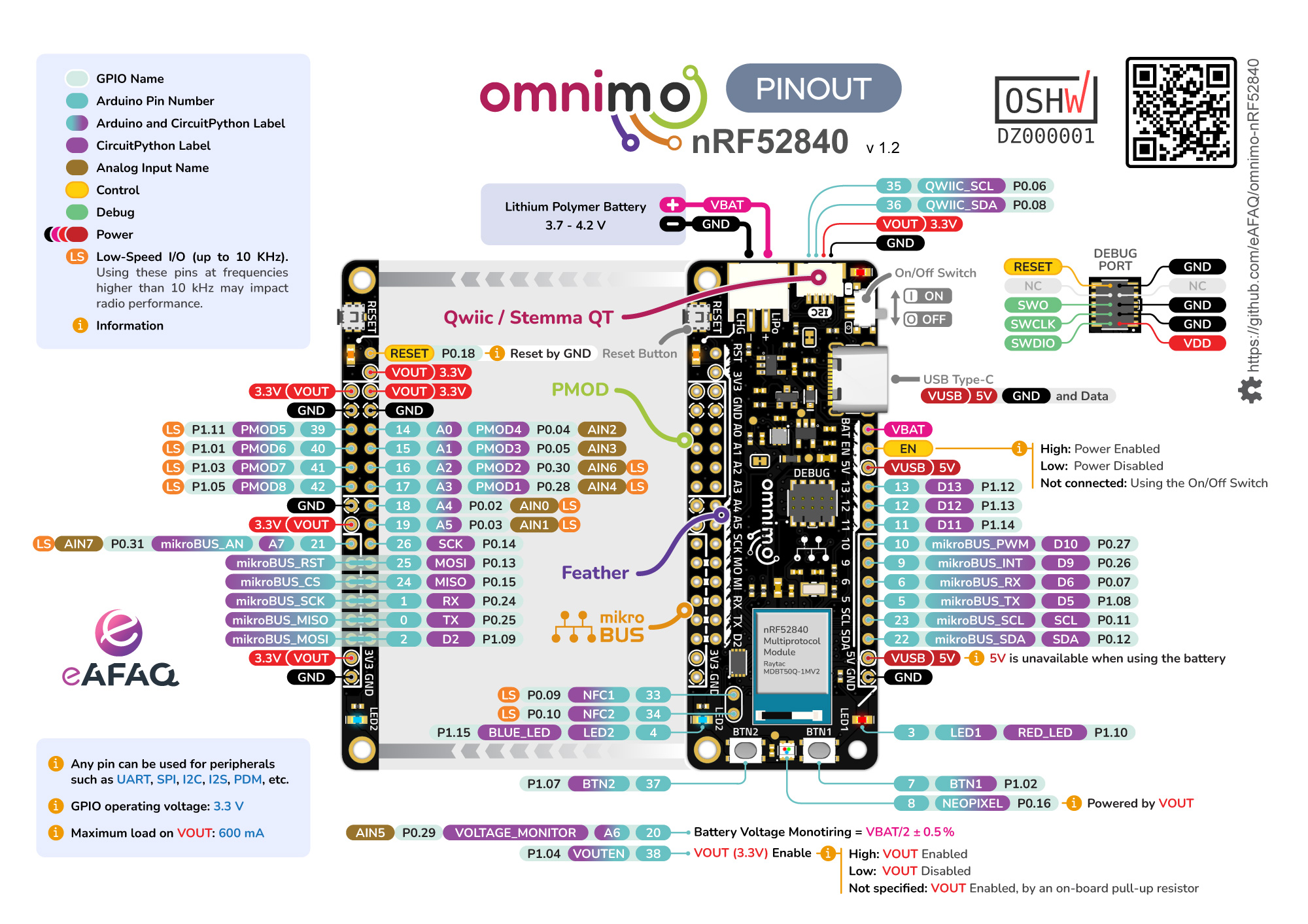

• 26 GPIO pins
• Feather-compatible layout
• mikroBUS
• Pmod
• Qwiic/Stemma QT
• Three programming options: USB, SWD debug connector, or OTA

Power

• Battery connector to connect 3.7-4.2 V Lithium-polymer battery
• Switchable output voltage to turn off modules when not in use

Buttons and Indicators

• Side on/off switch
• 2 user-programmable LEDs, 1 NeoPixel RGB LED
• 2 user-programmable buttons
• Side reset button

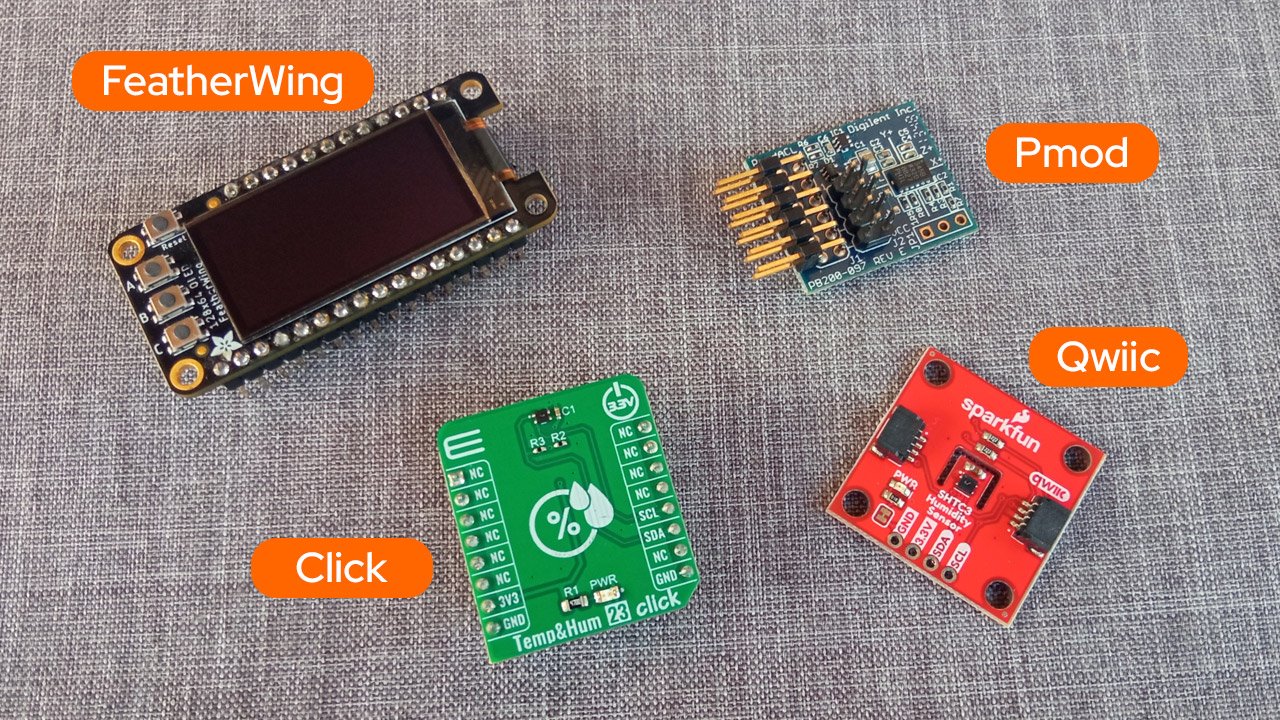

Extensive Add-on Support

Multiple programming tool support

Documentation

Omnimo nRF52840 is a fully open-source project. Find the source files and documentation at: https://github.com/eAFAQ/omnimo-nRF52840
