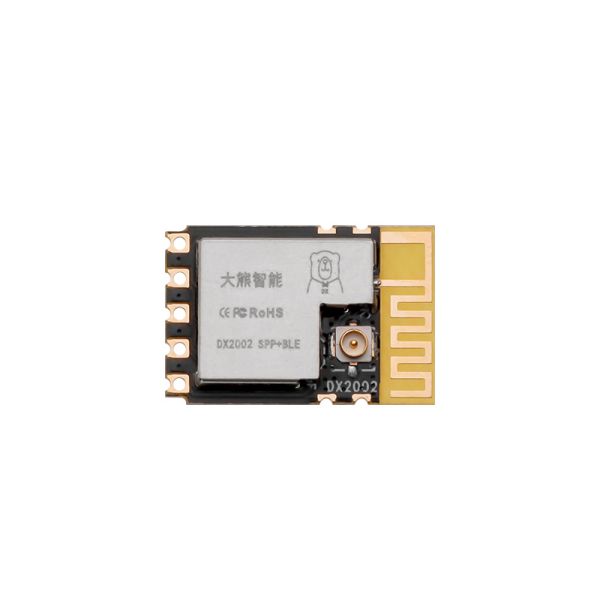

Bluetooth-compatible Dual-Mode SPP3.0+BLE5.1BMS Wireless Serial Data Receiving Module

Description

The DX2002 Bluetooth-compatible module is specially designed for intelligent wireless data transmission. It is equipped with 256Kb space and follows the V5.1 BLE specification. Support AT commands, users can change serial port baud rate, device name, and other parameters according to needs, flexible use. This module supports the UART interface and Bluetooth-compatible serial port transparent transmission. It has the advantages of low cost, small size, low power consumption, and high sensitivity for sending and receiving. It only needs a few peripheral components to realize its powerful functions.

Pin Description

Feature

• Compatible with Bluetooth-compatible 5.1, low power consumption, small size dual-mode Bluetooth-compatible module
• Support AT commands can be modified according to needs, flexible use
• Support UART interface, and support Bluetooth-compatible serial port transparent transmission, low cost, powerful function, realize short-distance wireless transmission
• Applied to non-inductive switches, personal care, medical equipment, sensors, charging equipment, etc.

Specifications

• Bluetooth-compatible Protocol: Bluetooth-compatible Specification V5.1 BLE
• Working frequency: 2.4Ghz ISM band
• Communication Interface: UART
• Power supply: 3.3V
• Antenna: PCB onboard antenna
• Communication distance: 80M (open environment)
• Dimensions: 19.6*13*2.2mm
• Bluetooth-compatible certification: FCC, CE, ROHS, REACH
• Serial parameters: 115200,8 data bits, 1 stop bit, no parity, no flow control
• Operating temperature: -20~70℃

Package List

• 1xWireless Serial Data Receiving Module

Wiki&External links

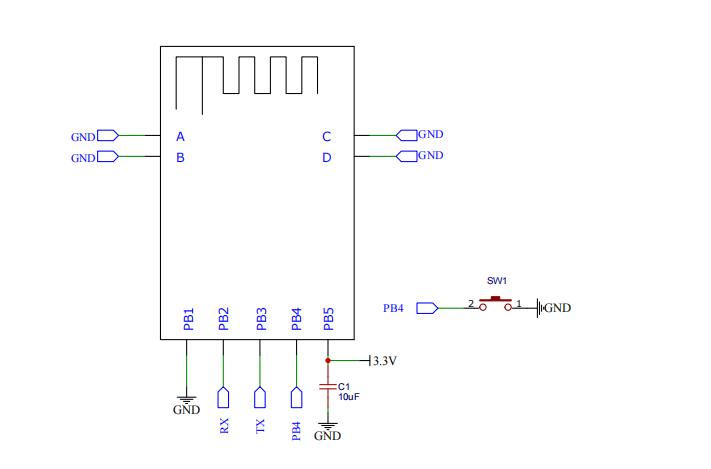

• Schematic diagram
