Snowflake Macropad

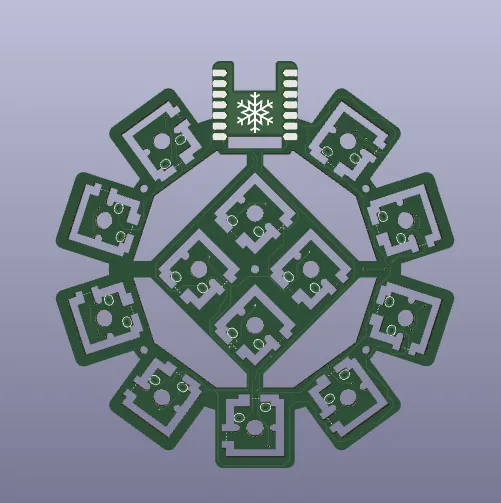

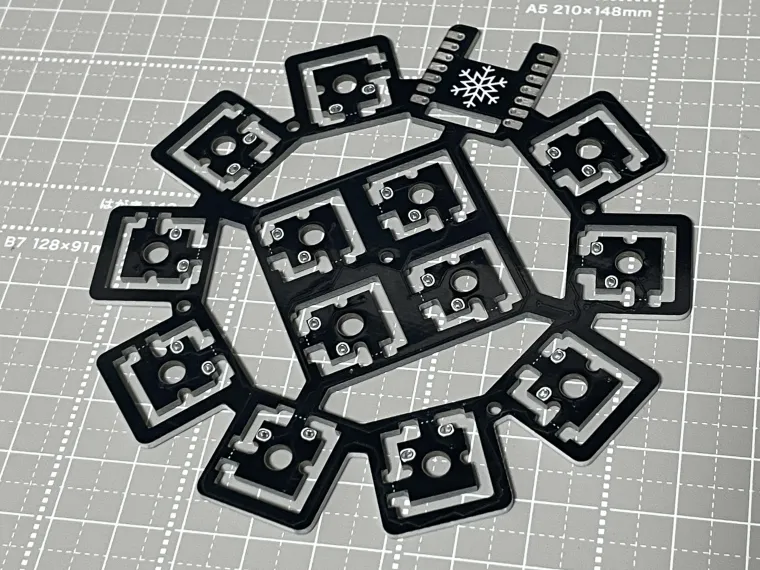

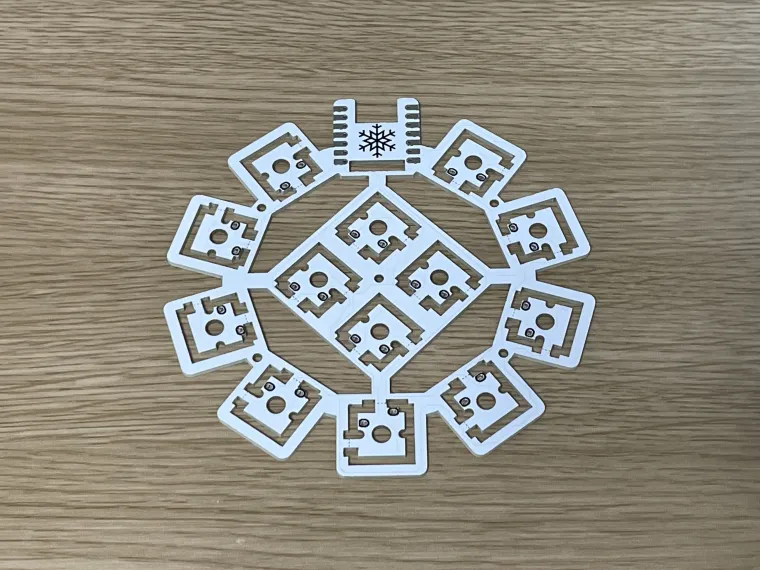

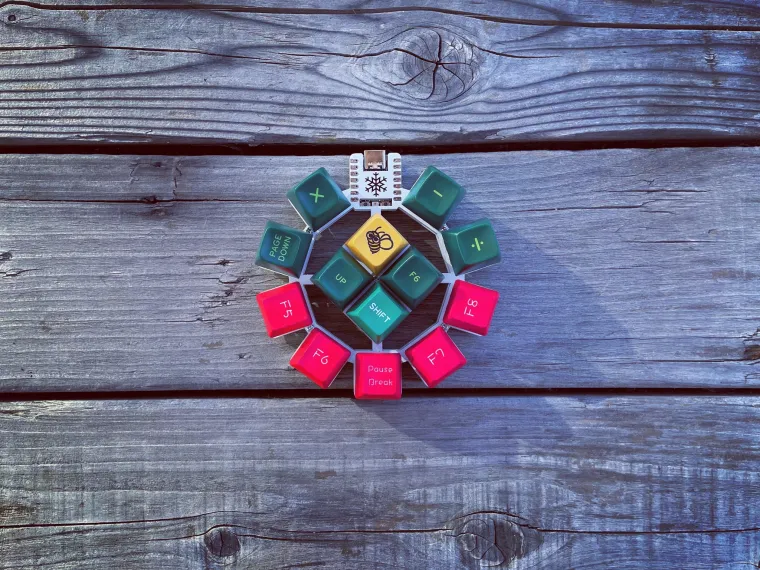

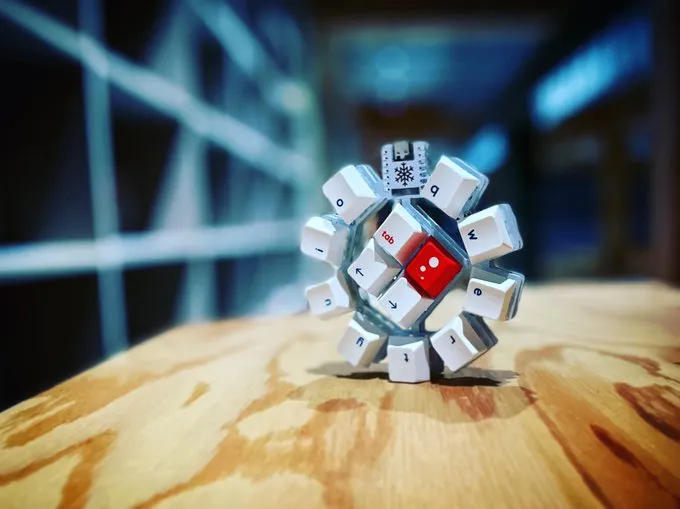

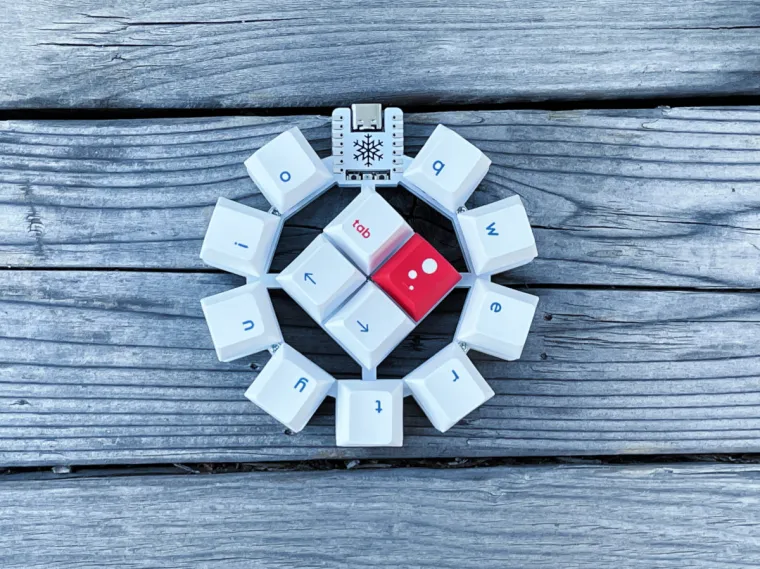

Macro pad in the shape of a snowflake. PCB can also be processed into a plate to fix the keyswitch. The circular key layout is a rare shape not found in other macro pads. Slim design so that the keys look good. Enjoy the design and feel that you cannot experience with any other keyboard. --- 雪の結晶の形をしたマクロパッド。 PCBはキースイッチを固定するプレートにも加工できます。 円形のキー配列は他のマクロパッドでは見られない希少な形状です。 キーが映えるようにスリムなデザインにしました。 他のキーボードでは体験できないデザインと使用感をお楽しみください。

Snowflake Macropad

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

Schematic and Layout

  • How to build.

    https://github.com/takashicompany/snowflake
