Phobri64

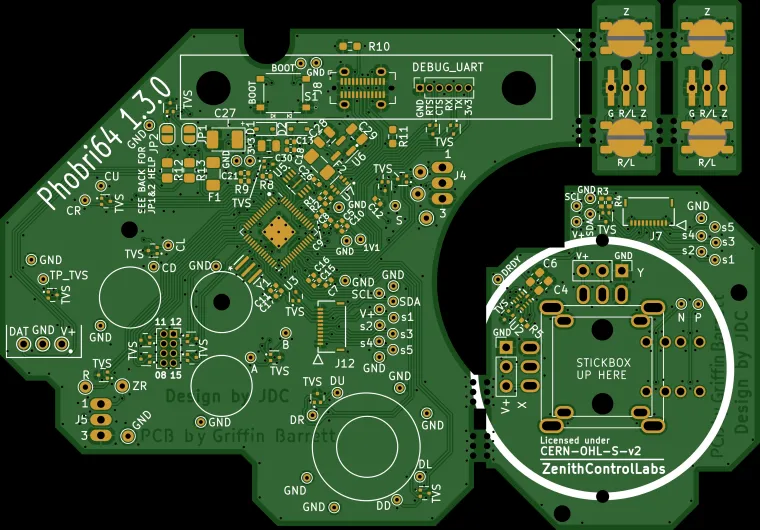

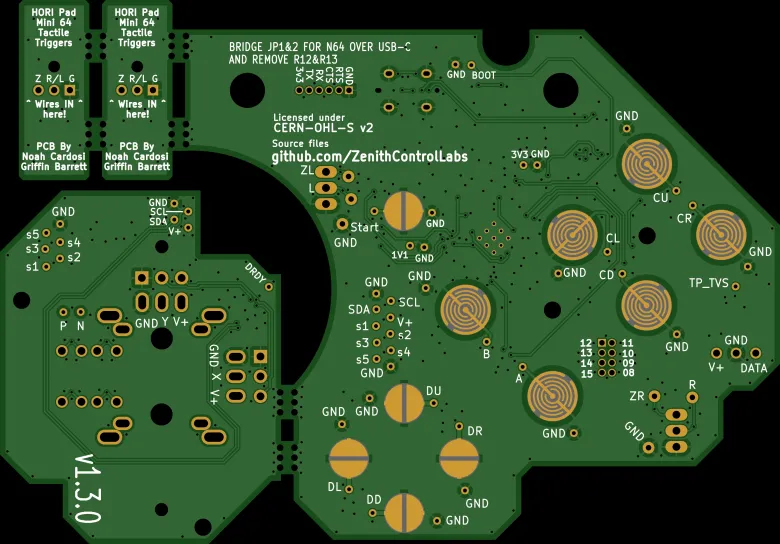

A replacement PCB for Hori Pad Mini controllers supporting software calibration & Hall Effect sensors.

Phobri64

  • thumbnail-img
  • thumbnail-img


Hardware Components

  • CC0402JRX7R8BB104

    X 12 fenxiang
  • CL10B104JB8NNNC

    X 1 fenxiang
  • CL10B224KB8NNNC

    X 1 fenxiang
  • CL21B105KBFNNNE

    X 2 fenxiang
  • CL05A105KA5NQNC

    X 2 fenxiang
  • GRM21BR61H106KE43L

    X 1 fenxiang
  • TAJB476K010RNJ

    X 1 fenxiang
  • CUS10S30,H3F

    X 2 fenxiang
  • nSMD050-33V

    X 2 fenxiang
  • B3B-EH-A(LF)(SN)

    X 1 fenxiang
  • 5034801000

    X 2 fenxiang
  • 24PLT-H10.5

    X 1 fenxiang
  • 0805W8F0000T5E

    X 2 fenxiang
  • RC0402FR-0727RL

    X 2 fenxiang
  • PTFR0402B1K00P9

    X 5 fenxiang
  • 0603WAF5101T5E

    X 2 fenxiang
  • TS-1187A-B-A-B

    XKB
    X 1 fenxiang
  • SZUESD3.3DT5G

    X 20 fenxiang
  • ADS7142IRUGR

    X 1 fenxiang
  • MCP1700T-3302E/TT

    X 1 fenxiang
  • RP2040

    X 1 fenxiang
  • USBLC6-2P6

    X 1
  • W25Q16JVUXIQ

    X 1 fenxiang
  • CSTNE12M0GH5L000R0

    X 1 fenxiang

Tools, APP Software Used etc.

  • Kicad

Story



Phobri64 is a custom PCB aiming to bring software calibration and configurability to Hori Pad Mini 64 controllers, à la PhobGCC. It is compatible with Hall effect sensors, through compatibility with the existing modules available for DualSense controllers.

Read More



Discord

Code
  • https://github.com/ZenithControlLabs/Zenith_FW
    View
Schematic and Layout
  • https://github.com/ZenithControlLabs/Phobri64_HW
    View
