ThinkNode M3 Tracker Card - LoRaWAN Tracker with GPS, WiFi Scan & BLE Beacon for Location Tracking
As low as
$39.90
Availability:
In stock
Only %1 left
SKU
ILM13803D
Brand
elecrow
Weight
140g
Related Products:
Send B2B inquiries to info@elecrow.com for bulk order.
[LoRaWAN Tracker] Integrated LoRa and GPS modules, providing positioning functions, and can also monitor key data such as ambient temperature, humidity, and acceleration.
[GPS Positioning] Built-in high-sensitivity GPS module, supports GPS/GLONASS/GALILEO/BDS positioning systems, with one-click search function.
[Magnetic Charging Design] The message is sent once every minute and can work for up to 18 hours.
[Mini Size] Small size, easy to carry, suitable for a variety of usage scenarios
Note: This version does not support Meshtastic firmware. If you need to use Meshtastic functionality, please click to purchase the Meshtastic version.
Frequently Bought Together
Meteor Screen 10.1" IPS Capacitive Touch Screen with RGB Animated light
was
$89.90
Special Price
$70.12

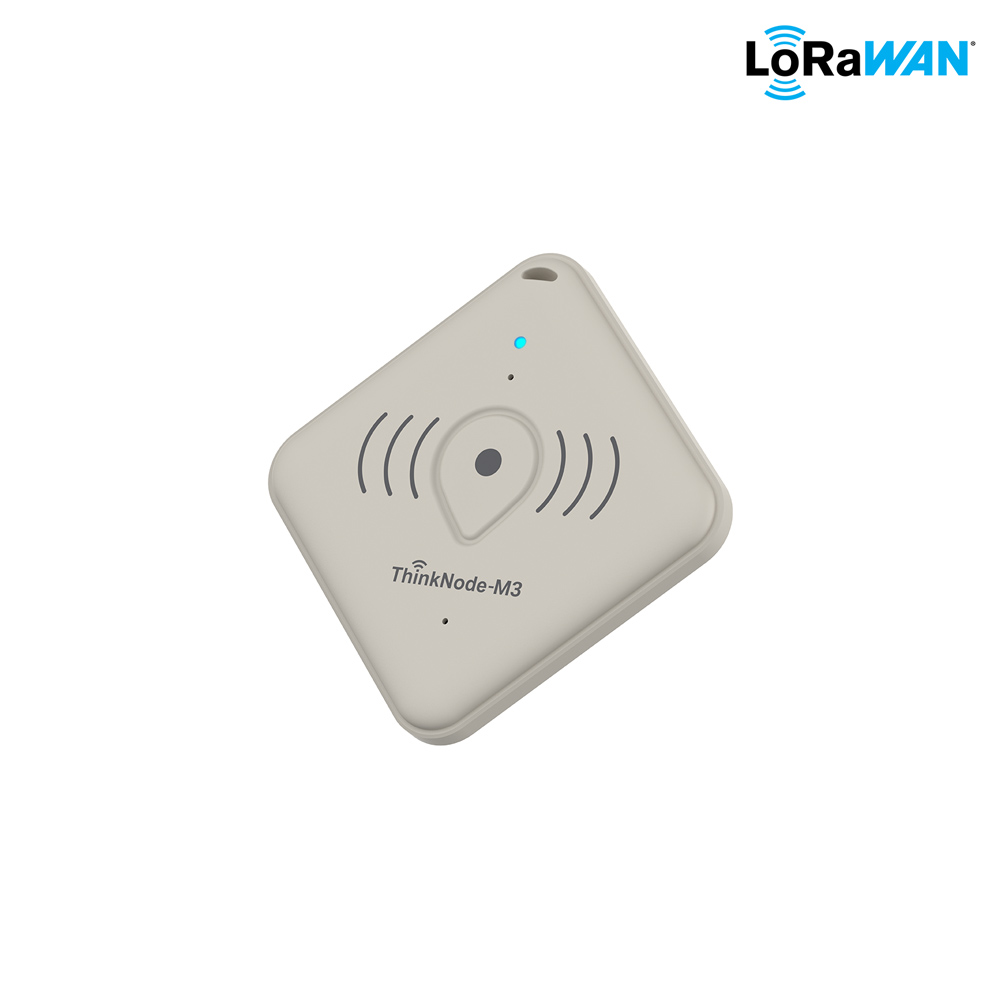

ThinkNode-M3 LoRaWAN GPS Tracker - High-precision Positioning Device
The ThinkNode M3 LoRaWAN Tracker is a compact, low-power tracking device designed for asset monitoring and location management. Powered by the LR1110 and nRF52840, it combines multi-GNSS positioning, Wi-Fi scanning, and BLE beacon detection to support indoor and outdoor tracking applications. Its compact 64 × 64 × 10mm design makes it easy to carry or install on various assets.
Designed for flexible deployment, the ThinkNode M3 features a detachable mounting base with adhesive and screw installation options, allowing convenient attachment to vehicles, equipment cases, and other assets. Through a compatible LoRaWAN network and the ThinkNode management platform, users can monitor device locations, configure tracking settings, and access tracking records. When network connectivity is temporarily unavailable, the device can store location data and upload it after reconnecting.
The ThinkNode M3 also features built-in temperature, humidity, and accelerometer sensors for additional environmental and movement monitoring. With multiple operating modes, configurable reporting intervals, magnetic charging, and up to 18 hours of battery life under specified conditions, it offers a flexible tracking solution. Its IP66-rated enclosure provides dust and water-jet protection, making it suitable for equipment management, warehouse operations, and outdoor asset tracking.
Jump to: #Feature, #Specification, #Documents.
Note: Wi-Fi and Bluetooth only support Wi-Fi scanning and Bluetooth beacons.
Note: This version does not support Meshtastic firmware. If you need to use Meshtastic functionality, please click to purchase the Meshtastic version.
Designed and manufactured by Elecrow, customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com.
Feature
- ✅LoRaWAN GPS Tracker: Combines GNSS positioning, Wi-Fi scanning, and BLE beacon detection for indoor and outdoor location tracking.
- ✅Multiple Operating Modes: Supports standby, normal, and trigger modes to accommodate different tracking requirements.
- ✅Multi-Technology Positioning: Combines GNSS, Wi-Fi scanning, and BLE beacon detection to support location tracking across indoor and outdoor environments.
- ✅One-click search function: If the tracker is lost, a one-click search function is provided to help quickly locate the device.
- ✅Real-time location: Ensure real-time updates and high accuracy of location information.
- ✅Built-in sensors: Including temperature, humidity, and accelerometer sensors, providing environmental monitoring functions.
- ✅Customized sensor thresholds: You can set sensor thresholds as needed, and the device will automatically alarm when out of range.
- ✅Reporting time setting: You can set the time interval for data reporting as needed.
- ✅Flexible Mounting Design: Features a detachable mounting base with adhesive and screw installation options, making it easy to attach to vehicles, equipment, and other assets.
- ✅Smart Tracking Management: Supports device configuration, location monitoring, and tracking management through the ThinkNode web platform.
- ✅Offline Data Storage: Stores location data when LoRaWAN connectivity is unavailable and uploads the stored records once the device reconnects to the network.
- ✅Magnetic Charging & Battery Life: Features convenient magnetic charging and provides up to 18 hours of operation under specified reporting conditions.
- ✅IP66-Rated Protection: Dust-tight and resistant to powerful water jets, making it suitable for demanding indoor and outdoor applications.
Location function: Supports GPS, GLONASS, GALILEO, and BDS
ThinkNode M3 leverages BLE and Wi-Fi for precise positioning, and GNSS technology (including GPS, BDS, Galileo, and GLONASS) for accurate outdoor tracking.
Beyond Positioning
Integrated temperature, humidity and vibration sensors to capture cargo status in real time
Magnetic Charging Design & 770mAh
The message is sent once every minute and can work for up to 18 hours.
Backend Management
Supports configuration, device monitoring, and parameter adjustment. Access here: https://web.thinknode.cc.
Multiple Applications
Hardware OverView
Specification
|
Main control IC |
nRF52840 |
|
LoRa Chip |
LR1110 |
|
LORA Frequency |
EU868/US915 |
|
Sensitivity requirement |
-140 dBm or above |
|
Maximum transmission power |
+20 dBm |
|
Transmission rate range |
1.76~62.5Kbps |
|
LoRa frequency range |
860MHz-960MHz |
|
Communication distance |
5–6 km |
|
Bluetooth |
Bluetooth 5.0 |
|
GNSS Location |
Support GPS/GLONASS/GALILEO/BDS |
|
GNSS Sensitivity |
-148dBm (cold start) -156dBm (hot start) -160dBm (recapture) -162dBm (tracking) |
|
GNSS Positioning accuracy |
<1.5m（CEP50） |
|
Sensors |
Temperature Sensor, Humidity Sensor, Accelerometer |
|
Indicator |
Tri-color LED Indicator (Red/Green/Blue) |
|
Button |
Power On/Off and SOS Trigger |
|
Battery Capacity |
770mAh, lithium battery |
|
IP Rating |
IP66 |
|
Operating temperature |
-20℃-+60℃ |
|
Charging method |
Magnetic charging |
|
Antenna |
Internal onboard antenna (GNSS/LORA/WIFI/BLE) |
|
Power Supply |
5V DC |
|
Size |
L/W/H: 64x64x10 (mm) Fixed Base: 68x68x10.2 (mm) |
|
Material |
PC+ABS |
|
Certificate |
CE / FCC |
|
Net Weight |
40g |
Why Choose Us?
As an industry-leading equipment manufacturer, we rely on our independently developed core technology and the production strength of our own factory to ensure that every product has precise quality control from design to manufacturing, and is both reliable and innovative. We provide online customer service support to answer your questions at any time, making the whole process worry-free. At the same time, we provide customized solutions to accurately meet your personalized needs. Choosing Elecrow means choosing safety, efficiency and professionalism.
Package List
- 1x ThinkNode M3
- 1x Charging Cable
- 1x Fixed Base and Sticker
- 2x Expansion screws
- 1x Lanyard
- 1x User Manual
